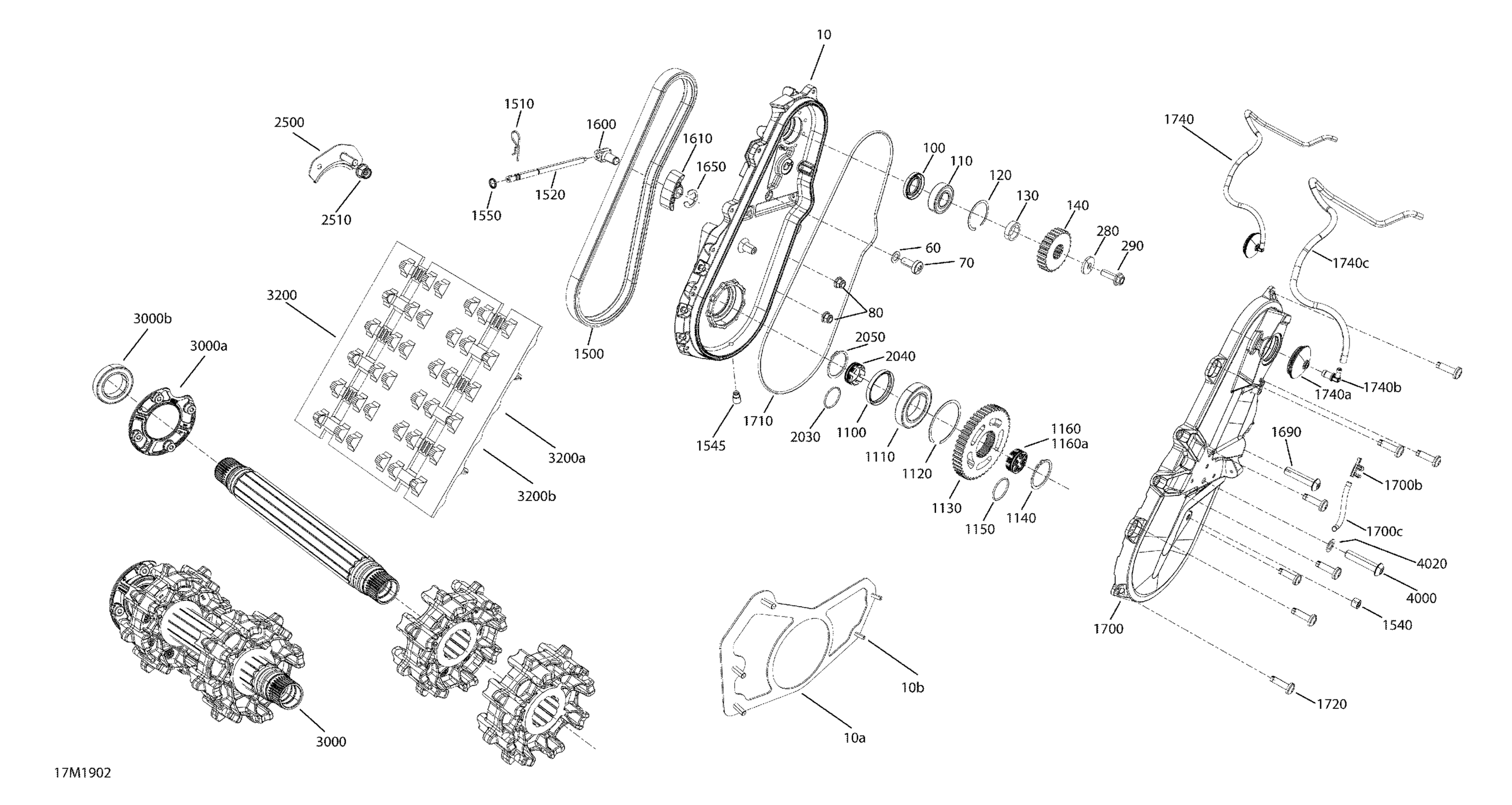

Ski-Doo GRAND TOURING 600R E-TEC, 2019 Drive Diagram

#

Description
Price

10

Chaincase Ass'y

504153718

$321.51

10a

Kit Plate Ass'y

861805514

$73.05

10b

Flange Elastic Nut M6

233261434

$3.61

60

Washer

504082900

$2.58

70

Torx Screw M8 X 20, Scotch Grip

250000740

$2.09

80

Flange Elastic Nut M6

233261434

$3.61

100

Oil Seal

293200168

$13.65

110

Ball Bearing

293350115

$11.15

120

Circlip

504152576

$8.71

130

Shim

504152628

$8.40

140

Sprocket 23 Teeth

504153911

$42.28

280

Spring Washer M10

504152784

$6.26

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

1100

Oil Seal

293200159

$13.12

1110

Ball Bearing

293350059

$30.74

1120

Circlip

504152582

$8.71

1130

Kit Sprocket This part replaces 504152593.

861805538

$153.05

1140

Circlip

504152572

$6.26

1150

O-Ring

293300201

$0.98

1160

Magnetic Cap Ass'y | Includes 1160 to 1160a

504153696

$26.12

1160a

Magnetic Cap

504153697

$2.09

1500

Drive Chain, 108 Links

504152631

$147.66

1510

Hair Pin

414575600

$1.51

1520

Adjustment Screw

504153760

$23.82

1540

Hex. Countersunk Drain Plug

250500013

$6.78

1545

Magnetic Plug

504153704

Unavailable

1550

O-Ring

293300202

$0.98

1600

Tensioner

504153559

$16.12

1610

Slider Chain

504153312

$67.66

1650

Circlip

293370105

$2.06

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.66

1700

Chain Case Cover Ass'y | Includes 1700 to 1700c

504153891

$179.97

1700b

Clip Connector

515178223

$1.63

1700c

Braided Sleeve

415130141

$56.12

1710

O Ring

293300214

$11.52

1720

Torx T-30 Pan HD Taptite M6X20

250001012

$0.46

1740

Cap Ass'y | Includes 1740 to 1740c

504153535

Unavailable

1740a

Cap

504152860

$19.20

1740b

Male Connector

414580700

$3.38

1740c

Polyurethane Hose 10000Mm Long

219704410

$46.12

2030

O-Ring

293300201

$0.98

2040

Magnetic Cap

504153697

$2.09

2050

Circlip

504152572

$6.26

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$18.43

2510

Hex. Flange Elastic Nut M8

233281414

$1.14

3000

Axle Drive Ass'y | Includes 3000 to 3000b

504153838

$415.35

3000a

Retaining Ring

504153886

$18.43

3000b

Ball Bearing

293350059

$30.74

3200

Track Ass'Y 15X137X1.2 | Includes 3200 to 3200b

504152905

$929.99

3200a

Track Guide | Track Width 16''

415129528

$3.12

3200b

Cleat

504152651

$8.22

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.66

4020

Washer

504082900

$2.58
