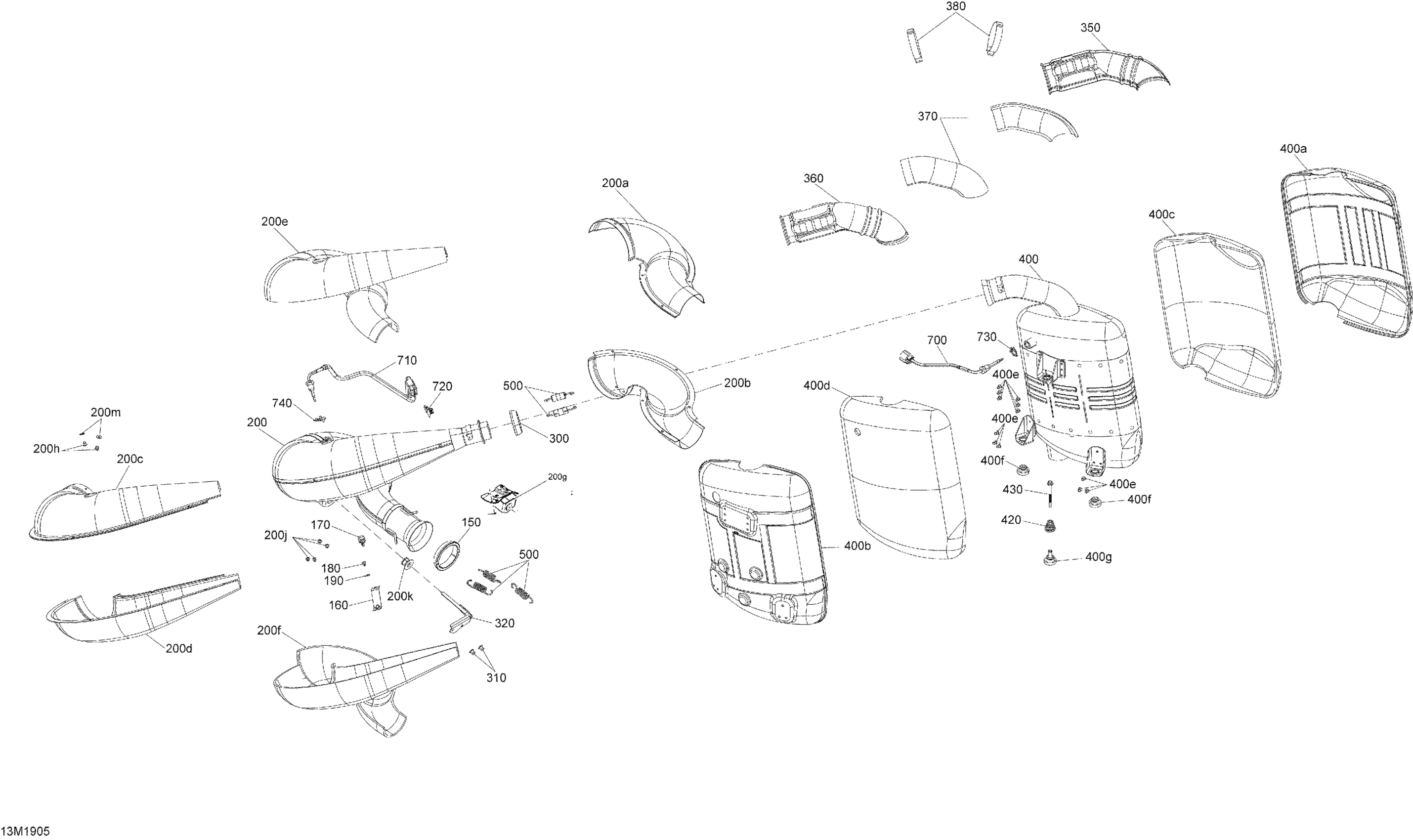

Ski-Doo 001 - GRAND TOURING 600R E-TEC, 2019 01- Exhaust Diagram

Description

Price

150

Exhaust Gasket

514053487

$26.49

200

Pipe_Tuned

514056275

$762.99

200a

Front Upper Aluminum Shell

514055222

$39.99

200b

Front Lower Aluminum Shell

514055223

$40.99

200c

Upper Rear Shell

514055273

$83.99

200d

Rear Lower Aluminum Shell

514055618

$82.99

200e

Insulated Wool

514055715

$20.99

200f

Wool

514055385

$20.99

200g

Support

514055316

$11.54

200h

Avex Rivet

390909200

$0.30

200j

Avex Rivet

390909200

$0.30

200k

Rubber

514055632

$2.21

200m

Washer 3/16

514055537

$1.01

300

Exhaust Gasket

514055294

$24.99

310

Hemlock Rivet, 6.5 mm

293150119

$4.29

320

Support

514055214

$11.54

350

Front Shield

514055558

$40.99

360

Rear Shield

514055559

$40.99

370

Wool

514055285

$4.59

380

Clip

514056035

$16.18

400

Muffler Ass'y | Includes 400 to 400n

514056204

$784.49

400a

RH Deflector

514055980

$58.99

400b

LH Deflector

514055707

$58.99

400c

Wool

514055201

$19.99

400d

Wool

514055752

$8.49

400f

Stopper

514055203

$20.49

400g

Stopper Ass'y

514056138

$13.22

420

Spring

514055282

$6.35

430

Hex. Flange Screw M6

250000926

$1.01

500

Spring

514055198

$6.35

700

Temperature Sensor

514055776

$149.99

730

Tab Lock

514055100

$8.45
