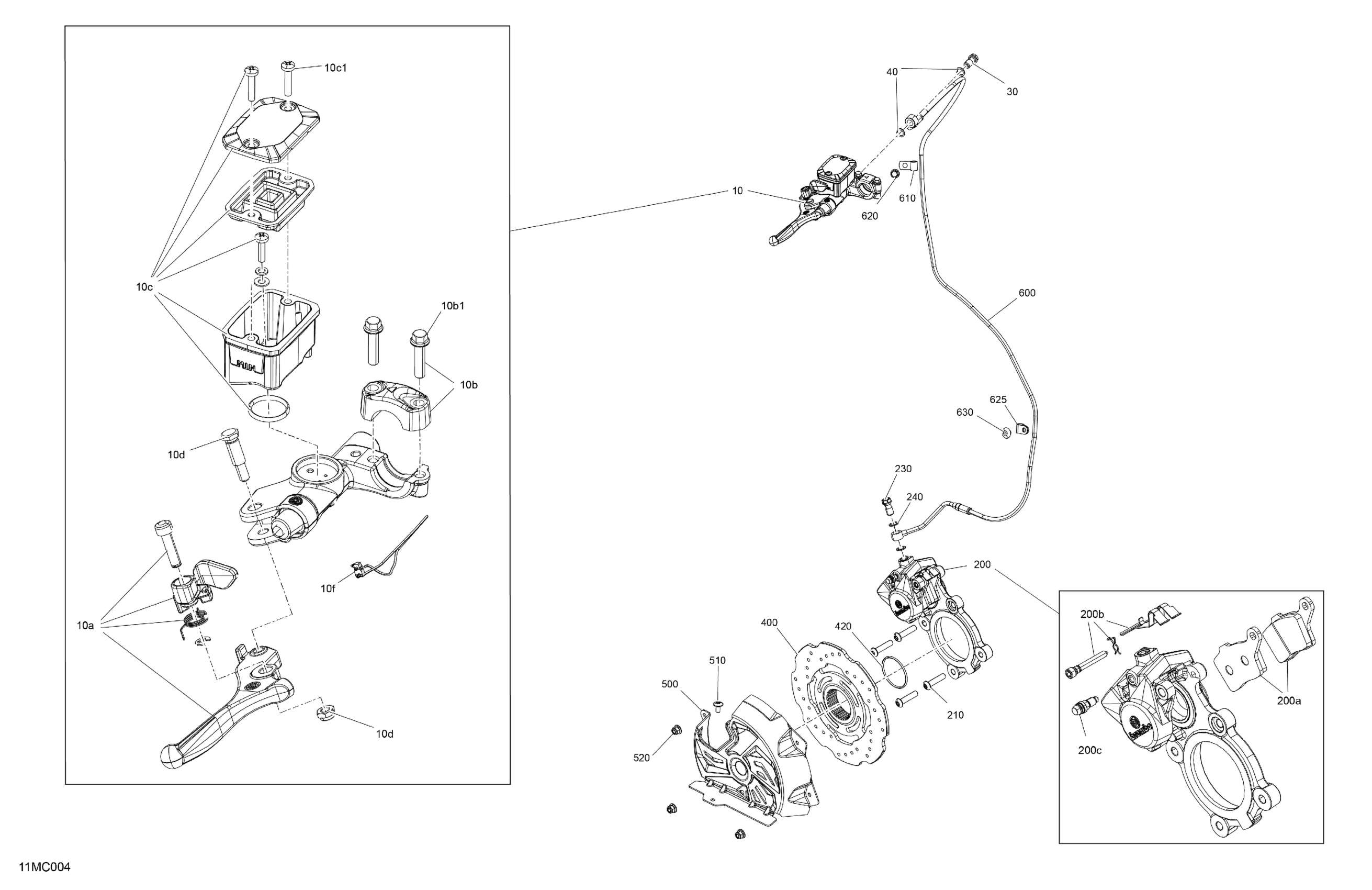

Ski-Doo 001 - GRAND TOURING 600 ACE - SPORT - North America, 2023 03- Mechanic - Brakes Diagram

Description

Price

Master Brake Cylinder | Includes 10 to 10f

507032728

$349.99

10a

Lever With Parking Lock

507032476

$99.99

10b

Clamp And Screw Kit

507032477

$23.99

10b1

Hex. Flange Screw M6 X 25

250000447

$2.11

10c

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.99

10c1

Screw M4 X 20

415129356

$2.22

10d

Pin Ass'y

415030000

$19.99

10f

Microswitch

507032601

$72.99

Banjo Bolt

507032551

$5.61

Washer

414920600

$1.90

200

Brake Caliper | Includes 200 to 200c

507032720

$349.49

200a

Brake Pads Kit

507032473

$52.99

200b

Brake Spring Kit

507032722

$37.99

200c

Bleeder

507032475

$19.99

210

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

230

Banjo Bolt

507032551

$5.61

240

Washer

414920600

$1.90

400

Disc

507032487

$185.49

420

O Ring

293300221

$1.68

500

Disk Protector

507032588

$48.99

510

Torx Head Screw M6 X 16

250000717

$2.11

520

Hex. Flange Elastic Nut M6

233261466

$2.00

600

Brake Hose

507032654

$62.49

610

Open Clamp

414108400

$3.17

620

Hex. Flange Screw M6 X 10

210261040

$1.48

625

Hose Clamp

293650257

$5.99

630

Blind Rivet 3/16

293150231

$0.32
