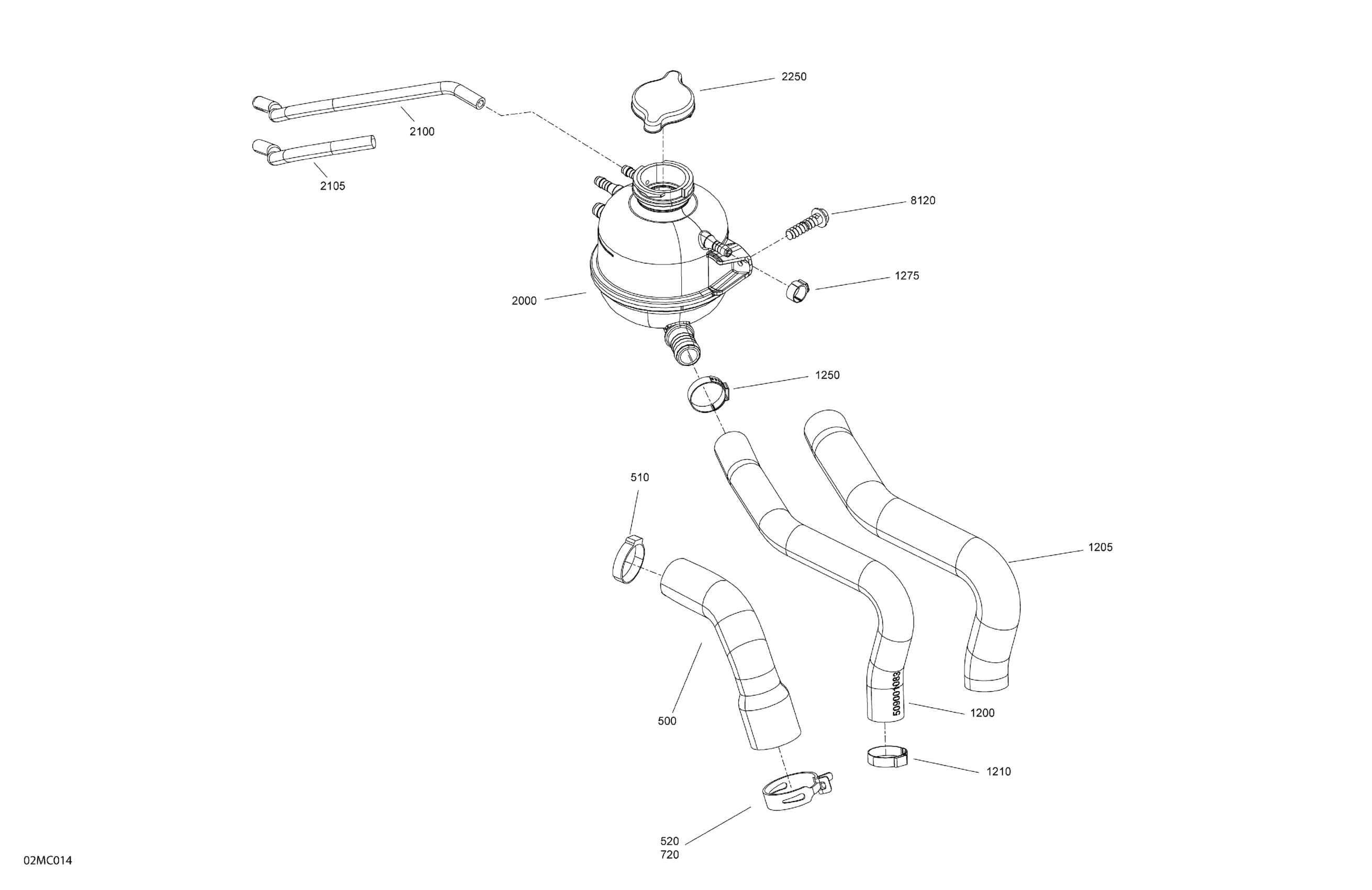

Ski-Doo GRAND TOURING 600 ACE - SPORT - 2023 Engine - Cooling Diagram

Description

Price

500

Engine Outlet Hose

509001086

$14.00

510

Oetiker Gear Clamp 36.1MM

509000045

$4.07

520

Norma Spring Clamp

293650264

$4.15

720

Norma Spring Clamp

293650264

$4.15

1200

Coolant Tank Hose

509001083

$14.90

1205

Protector Tube 32 Mm 1000Mm Long

219704421

$24.60

1210

Crimp Clamp

293650099

$4.07

1250

Oetiker Clamp

509001041

$1.87

1275

Oetiker Clamp

293650046

$2.67

2000

Cooling Tank

509001011

$83.55

2100

Hose 6 Mm 15000Mm Long

219704360

$120.12

2105

Protector Tube | Not shown

503195447

$12.21

2250

Radiator Pressure Cap

509000180

$13.42

8120

Hex. Flange Screw K50 X 20

241152060

$1.81
