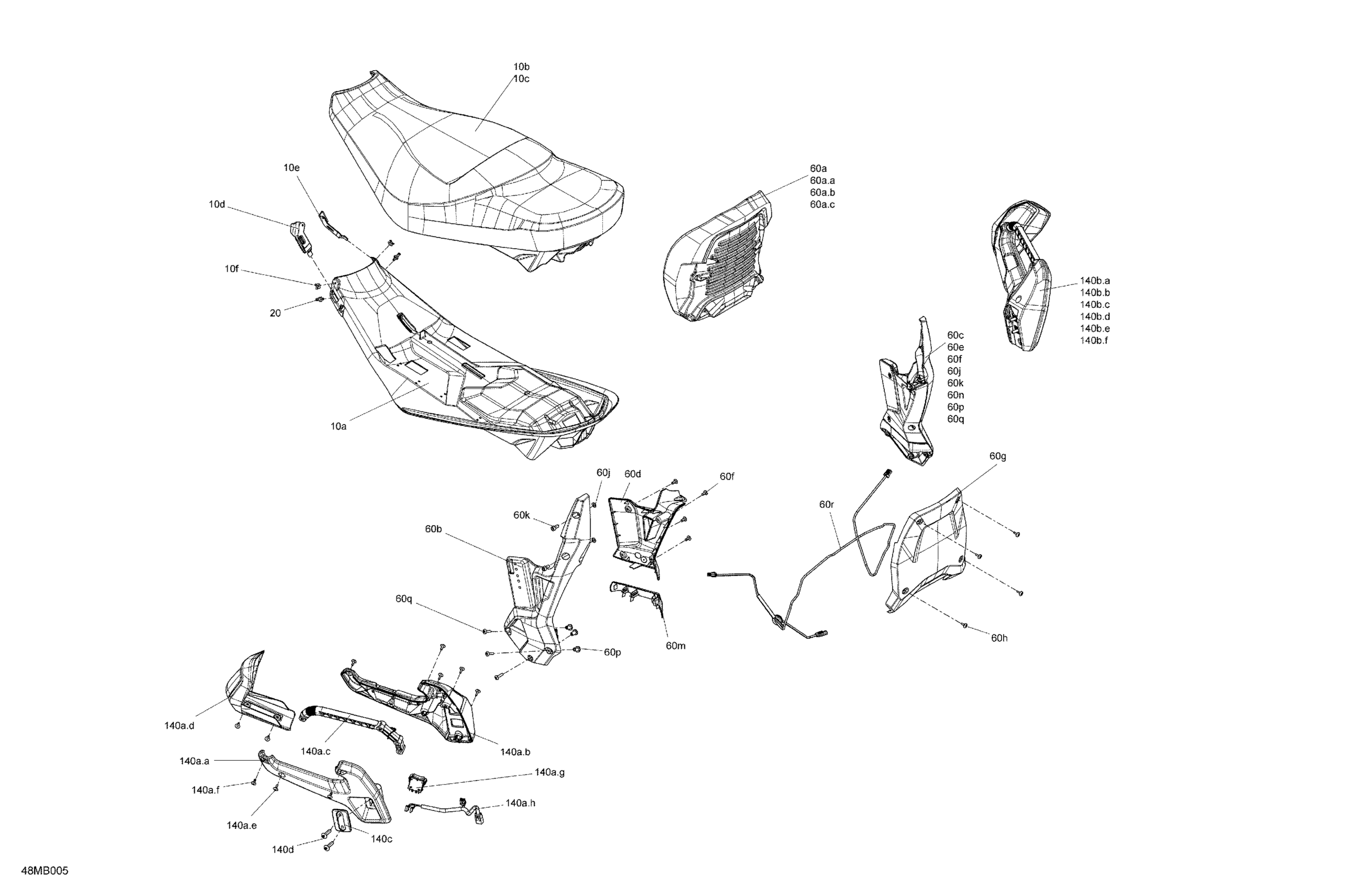

Ski-Doo GRAND TOURING 600 ACE - SPORT - 2022 Body - Seat Diagram

#

Description
Price

10a

1+1 Seat Base

510006556

$93.99

10b

Seat Foam

510006336

$214.99

10c

Seat Cover

510006337

$241.49

10d

LH Seat Latch

510006530

$7.19

10e

RH Seat Latch

510006531

$7.19

10f

Pop Rivet 3/16"

293150222

$1.29

20

Seat Pin

510007411

$6.95

60a

Passenger Backrest | Includes 60b to 60b.c

510006362

$164.99

60a.a

Backrest Foam

510006363

$219.99

60a.b

Backrest Cover

510006364

$236.49

60a.c

Backrest Support

510006777

$48.99

60b

LH Arm

510006479

$88.99

60c

RH Arm

510006480

$88.99

60d

LH Trim

510006706

$20.99

60e

RH Trim

510006705

$20.99

60f

Torx Truss M6X14

250000789

$5.39

60g

Backrest Trim

510006366

$81.99

60h

Screw M4 X 16

250000889

$3.09

60j

Flat Washer M8, Stainless

234080600

$1.48

60k

Screw-Socket HD.DIN.912

205081654

$1.90

60m

LH Base Cover

510006169

$3.91

60n

RH Base Cover

510006170

$3.91

60p

Threaded Insert

511000822

$2.09

60q

Torx-Truss M/S M6 X 25

250001000

$5.29

60r

Seat Wiring Harness

515178490

$51.99

140a.a

LH Ext. Passenger Hand Hold

510006492

$67.99

140a.b

LH Int. Passenger Hand Hold

510006527

$67.99

140a.c

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$102.99

140a.d

LH Passenger Handle Deflector

510006495

$28.99

140a.e

Screw M4 X 16

250000889

$3.09

140a.f

Torx-Truss M/S M5 X 14

250000941

$2.11

140a.g

Rocker Switch

515178505

$27.49

140a.h

Heated Grip Wiring Harness

515178464

$28.99

140b.a

RH Ext. Passenger Hand Hold

510006486

$67.99

140b.b

RH Int. Passenger Hand Hold

510006487

$67.99

140b.c

Passenger Heated Handhold | Includes 140a3 to 140a3b

510006488

$102.99

140b.d

RH Passenger Handle Deflector

510006489

$28.99

140b.e

Screw M4 X 16

250000889

$3.09

140b.f

Torx-Truss M/S M5 X 14

250000941

$2.11

140c

Passenger Handle Trim

510006602

$13.99

140d

Torx Truss M/S M8 x 35

250000753

$1.15
