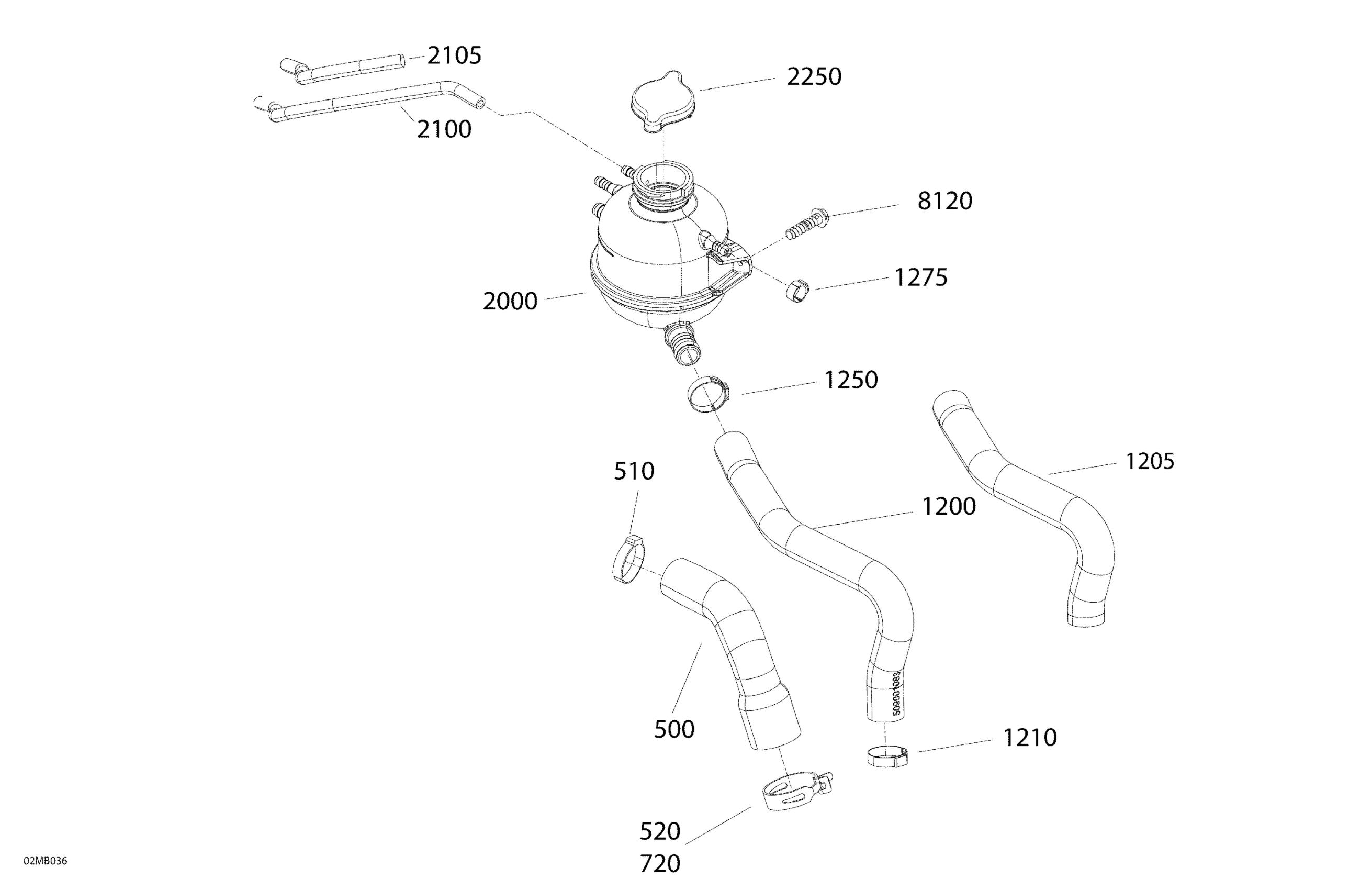

Ski-Doo GRAND TOURING 600 ACE - SPORT - 2022 Engine - Cooling Diagram

Description

Price

500

Engine Outlet Hose

509001086

$14.49

510

Oetiker Gear Clamp 36.1MM

509000045

$8.29

520

Norma Spring Clamp

293650264

$4.44

720

Norma Spring Clamp

293650264

$4.44

1200

Coolant Tank Hose

509001083

$14.49

1205

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

1210

Crimp Clamp

293650099

$4.29

1250

Oetiker Clamp

509001041

$2.09

1275

Oetiker Clamp

293650046

$2.89

2000

Cooling Tank

509001011

$91.99

2100

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

2105

Protector Tube | Not shown

503195447

$13.49

2250

Radiator Pressure Cap

509000180

$20.49

8120

Hex. Flange Screw K50 X 20

241152060

$1.99
