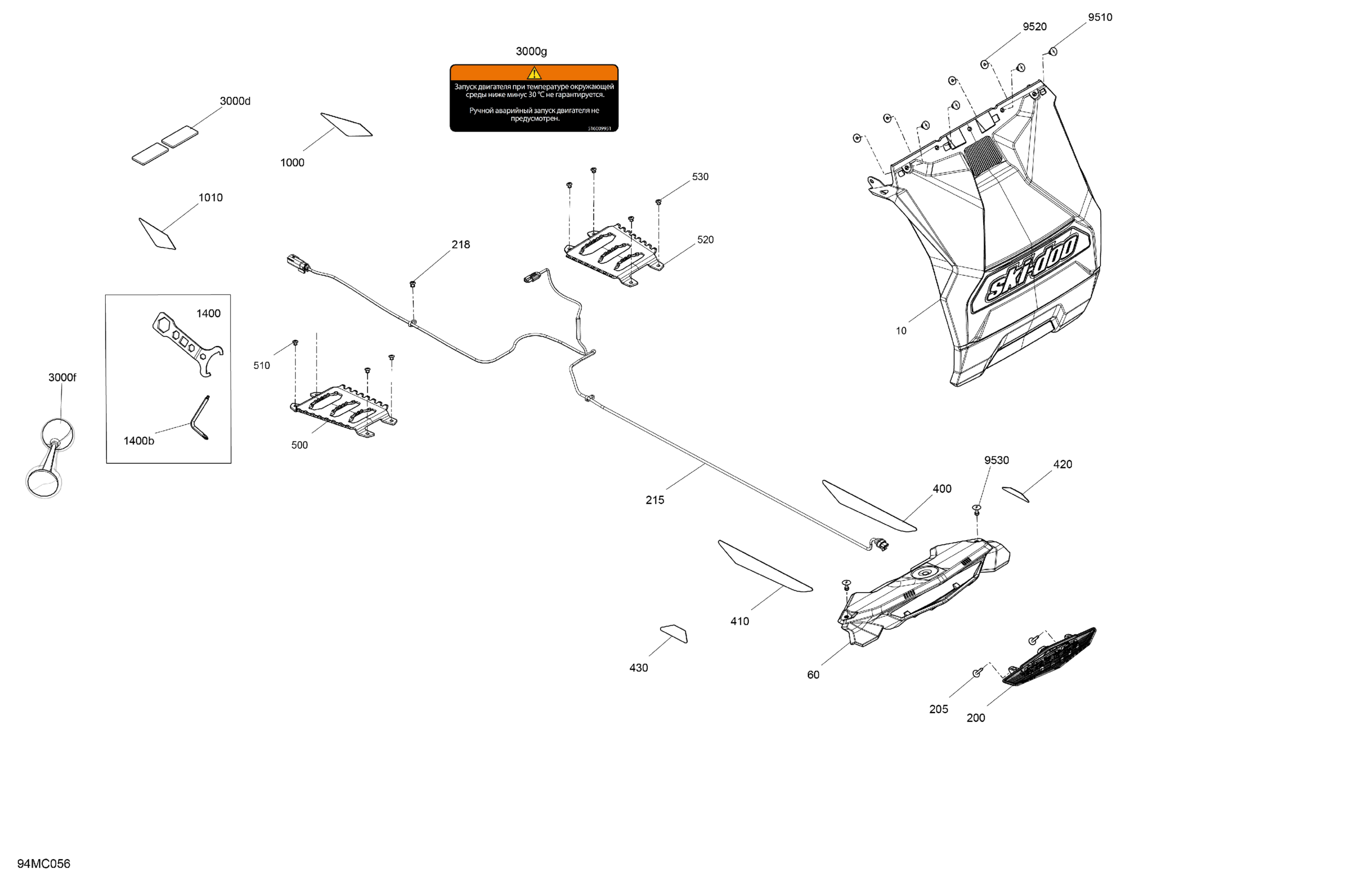

Ski-Doo GRAND TOURING 600 ACE - SPORT - Europe, 2023 Miscellaneous - Utilities Diagram

Description

Price

Snow Gard Ass'y

520001640

$120.12

Light Fairing

520001487

$18.63

200

Tail Light

520002710

$74.60

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.30

215

Taillight Wiring Harness | Includes 8000 to 8000a

515178404

$34.30

218

Pop Rivet 3/16"

390402200

$0.30

400

Yellow, LH/RH Rear Reflector Kit

861805523

$24.60

410

Yellow, LH/RH Rear Reflector Kit

861805523

$24.60

420

Amber, LH Rear Reflector

520001862

$4.51

430

Amber, LH Rear Reflector

520001861

$4.51

500

Deep Black, Passenger Footrest

520002896

$44.75

510

Rivet 3/16"

293150102

$0.69

520

Deep Black, Passenger Footrest

520002896

$44.75

530

Rivet 3/16"

293150102

$0.69

1000

RH Front Reflector

520002343

$7.72

1010

LH Front Reflector

520002344

$9.67

1400

Tool Kit | Includes 1400 to 1400b

520001767

$51.99

1400b

Key

520001815

$11.99

3000c

Red, Reflector

705015551

$8.01

3000d

Amber, Reflector

520002680

$18.63

3000f

Horn

549011291

$34.30

3000g

Warning Decal, Security

516009951

Unavailable

9510

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

9520

Washer

517124300

$0.18

9530

Pop Rivet 3/16"

293150100

$1.04
