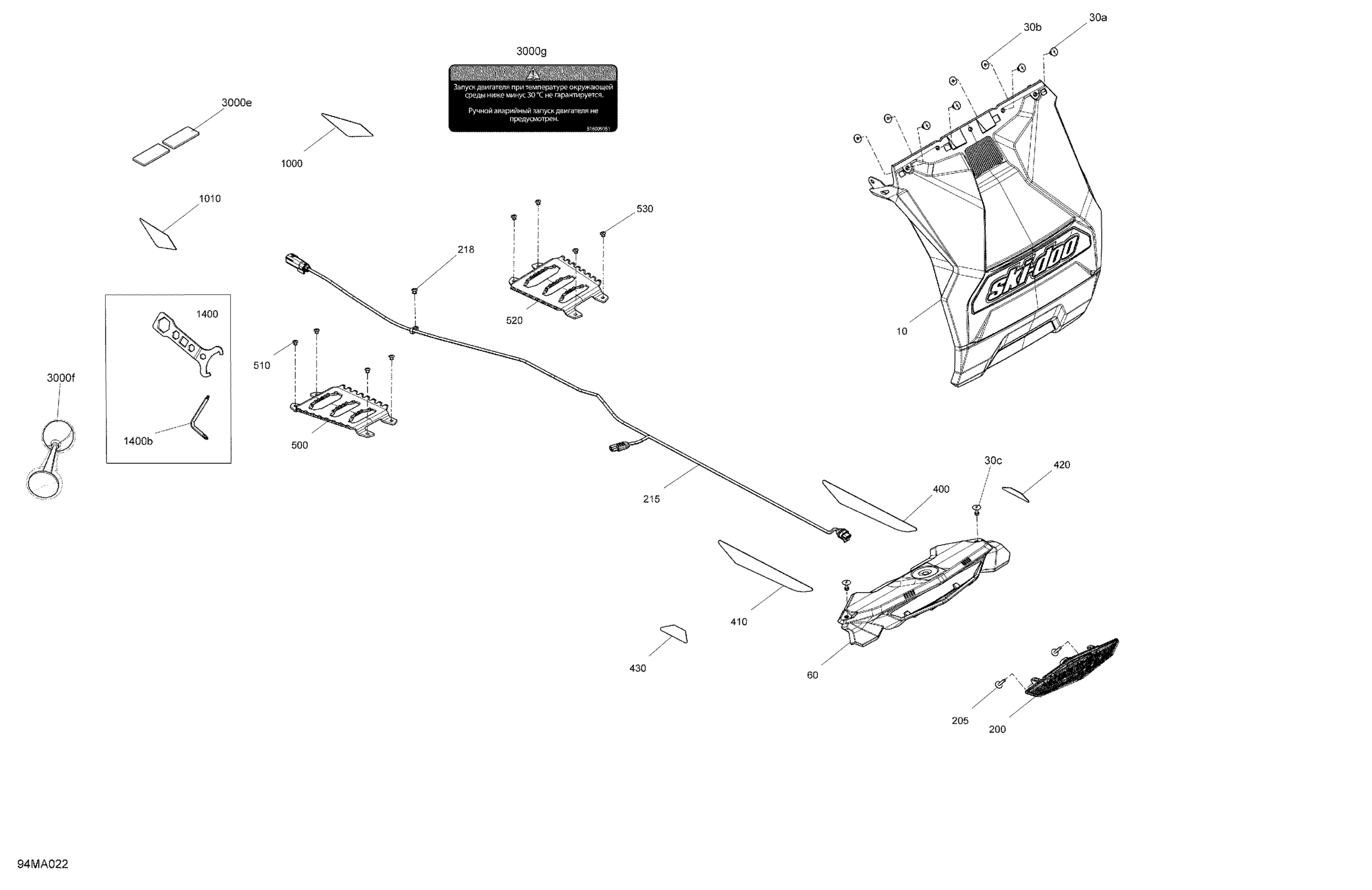

Ski-Doo GRAND TOURING 600 ACE - SPORT - Europe, 2021 Miscellaneous - Utilities Diagram

Description

Price

Snow Gard Ass'y

520001640

$124.58

30a

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

30b

Washer

517124300

$0.16

30c

Pop Rivet 3/16"

293150100

$1.08

Light Fairing

520001487

$19.20

200

Rear Light

520001143

$76.89

205

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

215

Taillight Wiring Harness | Includes 8000 to 8000a

515178404

$35.35

218

Pop Rivet 3/16"

390402200

$0.26

400

Yellow, LH/RH Rear Reflector Kit

861805523

$25.35

410

Yellow, LH/RH Rear Reflector Kit

861805523

$25.35

420

Amber, LH Rear Reflector

520001862

$4.65

430

Amber, LH Rear Reflector

520001861

$4.65

500

Passenger Footrest

520001883

$46.12

510

Pop Rivet 3/16"

390402200

$0.26

520

Passenger Footrest

520001883

$46.12

530

Rivet 3/16"

293150102

$0.71

1000

RH Front Reflector

520002343

$7.95

1010

LH Front Reflector

520002344

$9.97

1400

Tool Kit | Includes 1400 to 1400b

520001767

$51.99

1400b

Key

520001815

$11.99

3000d

Red, Reflector

705015551

$8.26

3000e

Amber, Reflector

520000271

$19.20

3000f

Horn

549011291

$35.35

3000g

Warning Decal, Security

516009951

Unavailable
