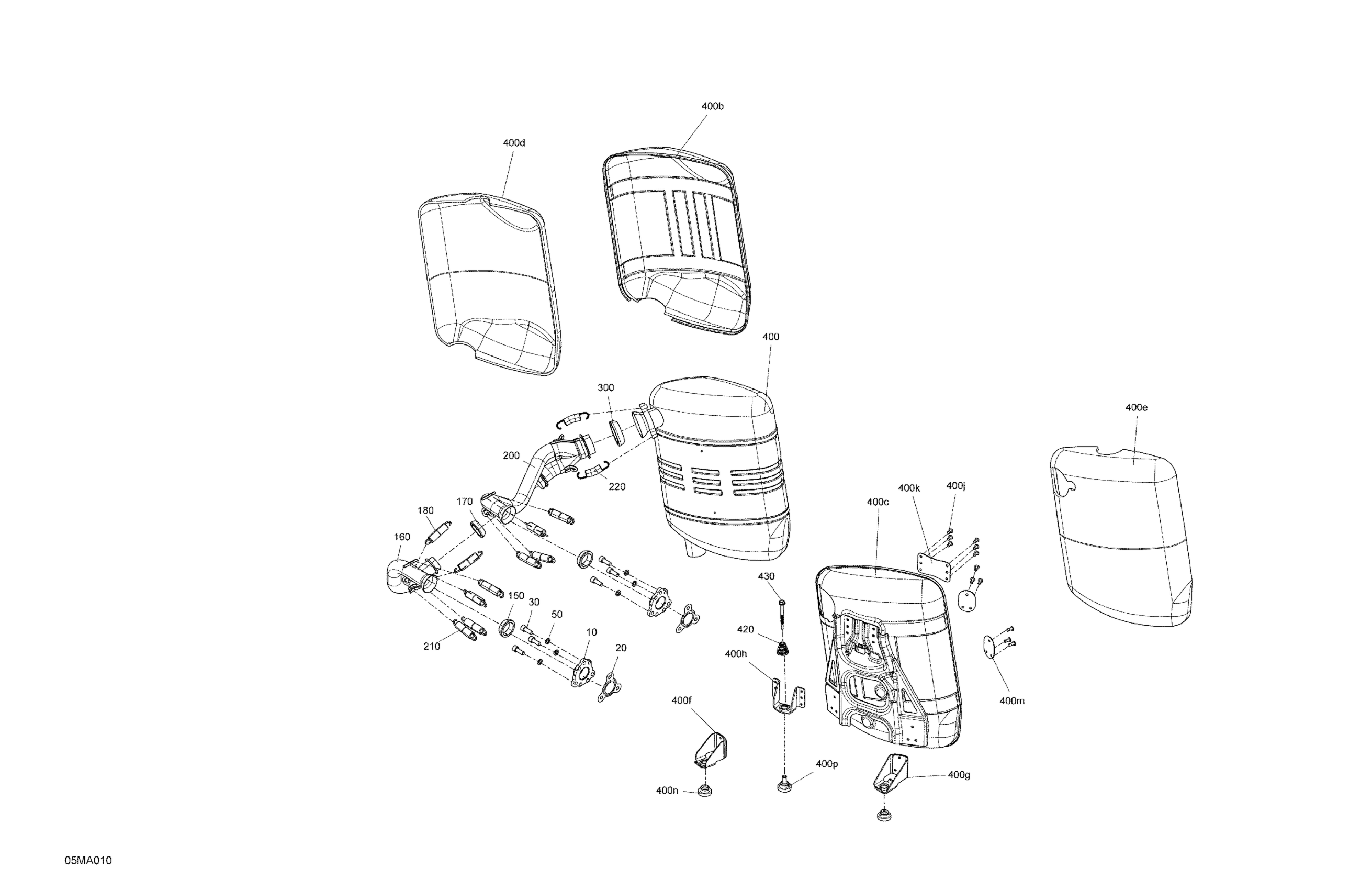

Ski-Doo GRAND TOURING 600 ACE - SPORT - Europe, 2021 Engine - Exhaust Diagram

Description

Price

Exhaust Manifold

514054673

$69.20

Gasket

514055112

$5.86

Socket Head Screw M8 X 22

250000414

$2.06

Washer

250200111

$1.74

150

Exhaust Gasket

514054807

$15.35

160

Pipe

514055778

$66.12

170

Exhaust Gasket

514054807

$15.35

180

Spring

707601834

$6.20

200

Exhaust Pipe

514055605

$184.58

210

Spring

707601834

$6.20

220

Spring

514055198

$6.20

300

Exhaust Gasket

707601033

$13.29

400

Exhaust Muffler Ass'y | Includes 400 to 400n

514056180

$738.43

400b

RH Deflector

514055981

$50.74

400c

LH Deflector

514055482

$54.58

400d

RH Wool

514055711

$23.05

400e

LH Wool

514055712

$23.05

400f

Front Support

514055485

$5.23

400g

Rear Support

514055486

$5.23

400h

Support

514055406

$5.23

400j

Interlocks Rivet 4.8 X 25.45 Black

293150200

$0.98

400k

Backing Plate

514055499

$1.23

400m

Backing Plate

514055500

$1.23

400n

Stopper

514055203

$19.20

400p

Stopper Ass'y

514056138

$12.58

420

Spring

514055282

$5.24

430

Hex. Flange Screw M6

250000926

$0.83
