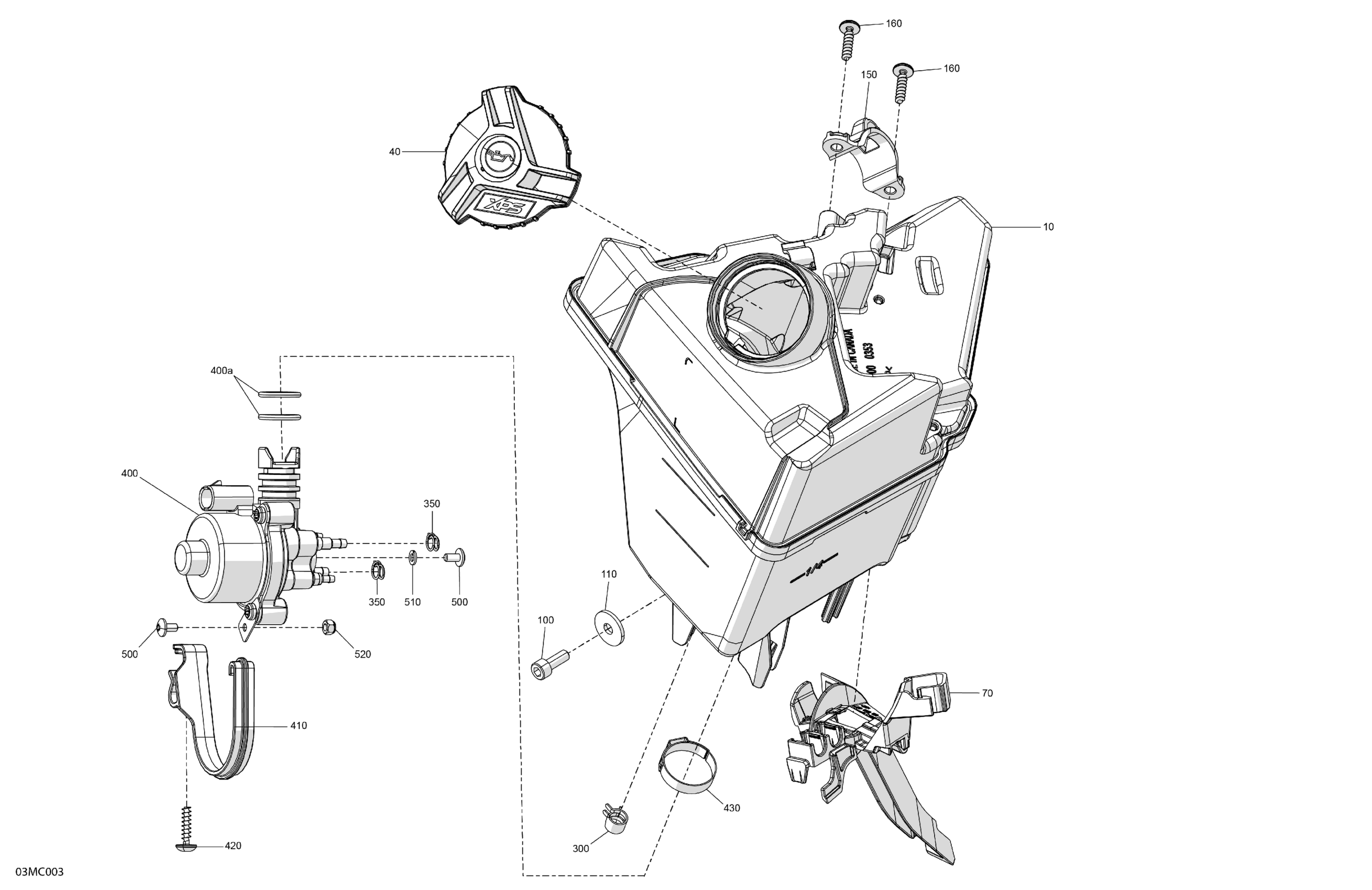

Ski-Doo 001 - FREERIDE 146 - 850 E-TEC - North America, 2023 02- Engine - Oil Diagram

Description

Price

Oil Tank

519000353

$73.99

Oil Tank Cap Ass'y

519000373

$20.99

Hose Guard

519000362

$4.34

100

Socket Screw M6 X 16, Scotch Grip

205561644

$1.25

110

Flat Washer

224061201

$1.37

150

Clamp

519000320

$4.76

160

Torx Screw Truss Head K50X20 T20

250000760

$2.11

300

Spring Clamp

414420700

$0.72

350

Hose Clamp

293650252

$4.54

400

Hydraulic Pump | Includes 400 to 400a

519000375

$204.99

400a

O-Ring

415130335

$18.49

410

Bracket

519000318

$3.49

420

Torx Screw Truss Head K50X20 T20

250000760

$2.11

430

Crimp Clamp

293650099

$4.29

500

Screw-Torx Button Head M4 X 8

250000741

$1.15

510

Lock Washer 4 mm

234141601

$1.15

520

Elastic Stop Nut M4

232541484

$0.74
