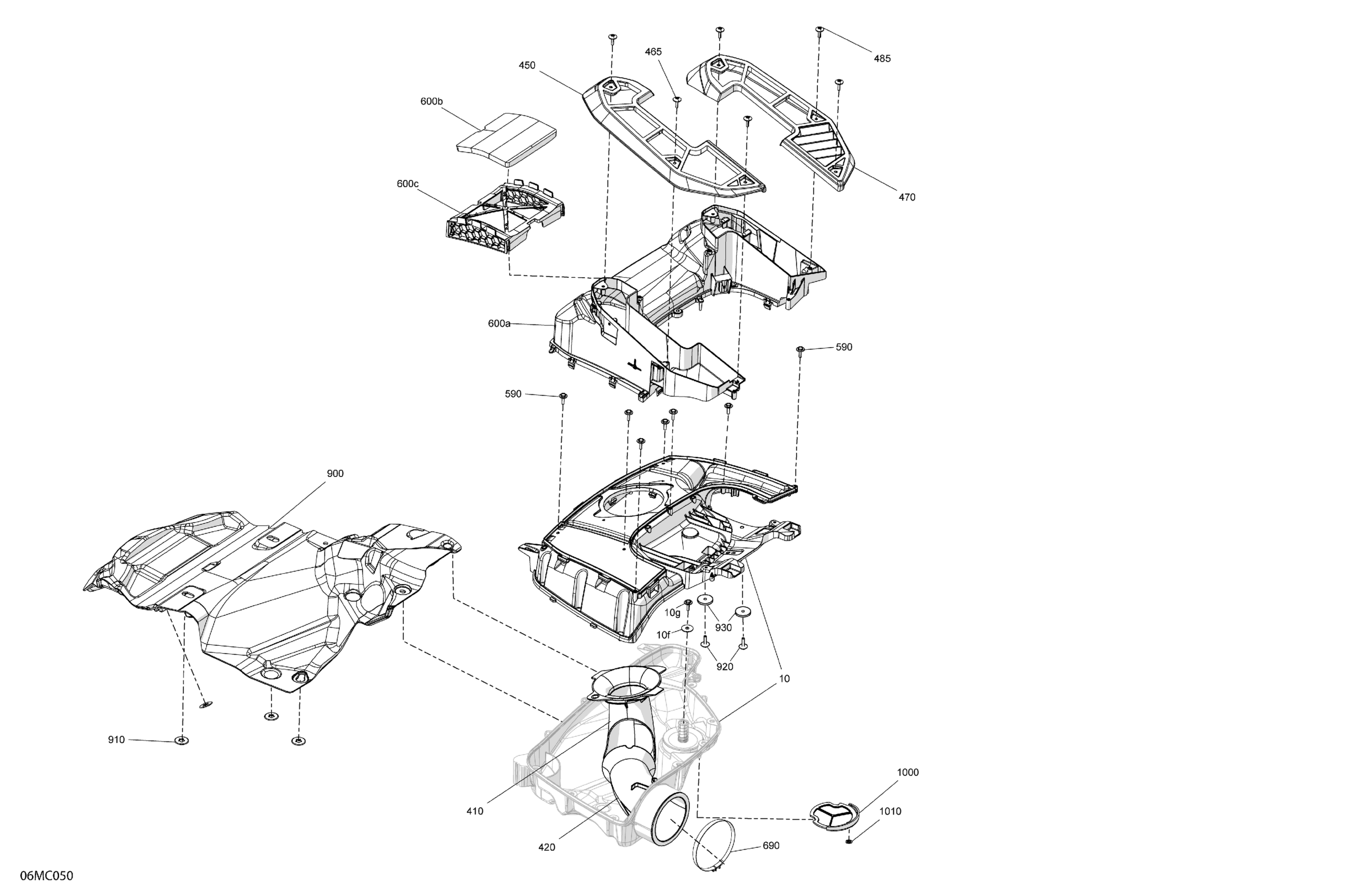

Ski-Doo FREERIDE 146 - 850 E-TEC - 2023 Engine - Air Intake Diagram

Description

Price

Secondary Intake Silencer Ass'y | Includes 10 to 10g

508001363

$163.82

10f

Flat Washer

224060201

$1.15

10g

Screw M4 X 16

250000725

$2.87

410

Resonator Hose IN

508001129

$34.58

420

Resonator Hose OUT

508001130

$34.58

450

LH Air Filter

508001138

$53.82

465

Screw M4 X 16

250000889

$2.46

470

RH Air Filter

508001139

$53.82

485

Screw M4 X 16

250000889

$2.46

590

Screw M4 X 16

250000725

$2.87

600a

Upper Intake Silencer Duct Ass'y | Includes 600 to 600c

508001301

$61.51

600b

Acoustic Insulation

508001223

$13.20

600c

Foam Support

508001221

$35.35

690

Gemi Clamp

293650247

$6.26

900

Acoustic Panel

508001198

$42.28

910

Push Nut

508000853

$1.92

920

Screw M4 X 16

250000725

$2.87

930

Thermal Insulation

508001264

$1.82

1000

Pop Off Filter

508000815

$6.83

1010

Push Nut

250001189

$1.11
