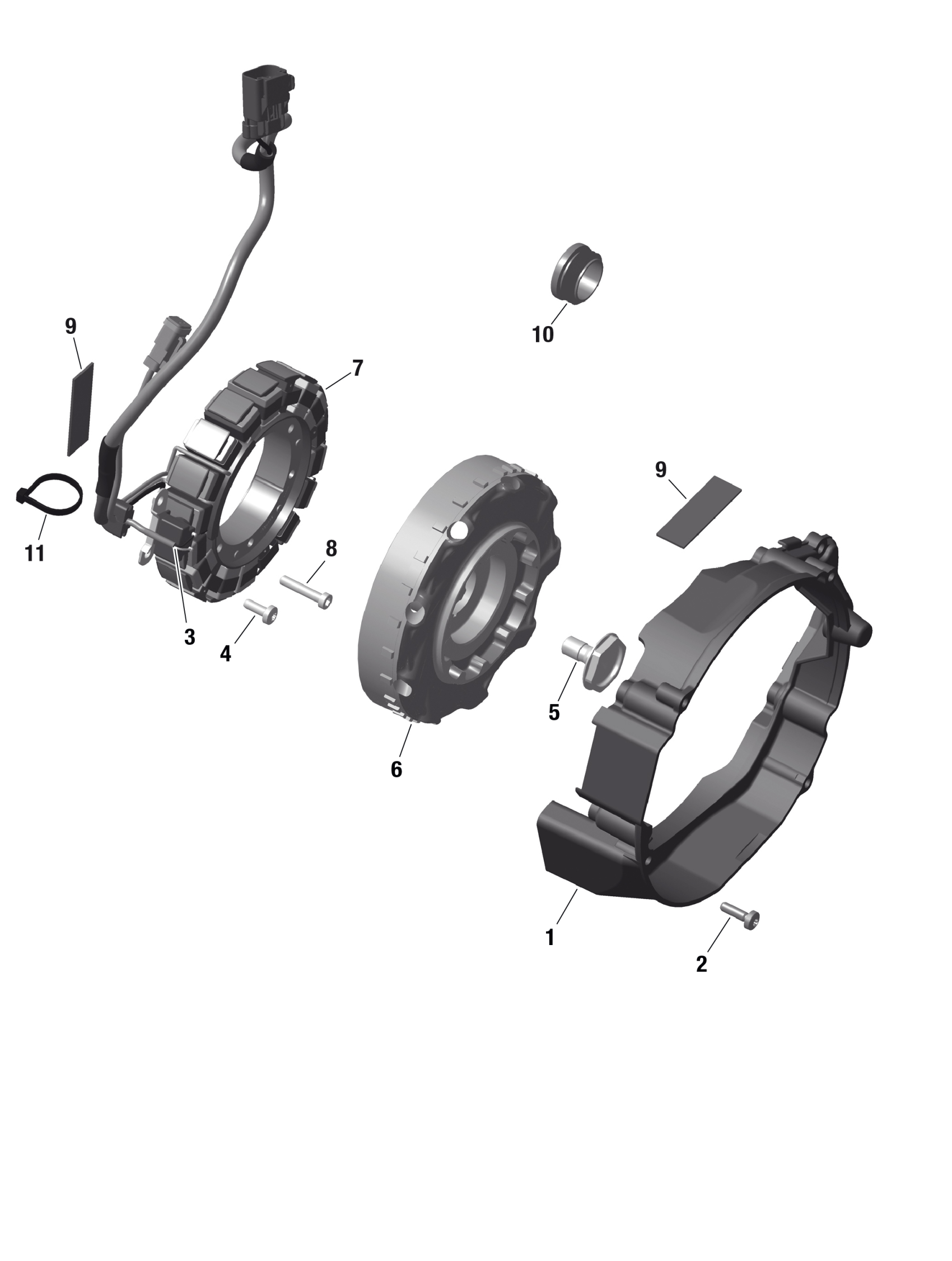

Ski-Doo FREERIDE 146 - 850 E-TEC - 2023 ROTAX - Magneto and Electric Starter - DSHOT Diagram

#

Description
Price

1

Ignition Housing

420911854

$24.49

2

Torx Flange Screw M6 X 20

420441386

$2.11

3

Pickup Ass'y

420966844

$109.99

4

Torx Flange Screw M6 X 20

420441386

$2.11

5

Collar Hex Screw M12 X 25

420840851

$20.99

6

Magneto Flywheel

420866046

$569.49

7

Stator Ass'y 55V/1300W

420864427

$478.99

8

Allen Screw M6 x 30

420540000

$3.17

9

Adhesive Pad, 1.6 mm X 20 mm X 60 mm

420201360

$2.99

10

Plug

420201930

$4.55

11

Locking Tie 175 X 4 MM

420651817

$1.05
