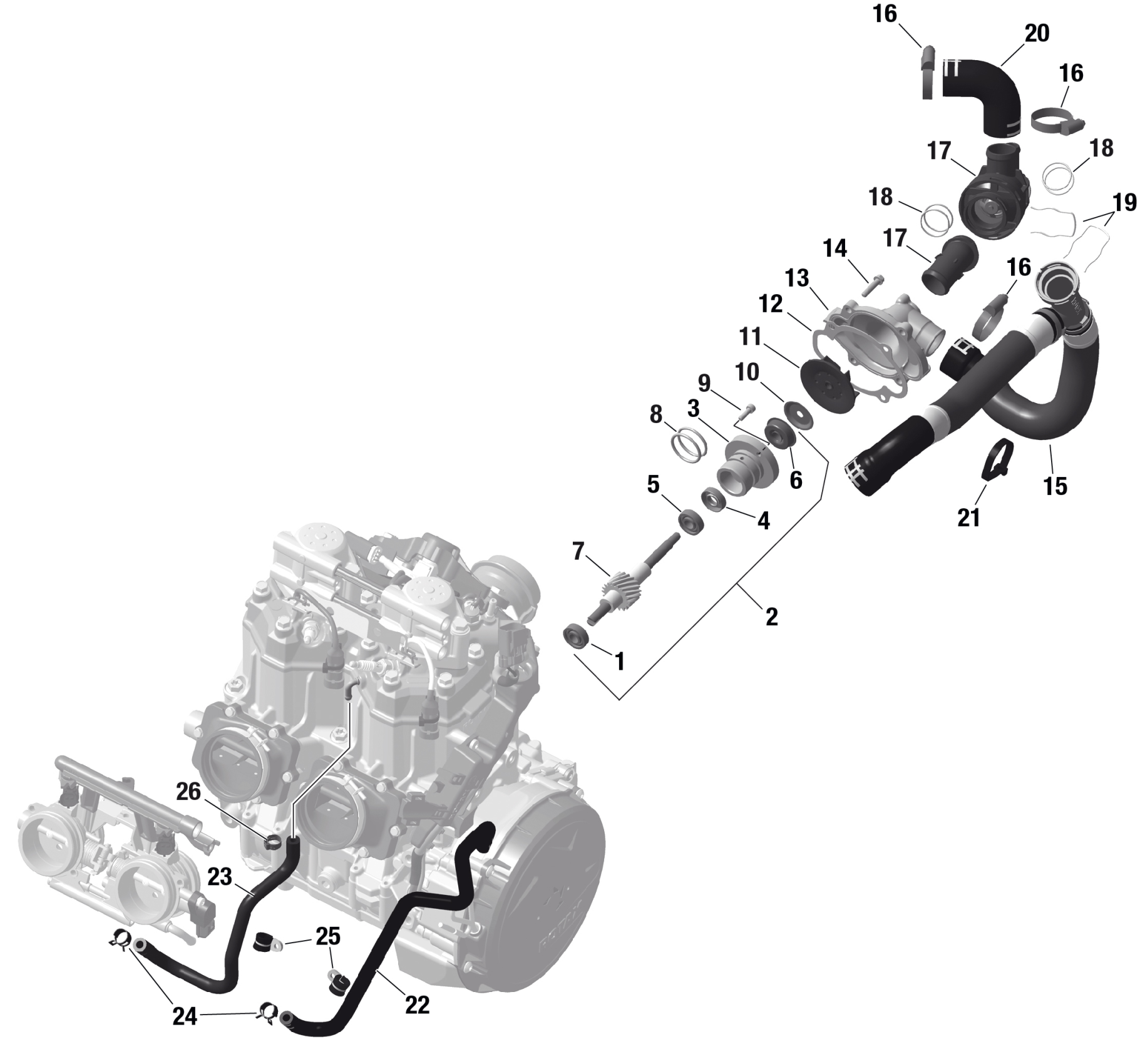

Ski-Doo FREERIDE 146 - 850 E-TEC - 2023 ROTAX - Engine Cooling - NA Diagram

#

Description
Price

1

Ball Bearing

420232100

$17.88

2

Water Pump Shaft Ass'y | Except SHOT This part replaces 420891479.

420891483

$270.87

3

Step Collar

420847933

$36.54

4

Oil Seal

420230198

$14.90

5

Ball Bearing

420232100

$17.88

6

Rotary Seal

420650371

$41.01

7

Water Pump Shaft

420837681

Unavailable

8

O-Ring | Included in gasket kit

420950897

$4.15

9

Not Available As Spare Parts

XXX

Unavailable

10

Cover Washer

420944035

$5.06

11

Impeller | Except SHOT

420922808

$35.79

12

Gasket Housing This part replaces 420430053.

420430054

$8.09

13

Waterpump Housing | Except SHOT

420822286

$58.18

14

Torx Flange Screw M6 X 25

420440234

$2.91

15

Molded Hose This part replaces 420822803.

420822805

$70.12

16

Clamp 26-38MM

420951120

$4.03

17

Thermostat Housing | Includes 17 to 18

420822836

$70.87

18

O-Ring

420430062

$2.00

19

Spring Clip

420939344

$2.00

20

Return Hose

420822820

$10.21

21

Locking Tie 175 X 4 MM

420651817

$0.99

22

Molded Hose

420201516

$10.21

23

Molded Hose

420201512

$10.21

24

Clamp

420853511

$7.09

25

Clamp

420851250

$9.03

26

Clamp

420851458

$7.01
