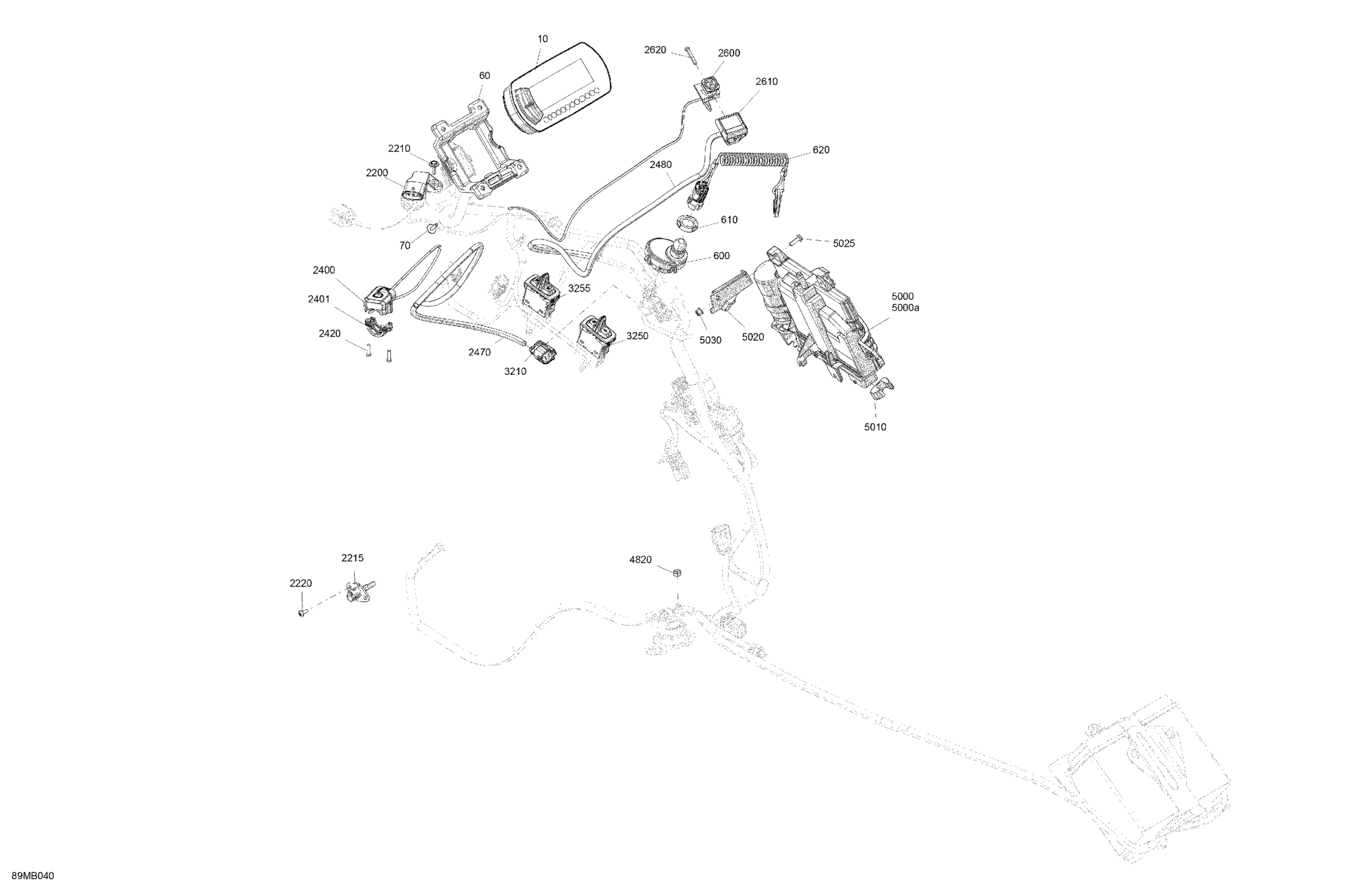

Ski-Doo FREERIDE 146 850 E-TEC - 2022 Electric - Upper Section - No Shot Starter Diagram

Description

Price

2 Button Multifunction Gauge Full Size Color

515178226

$599.99

Housing

515178450

$6.39

Screw M4 X 16

250000725

$3.49

600

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

2200

Pressure And Temperature Sensor

707000995

$88.99

2210

Screw M4 X 16

250000725

$3.49

2215

Air Temperature Sensor

515176366

$19.99

2220

Torx Truss PT K40 x 12

250001131

$2.11

2400

Ignition Switch

515178857

$69.99

2401

Clamp

515177952

$8.79

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515177931

$76.49

2610

Emergency Stop Switch Support

515177310

$9.19

2620

Torx Screw #8-18

250000263

$1.04

3210

4 Circuits Female Housing

515178177

$12.18

3250

Switch Rocker Hand Warmer

515178462

$20.49

3255

Switch Rocker Headlignt

515178463

$20.49

4820

Elastic Stop Nut M6

232561434

$1.99

5000

ECM Module | Includes 5000a to 5000a2

515179352

$589.99

5000a

Capacitor

515177272

$90.99

5010

Rubber Stopper

515178430

$2.11

5020

Module Support

515178159

$4.44

5025

Hex. Flange Screw, Scotch Grip

207551634

$2.00

5030

Flange Elastic Nut M5

233251434

$2.00
