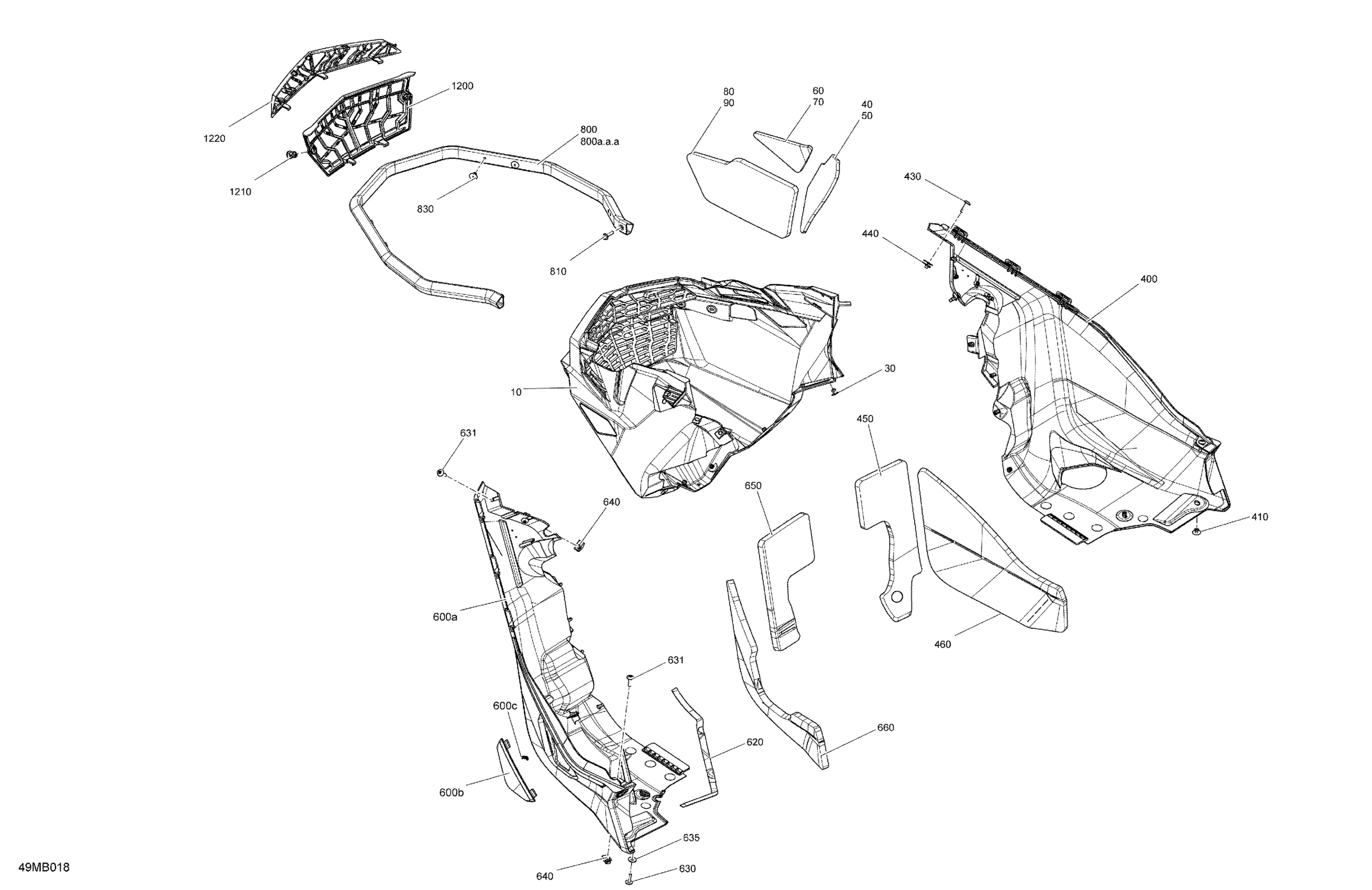

Ski-Doo 001 - FREERIDE 146 850 E-TEC - North America, 2022 07- Body - Bottom Pan Diagram

Front Bottom Pan

502008210

$149.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

RH Upper Bottom Pan Foam

502007788

$18.99

LH Upper Bottom Pan Foam

502007789

$18.99

RH Bottom Pan Central Foam

502007545

$9.59

LH Bottom Pan Central Foam

502007546

$13.99

RH Lower Bottom Pan Foam

502007800

$20.99

LH Lower Bottom Pan Foam

502007799

$7.89

RH Bottom Pan

502007929

$109.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Torx Truss M5 X 20

250000586

$4.44

Panel Nut M5 X 0.8

250000958

$4.23

RH Bottom Pan Upper Foam

502007547

$11.99

RH Bottom Pan Lower Foam

502007548

$11.99

LH Bottom Pan

502007675

$129.99

Bottom Pan Door

502007676

$38.99

Hairpin Cotter

269800431

$1.29

Neoprene Seal (1PAC=3M)

293200003

Unavailable

Torx Truss M5 X 20

250000586

$4.44

Torx Truss M5 X 20

250000586

$4.44

Washer M5

250200025

$0.74

Panel Nut M5 X 0.8

250000958

$4.23

LH Bottom Pan Upper Foam

502007549

$13.99

LH Bottom Pan Lower Foam

502007550

$11.99

Front Bumper | Includes 800 to 800a.b

502008207

$127.49

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Belly Pan Filter

502007978

$33.99

Tuflok Plastic Rivet

293150230

$1.47

Upper Hood Filter

502007977

$19.99
