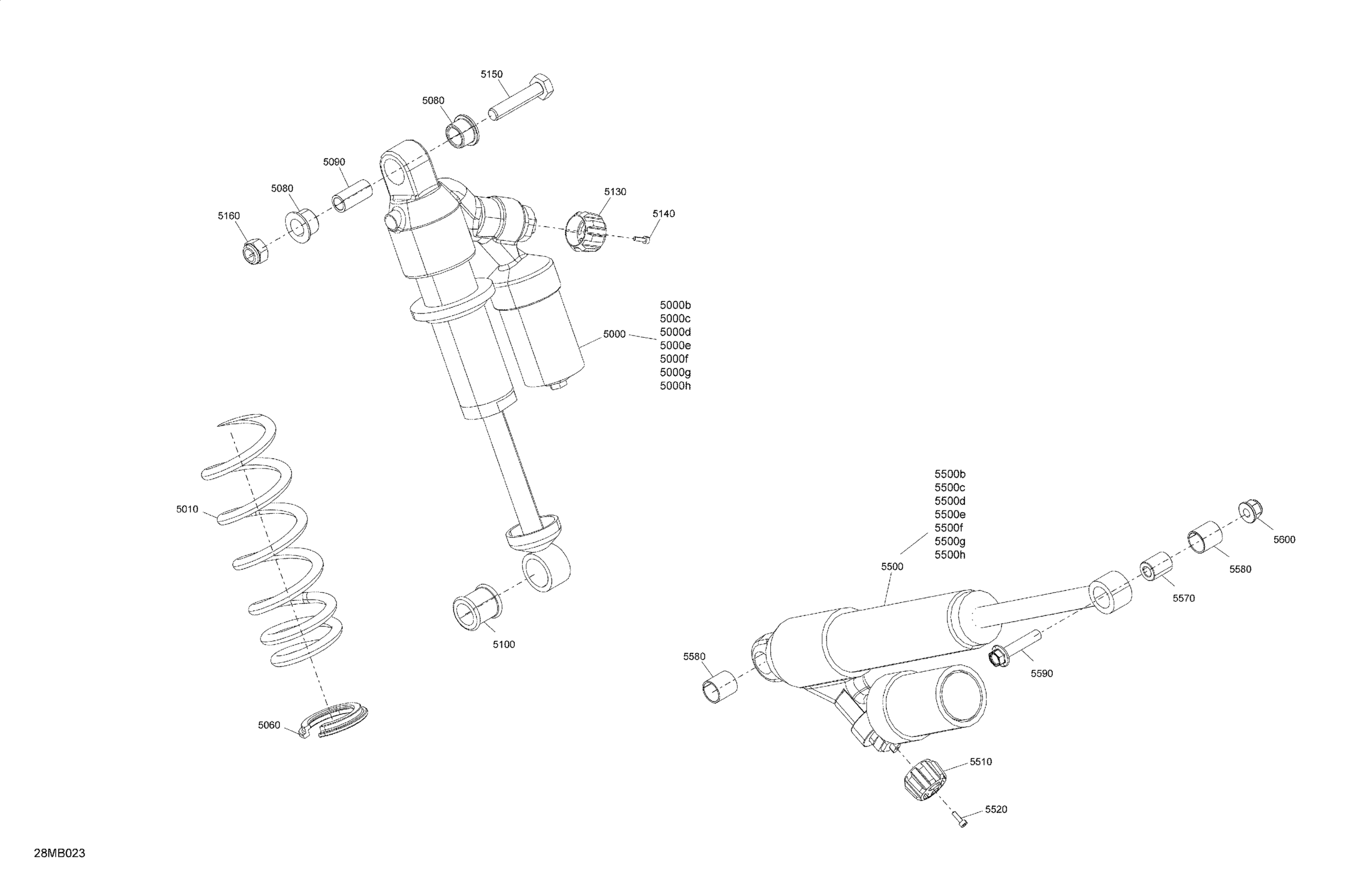

Ski-Doo 001 - FREERIDE 146 850 E-TEC - North America, 2022 05- Suspension - Rear Shocks Diagram

Description

Price

5000

Center Shock | Includes 5000 to 5000j

503194071

$812.99

5000b

O-Ring

415093807

$35.99

5000c

Piston Ring | Not Shown

415093806

$16.86

5000d

Air Valve

505070398

$20.99

5000e

Screw | Not Shown

505070399

$4.12

5000f

O-Ring

505070400

$4.54

5000g

O-Ring

415093804

$4.54

5000h

Base Valve

415130165

$78.99

5010

Black, Spring

503195913

$67.99

5060

Spring Stopper

503194270

$19.99

5080

Urethane Bushing

503189117

$8.19

5090

Bushing | Includes 240d to 240d1

503189282

$4.34

5100

Bushing

503189271

$13.99

5130

Shock Adjuster Knob

503193033

$10.99

5140

Allen Screw M3 X 0.5 X 10

250000644

$2.11

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5160

Elastic Locking Nut M10

233601466

$2.11

5500

Rear Shock | Includes 5500 to 5500j

503192964

$877.49

5500b

O-Ring

415093807

$35.99

5500c

Piston Ring | Not Shown

415093806

$16.86

5500d

Air Valve

505070398

$20.99

5500e

Screw | Not Shown

505070399

$4.12

5500f

O-Ring

505070400

$4.54

5500g

O-Ring

415093804

$4.54

5500h

Base Valve

415130165

$78.99

5510

Shock Adjuster Knob

503193033

$10.99

5520

Allen Screw M3 X 0.5 X 10

250000644

$2.11

5570

Axle Shock Absorber

503196509

$12.58

5580

Leg Cushion

505072663

$9.23

5590

Hex. Flange Screw M8 X 40

207684044

$1.48

5600

Elastic Flange Nut M8

233281466

$1.01
