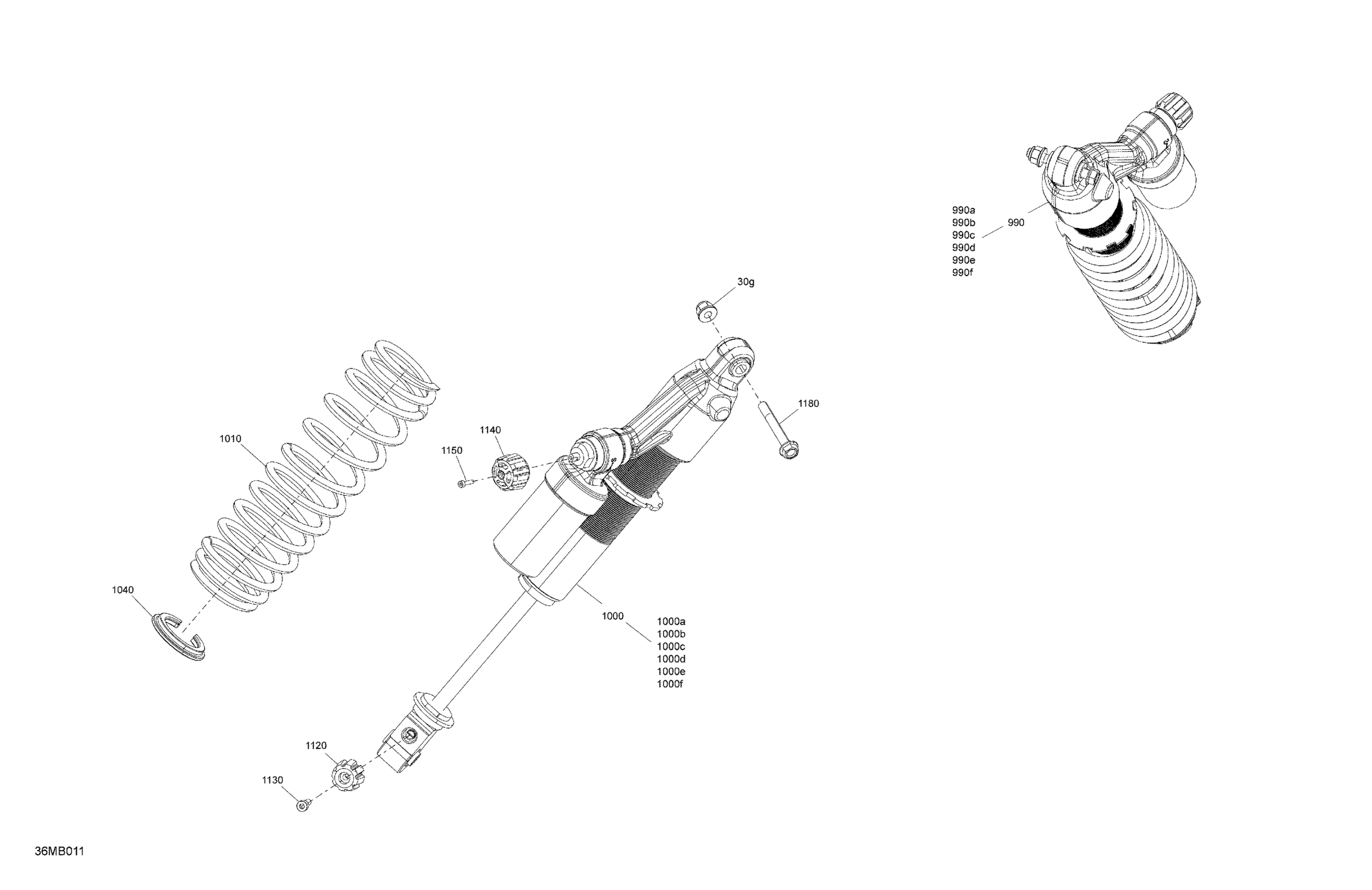

Ski-Doo FREERIDE 146 850 E-TEC - 2022 Suspension - Front Shocks Diagram

Description

Price

990

RH Front Shock | Included 990 to 990f

505074187

$877.49

990a

O-Ring

415093807

$33.55

990b

Piston Ring | Not Shown

415093806

$14.52

990c

O-Ring

505070400

$4.25

990d

Screw | Not Shown

505070399

$3.88

990e

O-Ring

415093804

$4.25

990f

Base Valve

415130165

$72.36

1000

LH Front Shock | Included 1000 to 1000f

505074188

$877.49

1000a

O-Ring

415093807

$33.55

1000b

Piston Ring | Not Shown

415093806

$14.52

1000c

O-Ring

505070400

$4.25

1000d

Screw | Not Shown

505070399

$3.88

1000e

O-Ring

415093804

$4.25

1000f

Base Valve

415130165

$72.36

1010

Deep Black, Spring

505074709

Unavailable

1040

Spring Stopper

503194270

$16.39

1120

Adjustment Knob

505072753

$2.01

1130

Allen Screw M3 X 0.5 X 10

250000644

$2.00

1140

Shock Adjuster Knob

503193033

$7.36

1150

Allen Screw M3 X 0.5 X 10

250000644

$2.00

1180

Hex. Flange Screw M8 X 58

250000824

$2.00

30g

Elastic Flange Nut M8

233281466

$0.96
