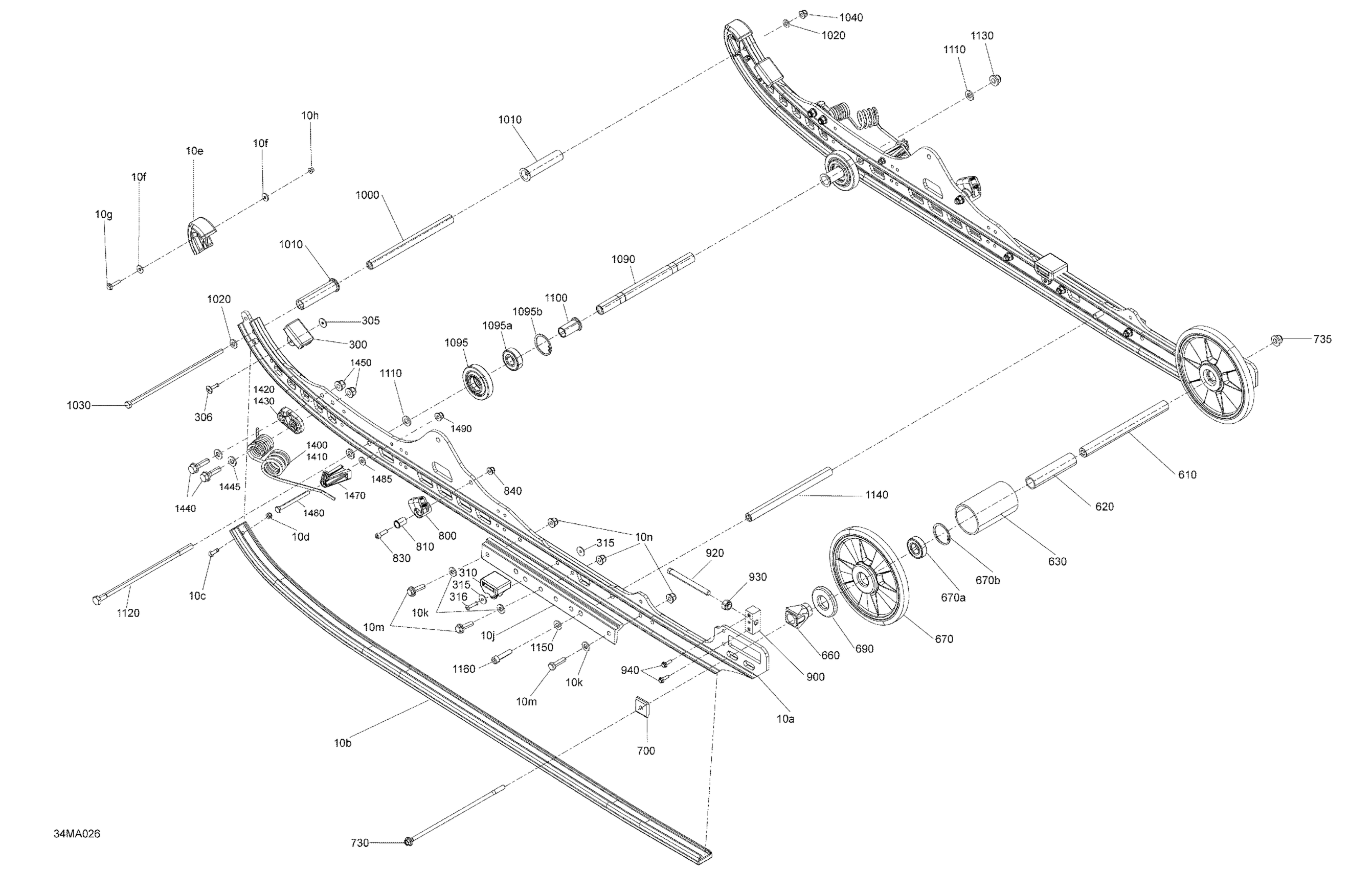

Ski-Doo FREERIDE 146 850 E-TEC - 2021 Suspension - Rear - Lower Section Diagram

#

Description
Price

10a

Rail_Suspension 146 B-356 This part replaces 503195888.

503196768

$272.36

10b

Black, Slider 146

503191499

$32.06

10c

Phillips Screw M6 X 25

208562531

$2.00

10d

Elastic Stop Nut M6

232561434

$1.78

10e

Runner Protector

503192299

$23.10

10f

Washer

250200140

$0.96

10g

Hex. Flange Screw M5 X 25

207652544

$0.48

10h

Flange Elastic Nut M5

233251434

$1.91

10j

Rail Reinforcement

503195826

$52.21

10k

Washer

503192494

$3.01

10m

Hex. Cap Screw M8 X 30

207183054

$4.15

10n

Elastic Flange Nut M8

233281466

$0.96

300

Rubber Stopper

503190576

$9.93

305

Washer

503191273

$1.03

306

Pop Rivet 3/16

293150224

$0.96

310

Rubber Stopper

503193512

$12.31

315

Washer

503191273

$1.03

316

Pop Rivet 3/16"

293150013

$1.27

610

Rear Axle

503195757

$67.88

620

Rear Spacer

503191263

$14.90

630

Bushing

503193097

$14.90

660

Rear Wheel Spacer

503190428

$5.88

670

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$48.48

670a

Ball Bearing | Package-STD

503190396

$8.18

670b

Retaining Ring

415129371

$8.66

690

Labyrinth Seal

503190434

$4.16

700

Slider Axle

503195756

$10.72

730

Bolt M10

503195748

$26.09

735

Flange Elastic Nut M10

233201466

$3.01

800

Spring Support Kit

861805547

$7.90

810

Bushing

503196055

$10.72

830

Socket Screw M8 X 25

205082554

$2.00

840

Elastic Flange Nut M8

233281466

$0.96

900

Tensioner

503193808

$37.28

920

Hex Screw M10 x 100

230100054

$6.07

930

Elastic Locking Nut M10

233601466

$2.00

940

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

1000

Axle

503196069

$10.13

1010

Spacer

503195825

$1.54

1020

Washer

503192494

$3.01

1030

Bolt M8 X 248mm

503192440

$29.07

1040

Elastic Flange Nut M8

233281466

$0.96

1090

Pivot Axle

503195954

$9.18

1095

Black, Wheel Ass'y

503195125

$31.31

1095a

Ball Bearing

503194917

$12.15

1095b

Retaining Ring

415130193

$8.18

1100

Spacer

503194864

$8.48

1110

Washer

503192494

$3.01

1120

Bolt M8 X 248mm

503192440

$29.07

1130

Elastic Flange Nut M8

233281466

$0.96

1140

Axle Strap

503191260

$28.33

1150

Washer

503192496

$0.73

1160

Socket Head Screw M10 X 35

205503554

$7.09

1400

LH Spring

503194900

$64.90

1410

RH Spring

503194901

$64.90

1420

LH Support

503194294

$38.78

1430

RH Support

503194295

$38.78

1440

Hex. Flange Screw M8 X 30

207683054

$2.00

1445

Washer

503192494

$3.01

1450

Elastic Flange Nut M8

233281466

$0.96

1470

Hook Ass'y

503195087

$7.16

1480

Hex. Cap Screw M6 X 70

207167054

$4.15

1485

Flat Washer

250200039

$0.70

1490

Hex. Flange Elastic Nut M6

233261466

$1.91
