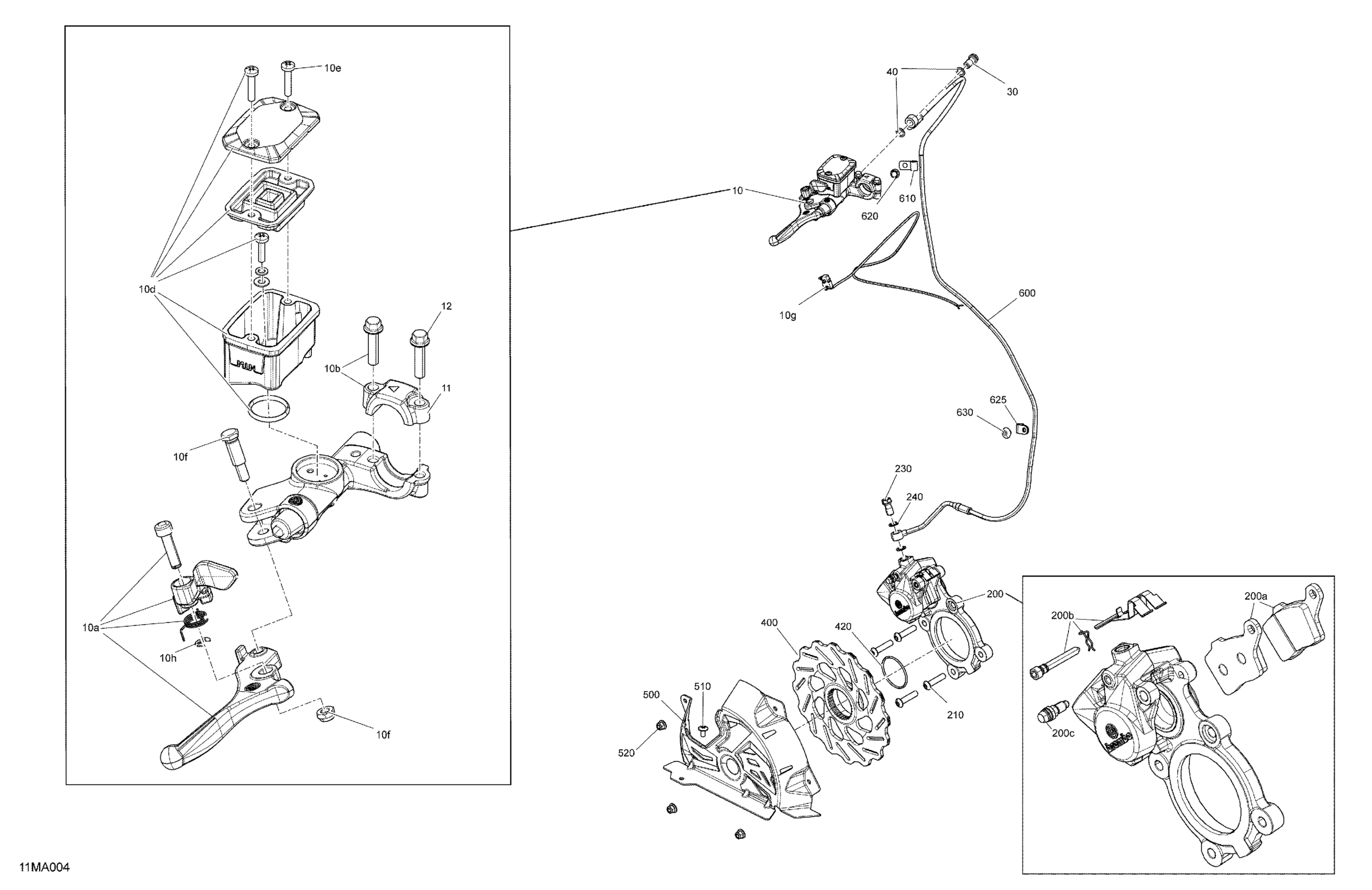

Ski-Doo FREERIDE 146 850 E-TEC - 2021 Mechanic - Brakes Diagram

#

Description
Price

10

Master Brake Cylinder | Includes 10 to 10f

507032728

$327.66

10a

Lever With Parking Lock

507032476

$101.51

10b

Clamp And Screw Kit

507032477

$22.79

10d

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.97

10e

Screw M4 X 20

415129356

$2.17

10f

Pin Ass'y

415030000

$17.66

10g

Microswitch

507032601

$70.74

10h

Circlip | Model-RS

414439000

$4.14

11

Clamps | Includes 75a to 75b

719000049

$23.05

11a

Torx Screw M6 X 20

250000433

$7.31

12

Hex. Flange Screw M6 X 25

250000447

$2.06

30

Banjo Bolt

507032551

$5.52

40

Copper Washer

705601628

$4.34

200

Brake Caliper | Includes 200 to 200c

507032720

$341.51

200a

Brake Pads Kit

507032473

$50.74

200b

Brake Spring Kit

507032722

$36.89

200c

Bleeder

507032475

$16.89

210

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.66

230

Banjo Bolt

507032551

$5.52

240

Copper Washer

705601628

$4.34

400

Disk

507032554

$216.89

420

O Ring

293300221

$1.58

500

Black, Disc Protector | Includes 500 to 500a

507032638

$46.12

510

Torx Truss Screw M6 X 12

250000767

$1.66

520

Hex. Flange Elastic Nut M6

233261466

$1.66

600

Brake Hose

507032655

$59.97

610

Open Clamp

414108400

$3.11

620

Hex. Flange Screw M6 X 10

210261040

$1.25

625

Hose Clamp

293650257

$5.15

630

Blind Rivet 3/16

293150231

$0.31
