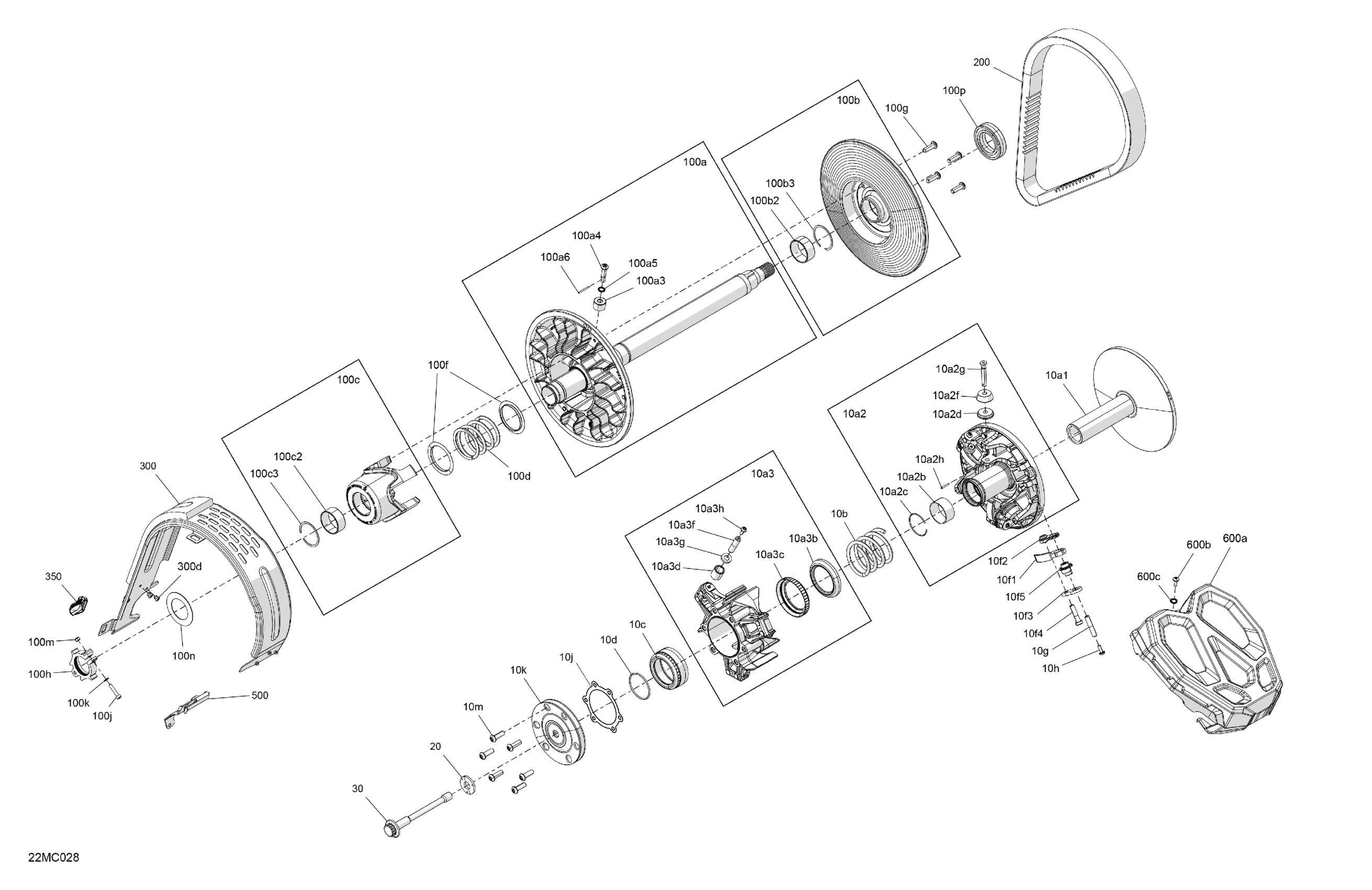

Ski-Doo FREERIDE 146 - 850 E-TEC - Europe, 2023 Drive - Pulley Diagram

#

Description
Price

10a1

Fixed Flange Ass'y

417224332

$175.35

10a2

Sheave Drive Pulley Sliding Ass'y | Includes 10a2 to 10a2h

417224767

$332.28

10a2b

Bushing

293250389

$9.22

10a2c

Circlip

293370137

$3.22

10a2d

Back Torque Roller

417224153

$16.12

10a2f

Pulley Roller Ext

417224916

$33.05

10a2g

Pin

417224510

$9.22

10a2h

Spring Pin 2.6MM X 20.5MM

250400101

$0.88

10a3

Spider Drive Pulley | Includes 10a3 to 10a3h

417225067

$179.97

10a3b

Stopper Spring

417224910

$9.88

10a3c

Spring Guide

417224614

$10.14

10a3d

Roller Pulley Ass'y

417224947

$35.35

10a3f

Axle - 10mm

417224204

$9.22

10a3g

Thrust Washer

417224868

$2.23

10a3h

Torx-Truss M/S M5 X 14 S.Grip

250000763

$1.81

10b

Clutch Spring

417224015

$14.75

10c

Seat Spring

417224003

$10.17

10d

Circlip

293370116

$3.22

10f1

Ramp 990

417224326

$36.89

10f2

RH Lever

417224086

$8.68

10f3

LH Lever

417224114

$5.37

10f4

Pivot 38mm

417224222

$0.91

10f5

Molded Cam

417224113

$8.63

10g

Pin Ramp

417224694

$9.22

10h

Torx-Truss M/S M5 X 14 S.Grip

250000763

$1.81

10j

Spacer

417224757

$18.43

10k

VIbration Damper

417224682

$124.58

10m

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

20

Conical Spring Washer M14

250200144

$3.63

30

Pulley Drive Bolt M14 X 144

417300522

$32.28

100a

Fixed Flange Ass'y | Includes 100a to 100a6

417127595

$507.66

100a3

Pulley Roller

417127016

$23.05

100a4

Pivot Stud

417127294

$13.58

100a5

Lock Washer 8 mm

250200009

$2.06

100a6

Spring Pin

250400070

$1.97

100b

Sheave Driven Pulley Sliding Ass'y | Includes 100b to 100b3

417127659

$350.74

100b2

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.66

100b3

Circlip

293370049

$4.71

100c

Cam Driven Pulley Ass'y | Includes 100c to 100c3

417127825

$134.99

100c2

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.66

100c3

Circlip

293370049

$4.71

100d

Green, Spring

417127137

$40.74

100f

Swivel Abutment

417127116

$8.06

100g

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

100h

Calibration Ass'y

415129604

$22.49

100j

Socket Screw M5 X 25

250000981

$1.34

100k

Flat Washer M5

234051410

$0.44

100m

Elastic Stop Nut M5

232551414

$0.72

100n

Washer

417127155

$8.03

100p

Ball Bearing

504152574

Unavailable

200

Drive Belt

417300571

$227.99

300

Belt Guard Ass'y | Includes 300 to 300d

417300621

$73.05

300d

Avex Rivet

390909200

$0.29

350

Guide

417300622

$9.23

500

Rear Guard Support

417300615

$12.20

600a

Strap Cover

417300605

$34.58

600b

Torx Screw M5 X 14

250000742

$1.20

600c

Washer M5

250200025

$0.61
