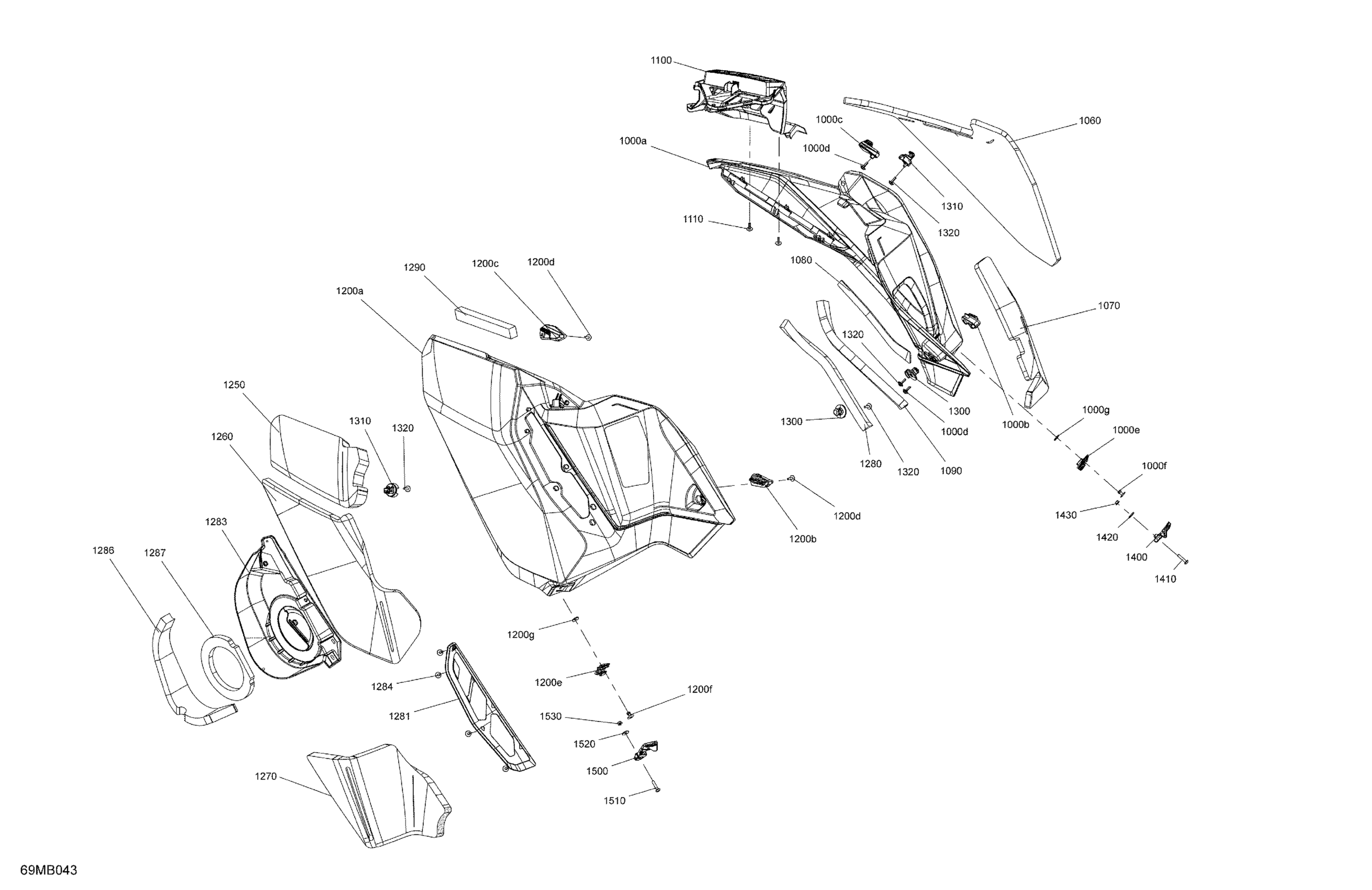

Ski-Doo FREERIDE 146 850 E-TEC - Europe, 2022 Body - Side Panels Diagram

#

Description
Price

120

Torx Screw M5 X 20

250000528

$1.74

1000a

RH Panel | Includes 1000a to 1000a

517307796

$216.89

1000b

RH Rear Latch

517305773

$14.22

1000c

RH Front Latch

517305979

$13.88

1000d

Screw M4 X 16

250000725

$2.87

1000e

RH Hook

517306311

$10.82

1000f

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1000g

Washer

517124300

$0.16

1060

RH Central Panel Foam

517306188

$28.43

1070

RH Rear Panel Foam

517306586

$10.46

1080

Rubber Sheet

517306262

$26.89

1090

RH Rear Panel Foam

517306480

$8.55

1100

RH Grille

517307244

$29.20

1110

Screw M4 X 16

250000725

$2.87

1200a

LH Panel

517307792

$198.43

1200b

LH Rear Latch

517305774

$14.22

1200c

LH Front Latch

517305980

$14.22

1200d

Screw M4 X 16

250000725

$2.87

1200e

LH Hook

517306312

$10.82

1200f

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

1200g

Washer

517124300

$0.16

1250

LH Front Panel Foam

517305769

$16.89

1260

Foam

517307029

$15.17

1270

Foam Acoustic Rear Panel

517307368

$15.35

1280

LH Rear Panel Foam

517306479

$8.55

1281

LH Grille

517306937

$14.68

1283

Duct

517307283

$15.35

1284

Screw M4 X 16

250000725

$2.87

1286

Duct Foam

517306960

$13.63

1287

Foam

517307639

$5.49

1290

Foam

517306594

$10.12

1300

Rear Stud

517305985

$15.00

1310

Front Stud

517305988

$15.35

1320

Screw M4 X 16

250000725

$2.87

1400

RH Lower Latch

517306309

$16.12

1410

Torx Screw M5 X 25

250000762

$1.74

1420

Washer

517124300

$0.16

1430

Hex. Flange Nut M5

233151414

$0.46

1500

LH Lower Latch

517306310

$16.12

1510

Torx Screw M5 X 25

250000762

$1.74

1520

Washer

517124300

$0.16

1530

Hex. Flange Nut M5

233151414

$0.46
