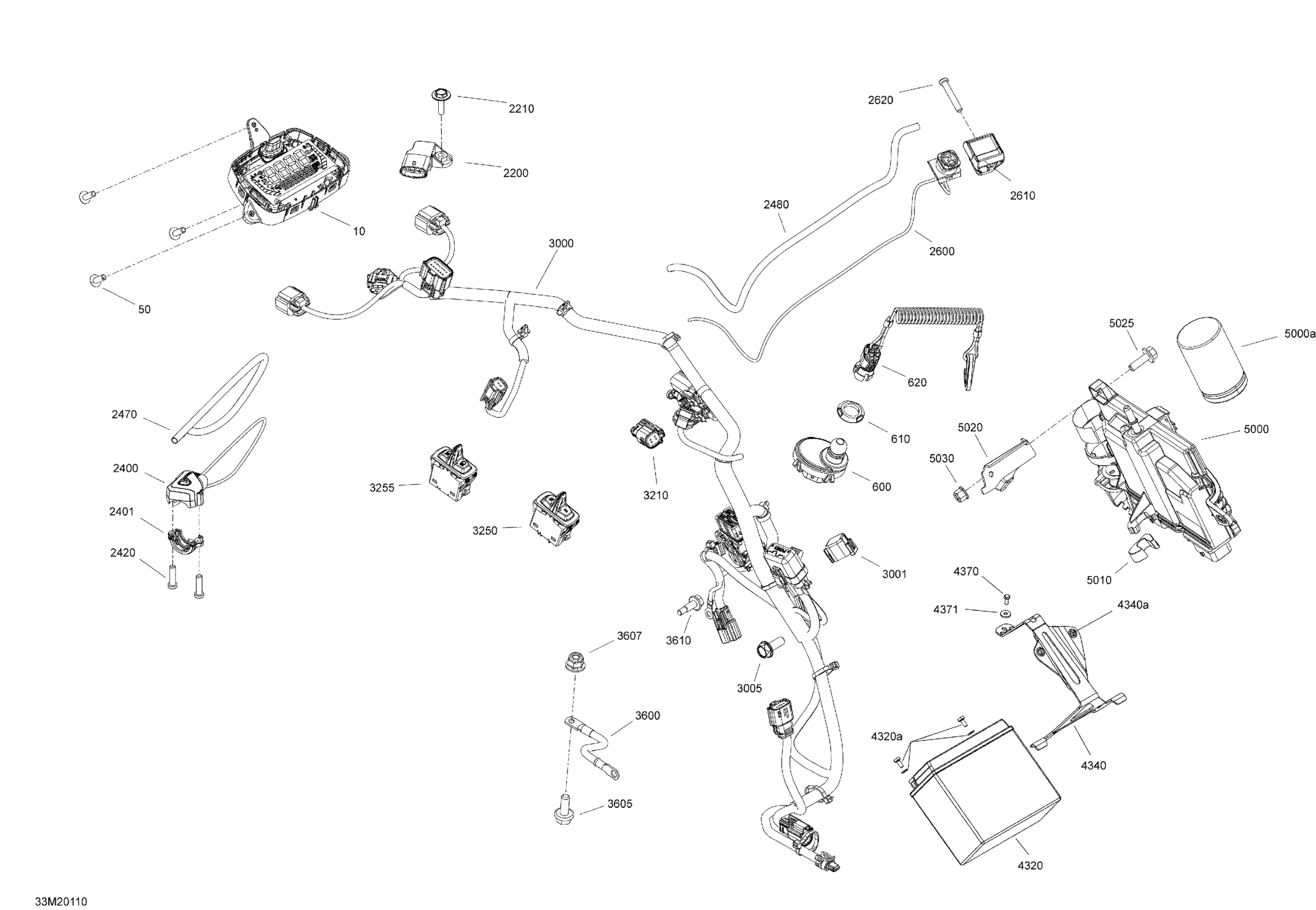

Ski-Doo FREERIDE 146 850 E-TEC - Europe, 2020 Electric - System Diagram

Multifunction Gauge Compact Mono

515178810

$495.35

Torx Truss Screw K40 X 12

250000577

$1.74

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

Safety Nut (DESS Switch)

278002963

$2.72

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

Pressure And Temperature Sensor

707000995

$70.82

Screw M4 X 16

250000725

$2.87

Ignition Switch

515178857

$68.43

Clamp

515177952

$8.57

Torx Screw

250000671

$0.83

Braided Sleeve

415130141

$56.12

Braided Sleeve

415130141

$56.12

Emergency Stop Switch

515177931

$74.58

Emergency Stop Switch Support

515177310

$8.60

Torx Screw #8-18

250000263

$1.02

Chassis Wiring Harness | Electric Start

515178551

$292.28

Diagnostic Cap

515178435

$7.24

Hex. Flange Screw M6 X 16

250001062

$1.43

4 Circuits Female Housing

515178177

$11.89

Switch Rocker Hand Warmer

515178462

$19.20

Switch Rocker Headlignt

515178463

$19.20

Ground Wire

515178248

$23.82

Hex. Flange Screw M6 X 16

207661644

$0.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M5 X 16

250000911

$0.70

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$134.52

Battery Bolt Kit

250000282

$2.95

Battery Strip | Includes 4340 to 4340a

515177870

$15.35

Insert

293450275

$9.89

Hex. Screw M5 X 12

207151244

$0.74

Washer | DS 650 X

391301600

$0.48

Igniton Module

512061093

$599.97

Capacitor

515177272

$85.35

Rubber Stopper

515178430

$2.09

Module Support

515178159

$4.28

Hex. Flange Screw M5 X 16

207651646

$1.74

Flange Elastic Nut M5

233251434

$1.66
