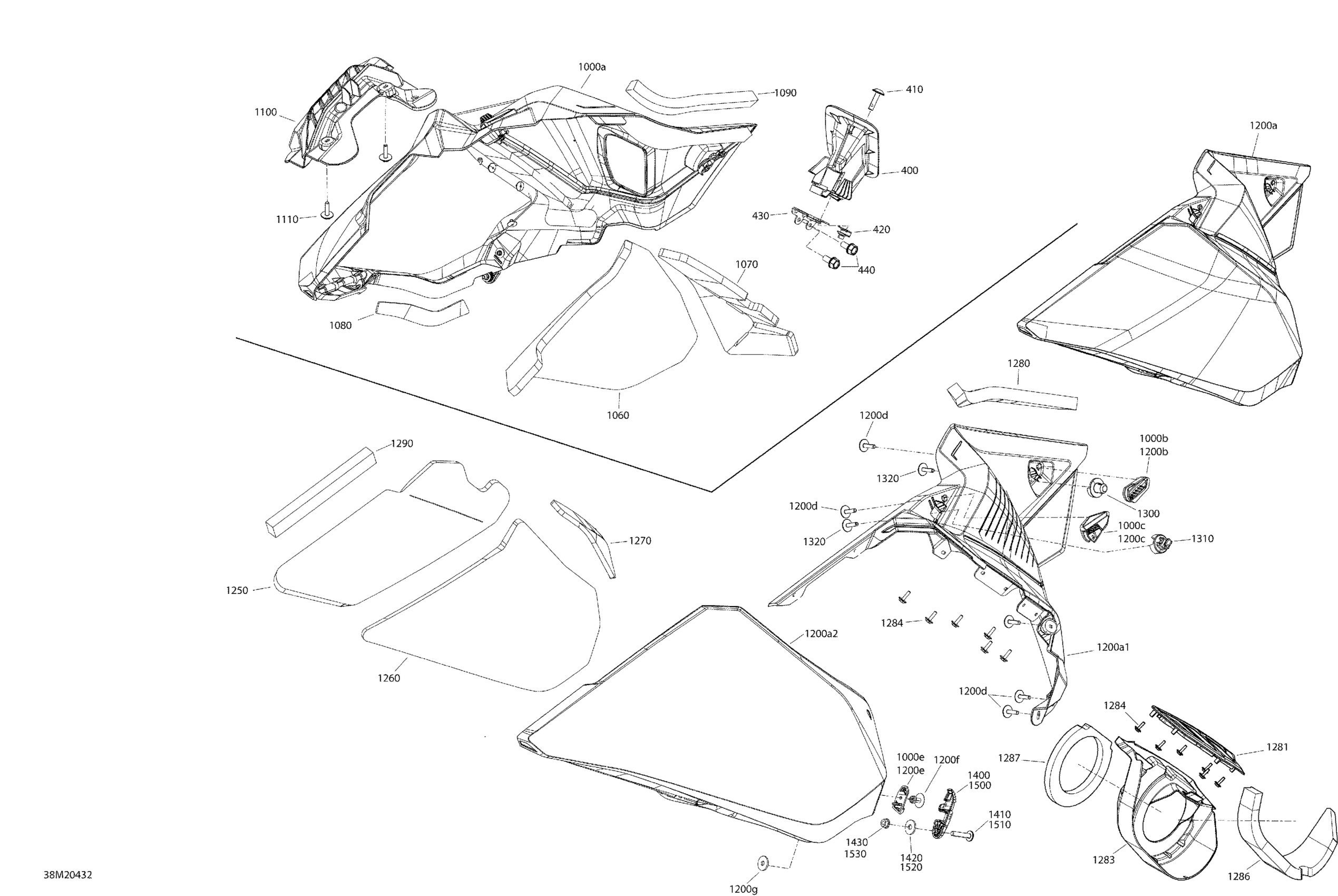

Ski-Doo FREERIDE 137 850 E-TEC - 2020 Body - Hood Section - Lateral Panel - Bright White - Dman_dshot Diagram

Description

Price

400

RH Console

517306759

$32.81

410

Torx Truss M5 X 20

250000586

$4.15

420

Panel Nut M5 X 0.8

250000958

$4.00

430

Rope Guide

517306315

$5.45

440

Hex. Flange Screw M6 X 12

210261250

$1.79

1000a

RH Panel | Manuel and SHOT Start

517307058

$191.76

1000b

RH Rear Latch

517305773

$13.79

1000c

RH Front Latch

517305979

$13.46

1000e

RH Hook

517306311

$10.49

1060

RH Central Panel Foam

517306188

$27.58

1070

RH Rear Panel Foam

517306586

$10.15

1080

Rubber Sheet

517306262

$26.09

1090

RH Rear Panel Foam

517306480

$9.82

1100

Deep Black, RH Grille

517305862

$28.33

1110

Screw M4 X 16

250000725

$3.30

1200a

Dazzling Blue, LH Panel | Model Blue/White

517307060

$191.76

1200a1

Not Available As Spare Parts

XXX

Unavailable

1200a2

Not Available As Spare Parts

XXX

Unavailable

1200b

LH Rear Latch

517305774

$13.79

1200c

LH Front Latch

517305980

$13.79

1200d

Screw M4 X 16

250000725

$3.30

1200e

LH Hook

517306312

$10.49

1200f

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1200g

Washer

517124300

$0.18

1250

LH Front Panel Foam

517305769

$16.39

1260

Foam

517307029

$14.72

1270

Not Available As Spare Parts

XXX

Unavailable

1280

LH Rear Panel Foam

517306479

$9.82

1281

LH Grille

517306937

$14.24

1283

Duct

517307283

$14.90

1284

Screw M4 X 16

250000725

$3.30

1286

Duct Foam

517306960

$13.22

1287

Foam

517307284

$4.30

1290

Foam

517306594

$9.82

1300

Rear Stud

517305985

$14.55

1310

Front Stud

517305988

$14.90

1320

Screw M4 X 16

250000725

$3.30

1400

RH Lower Latch

517306309

$15.64

1410

Torx Screw M5 X 25

250000762

$2.00

1420

Washer

517124300

$0.18

1430

Hex. Flange Nut M5

233151414

$0.52

1500

LH Lower Latch

517306310

$15.64

1510

Torx Screw M5 X 25

250000762

$2.00

1520

Washer

517124300

$0.18

1530

Hex. Flange Nut M5

233151414

$0.52
