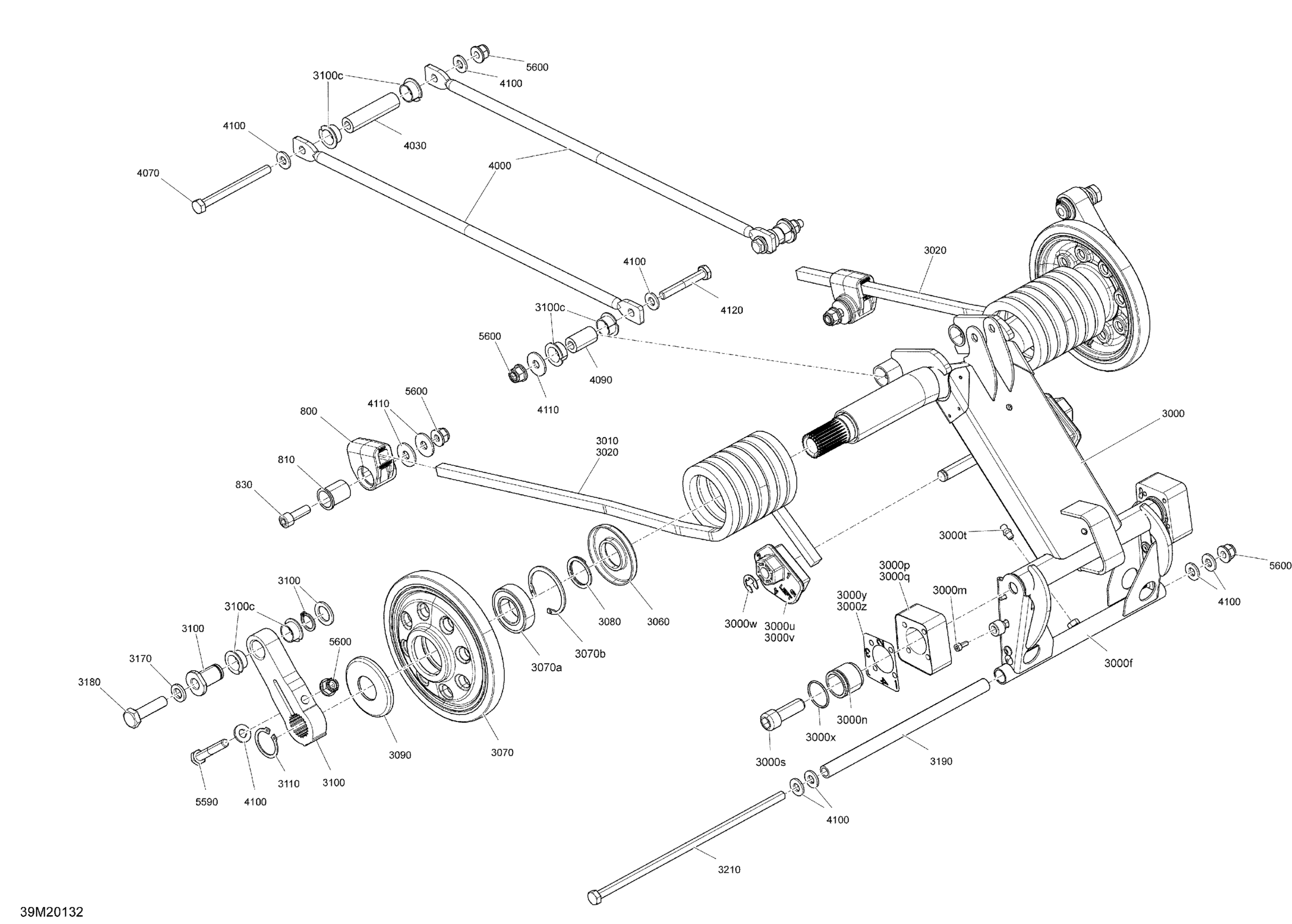

Ski-Doo FREERIDE 137 850 E-TEC - 2020 Suspension, Rear - Upper Section Diagram

#

Description
Price

800

Spring Support Kit

861805547

$8.14

810

Spring Support Kit

861805547

$8.14

830

Socket Screw M8 X 25

205082554

$1.74

3000

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$267.66

3000f

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$118.43

3000m

Socket Head Screw M4X 10

205041060

$1.74

3000n

Guide Block

503192749

$5.85

3000p

LH Cam Block

503192918

$12.65

3000q

RH Cam Block

503192919

$12.65

3000s

Socket Head Screw M12 X 35

205523554

$4.28

3000t

Grease Fitting

408200700

$2.80

3000u

LH Cam Adjuster

503191565

$13.95

3000v

RH Cam Adjuster

503191566

$13.95

3000w

E-Circlip

293370013

$0.62

3000x

O-Ring

503192921

$2.25

3000y

LH Block Sticker Decal

516004900

$16.12

3000z

RH Block Sticker Decal

516004901

$16.12

3010

Black Lh Spring

503192105

$77.66

3020

Black, RH Spring Square

503192104

$77.66

3060

Labyrinth Seal

503190434

$5.85

3070

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$46.12

3070a

Ball Bearing

503193548

$16.89

3070b

Retaining Ring

415129780

$13.88

3080

Axle Spring

503189146

$7.54

3090

Labyrinth Ring

503192592

$4.66

3100

Link Ass'y | Includes 3100 to 3100f

503195985

$77.66

3100c

Swivel Bushing

503191555

$5.71

3110

Retaining Ring

293370080

$2.12

3170

Washer

503192496

$0.75

3180

Cap Screw Hex. M10 X 40

207204056

$6.18

3190

Pivot Arm Axle

503189156

$20.74

3210

Bolt M8 X 248mm

503192440

$29.97

4000

Link Rod

503193005

$27.66

4030

Axle Bar (Long)

503190643

$15.35

4070

Screw M8 X 90

503193372

$4.28

4090

Axle Bar

503192555

$11.40

4100

Washer

503192494

$3.11

4110

Flat Washer 8 mm

234082410

$1.11

4120

Hex. Screw M8 X 55

207085556

$1.65

5590

Hex. Flange Screw M8 X 40

207684044

$1.25

5600

Elastic Flange Nut M8

233281466

$0.83
