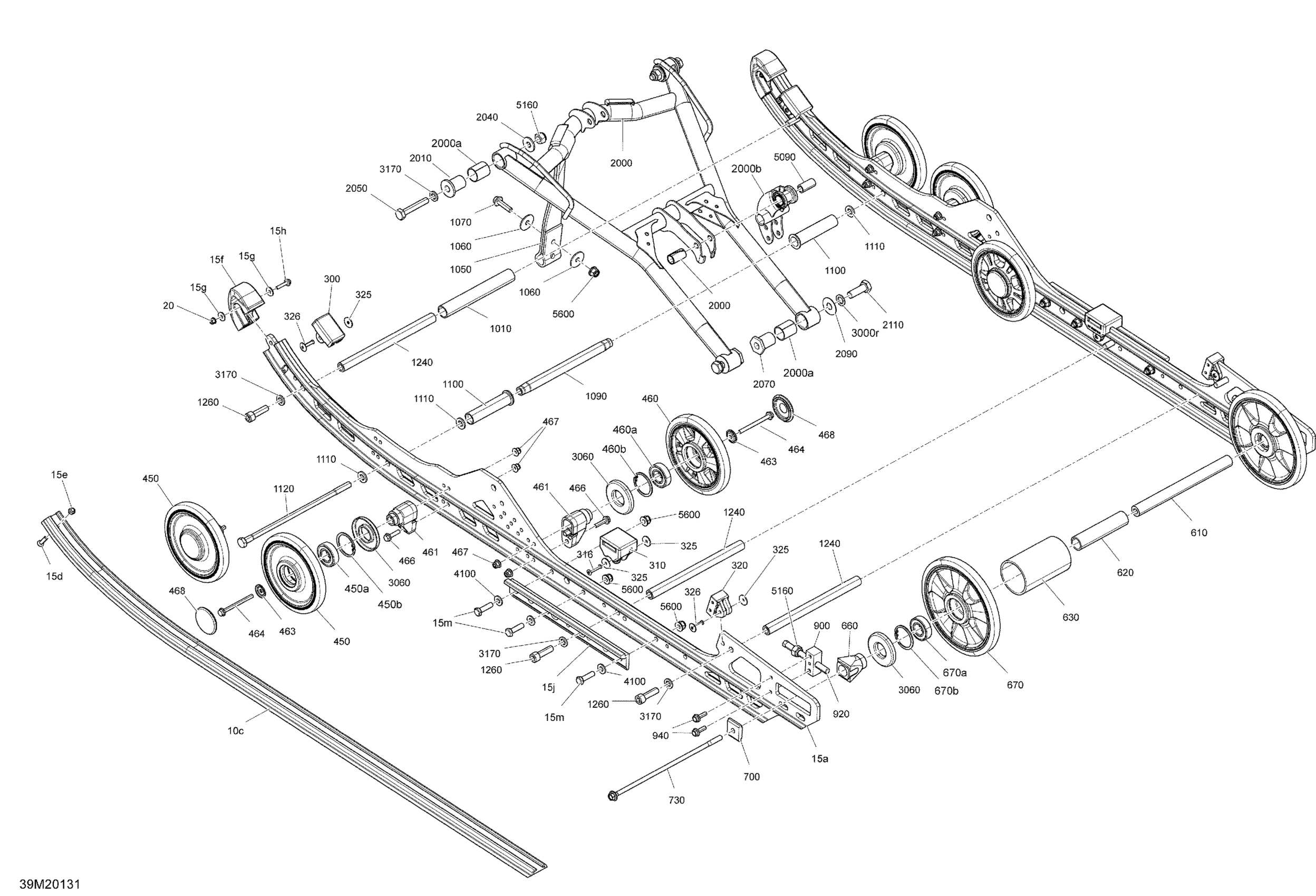

Ski-Doo FREERIDE 137 850 E-TEC - 2020 Suspension, Rear - Lower Section Diagram

#

Description
Price

10c

Black, Slider Shoe 137''

503191306

$27.66

15a

White, Runner 137" | Includes 15a to 15b

503194533

$286.12

15d

Phillips Screw M6 X 25

208562531

$1.74

15e

Elastic Stop Nut M6

232561414

$1.55

15f

Slide Protector

503192530

$16.89

15g

Washer

250200140

$0.83

15h

Hex. Flange Screw M5 X 25

207652544

$0.42

15j

Black Reinforcement Runner

503193726

$54.58

15m

Hex. Cap Screw M8 X 30

207183054

$3.61

20

Flange Elastic Nut M5

233251434

$1.66

300

Rubber Stopper

503190576

$10.23

310

Rubber Stopper Ass'y | Includes 310 to 310b

503193717

$17.66

316

Pop Rivet 3/16"

293150013

$1.11

320

Rubber Stopper

503192750

$12.65

325

Washer

503191273

$1.06

326

Pop Rivet 3/16

293150224

$0.98

450

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

450a

Ball Bearing | Package-STD

503190396

$7.12

450b

Retaining Ring

415129371

$8.92

460

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$46.12

460a

Ball Bearing | Package-STD

503190396

$7.12

460b

Retaining Ring

415129371

$8.92

461

Casted Support

503193894

$12.75

463

Wheel Cup M6

503191820

$4.66

464

Hex. Flange Screw M6 X 70

250000944

$3.61

466

Hex. Flange Screw M6 X 25

250000945

$3.61

467

Hex. Flange Elastic Nut M6

233261466

$1.66

468

Black, Wheel Cap

503192771

$2.28

610

Rear Axle

503194200

$72.28

620

Rear Spacer

503191263

$15.35

630

Bushing

503193097

$7.52

660

Rear Wheel Spacer

503190428

$6.06

670

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$49.97

670a

Ball Bearing | Package-STD

503190396

$7.12

670b

Retaining Ring

415129371

$8.92

700

Axle Slider

503194412

$11.45

730

Bolt

503194265

$26.89

900

Tensioner

503193808

$38.43

920

Hex Screw M10 x 100

230100054

$5.29

940

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

1010

Spacer

503196943

$7.58

1050

Stopper Strap

503192759

$25.35

1060

Flat Washer 8 mm

250200128

$1.74

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

1090

Pivot Axle

503193435

$38.43

1100

Center Bushing

503191259

$8.97

1110

Flat Washer

250200143

$2.63

1120

Bolt M10 X 251MM

503193227

$16.12

1240

Axle Strap

503191260

$29.20

1260

Socket Head Screw M10 X 35

205503554

$6.18

2000

Front Arm Ass'y | Included 2000 to 2000g

503194529

$447.66

2000a

Bushing

503191554

$5.88

2000b

Rocker

503192531

$78.43

2010

Axle

503190698

$17.66

2040

Washer

503191926

$1.57

2050

Hex. Cap Screw M10 X 60

207006056

$6.18

2070

Lower Axle

503191966

$15.35

2090

Washer

503190656

$2.91

2110

Hex. Cap Screw M12 X 35

250000537

$2.63

3000r

Washer

503192491

$4.38

3060

Labyrinth Seal

503190434

$5.85

3170

Washer

503192496

$0.75

4100

Washer

503192494

$3.11

5090

Bushing | Includes 240d to 240d1

503189282

$4.18

5160

Elastic Locking Nut M10

233601466

$1.74

5600

Elastic Flange Nut M8

233281466

$0.83
