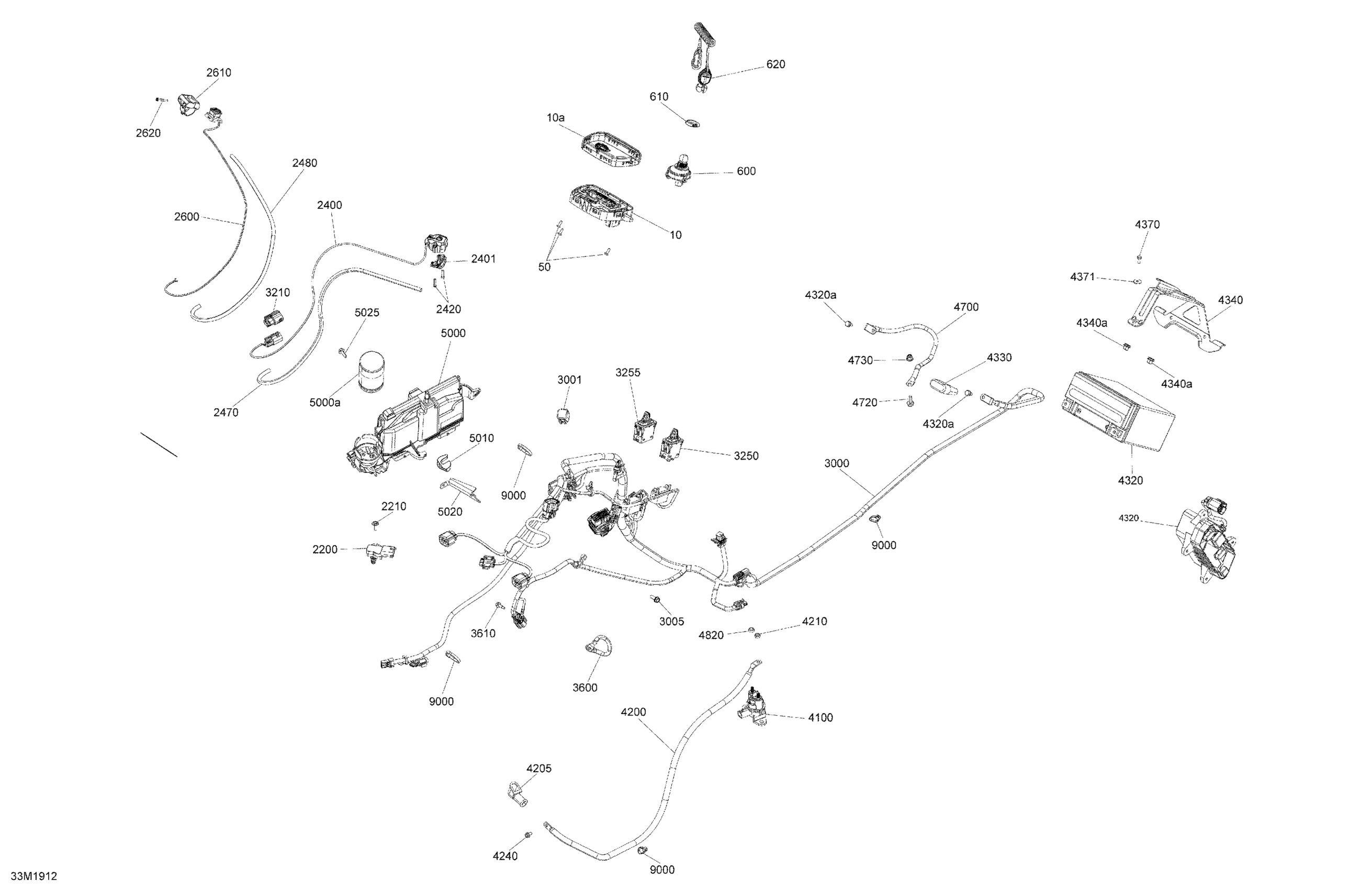

Ski-Doo FREERIDE 137 850 E-TEC, 2019 Electric - System Diagram

#

Description
Price

10

Multifunction Gauge Compact Mono

515178810

$569.99

50

Torx Truss Screw K40 X 12

250000577

$2.11

600

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

2200

Pressure And Temperature Sensor

707000995

$88.99

2210

Screw M4 X 16

250000725

$3.49

2400

Ignition Switch

515178857

$69.99

2401

Clamp

515177952

$8.79

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515177931

$76.49

2610

Emergency Stop Switch Support

515177310

$9.19

2620

Torx Screw #8-18

250000263

$1.04

3000

Chassis Wiring Harness

515178550

$309.99

3000

Chassis Wiring Harness | Electric Start

515178551

$309.99

3001

Diagnostic Cap

515178435

$8.79

3005

Hex. Flange Screw M6 X 16

250001062

$1.57

3210

4 Circuits Female Housing

515178177

$12.18

3250

Switch Rocker Hand Warmer

515178462

$20.49

3255

Switch Rocker Headlignt

515178463

$20.49

3600

Ground Wire

515178248

$24.99

3610

Hex. Flange Screw M5 X 16

250000911

$0.85

4100

Starter Relay

278003012

$42.49

4200

Positive Wire

515178553

$29.99

4205

Protector Cap

710000495

$10.99

4210

Elastic Stop Nut M6

232561414

$0.55

4240

Hex. Flange Screw M5 X 10

207551044

$4.12

4320

Ultracapacitor Module | E-TEC SHOT engine starter

515178479

$509.99

4320

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

4320a

Battery Bolt Kit

250000282

$7.29

4321

Hex. Flange Nut M5

233151414

$0.55

4323

Rubber Mount

707000746

$9.19

4330

Protector Cap | STD

710001817

$11.12

4340

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

4340a

Insert

293450275

$12.99

4370

Hex. Screw M5 X 12

207151244

$0.90

4371

Washer | DS 650 X

391301600

$0.48

4700

Ground Wire

515178155

$26.99

4720

Hex. Flange Screw M6 X 16

207661644

$0.74

4730

Elastic Flange Nut M6 X 1.0

233261416

$2.11

4820

Elastic Stop Nut M6

232561414

$0.55

5000>5000a

Igniton Module

512061093

$589.99

5000>5000c

Igniton Module | E-TEC SHOT engine starter

512061190

$589.99

5000a

Capacitor

515177272

$90.99

5000b

Housing 6 circuits | E-TEC SHOT engine starter

515178385

$13.24

5000c

Male FCI Terminal | E-TEC SHOT engine starter

278003871

$6.29

5010

Rubber Stopper

515178430

$2.11

5020

Module Support

515178159

$4.44

5025

Hex. Flange Screw M5 X 16

207651646

$2.11
