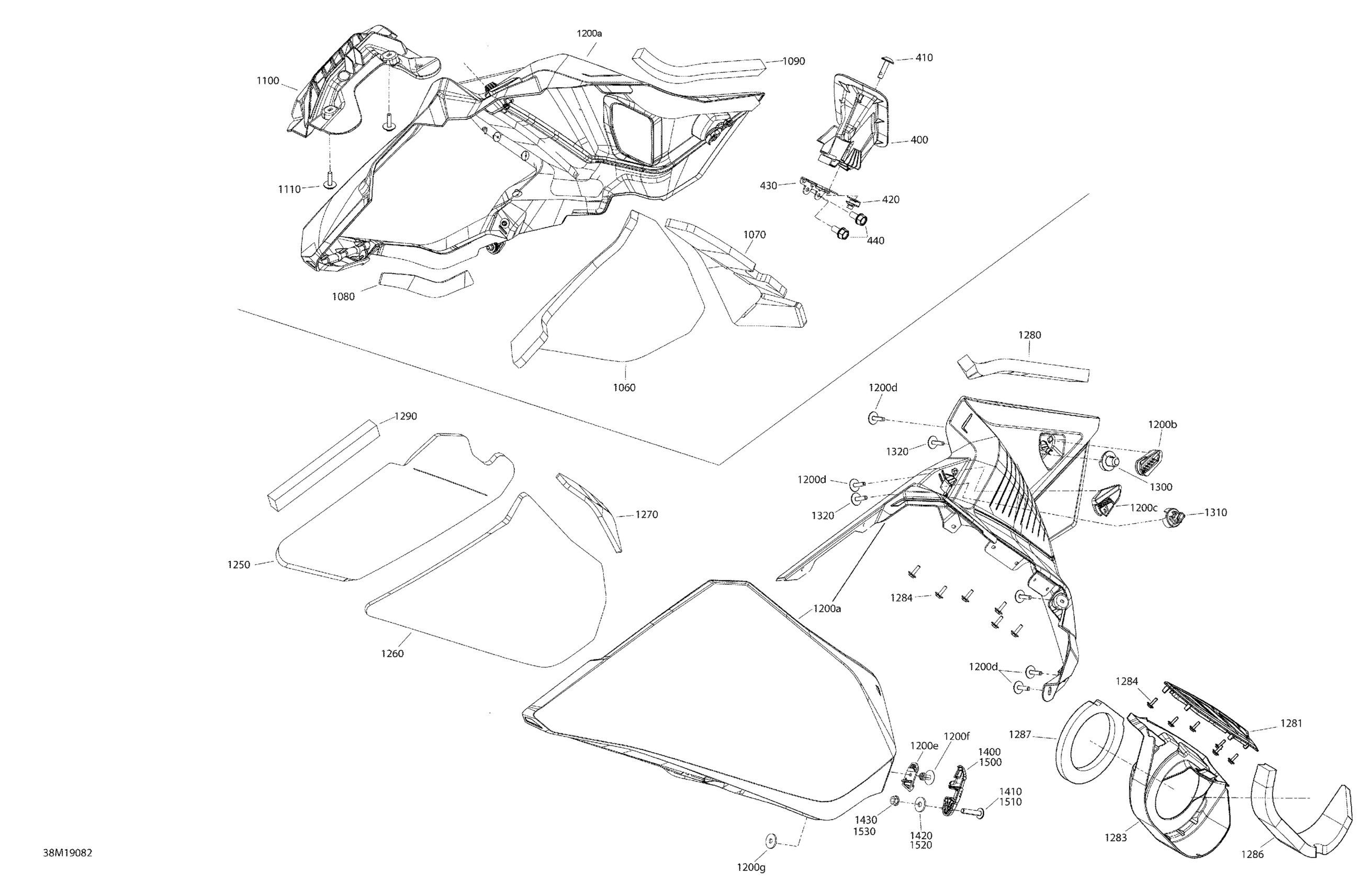

Ski-Doo FREERIDE 137 850 E-TEC, 2019 Hood - Panel Section Diagram

#

Description
Price

400

RH Console

517306759

$35.99

410

Torx Truss M5 X 20

250000586

$4.44

420

Panel Nut M5 X 0.8

250000958

$4.23

430

Rope Guide

517306315

$5.72

440

Hex. Flange Screw M6 X 12

210261250

$1.90

1060

RH Central Panel Foam

517306188

$29.99

1070

RH Rear Panel Foam

517306586

$13.49

1080

Rubber Sheet

517306262

$30.99

1090

RH Rear Panel Foam

517306480

$11.99

1100

Deep Black, RH Grille

517305862

$31.99

1110

Screw M4 X 16

250000725

$3.49

1200a

LH Panel

517306659

$299.99

1200a

RH Panel | Electric Start

517306655

$214.99

1200a

RH Panel | Except Electric Start

517306657

$214.99

1200b

LH Rear Latch

517305774

$18.49

1200b

RH Rear Latch

517305773

$18.49

1200c

LH Front Latch

517305980

$18.49

1200c

RH Front Latch

517305979

$16.79

1200d

Screw M4 X 16

250000725

$3.49

1200e

LH Hook

517306312

$12.99

1200e

RH Hook

517306311

$12.99

1200f

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1200g

Washer

517124300

$0.19

1250

LH Front Panel Foam

517305769

$19.99

1260

LH Central Panel Foam

517306189

$18.49

1280

LH Rear Panel Foam

517306479

$11.99

1281

LH Grille

517306937

$16.86

1282

Push Nut

732610072

$2.19

1283

Duct

517307283

$18.49

1284

Screw M4 X 16

250000725

$3.49

1286

Duct Foam

517306960

$14.49

1287

Duct Foam

517306961

$14.49

1290

Foam

517306594

$11.99

1300

Rear Stud

517305985

$15.36

1310

Front Stud

517305988

$16.18

1320

Screw M4 X 16

250000725

$3.49

1400

RH Lower Latch

517306309

$18.99

1410

Torx Screw M5 X 25

250000762

$2.11

1420

Washer

250200140

$1.01

1430

Hex. Flange Nut M5

233151414

$0.55

1500

LH Lower Latch

517306310

$18.99

1510

Torx Screw M5 X 25

250000762

$2.11

1520

Washer

250200140

$1.01

1530

Hex. Flange Nut M5

233151414

$0.55
