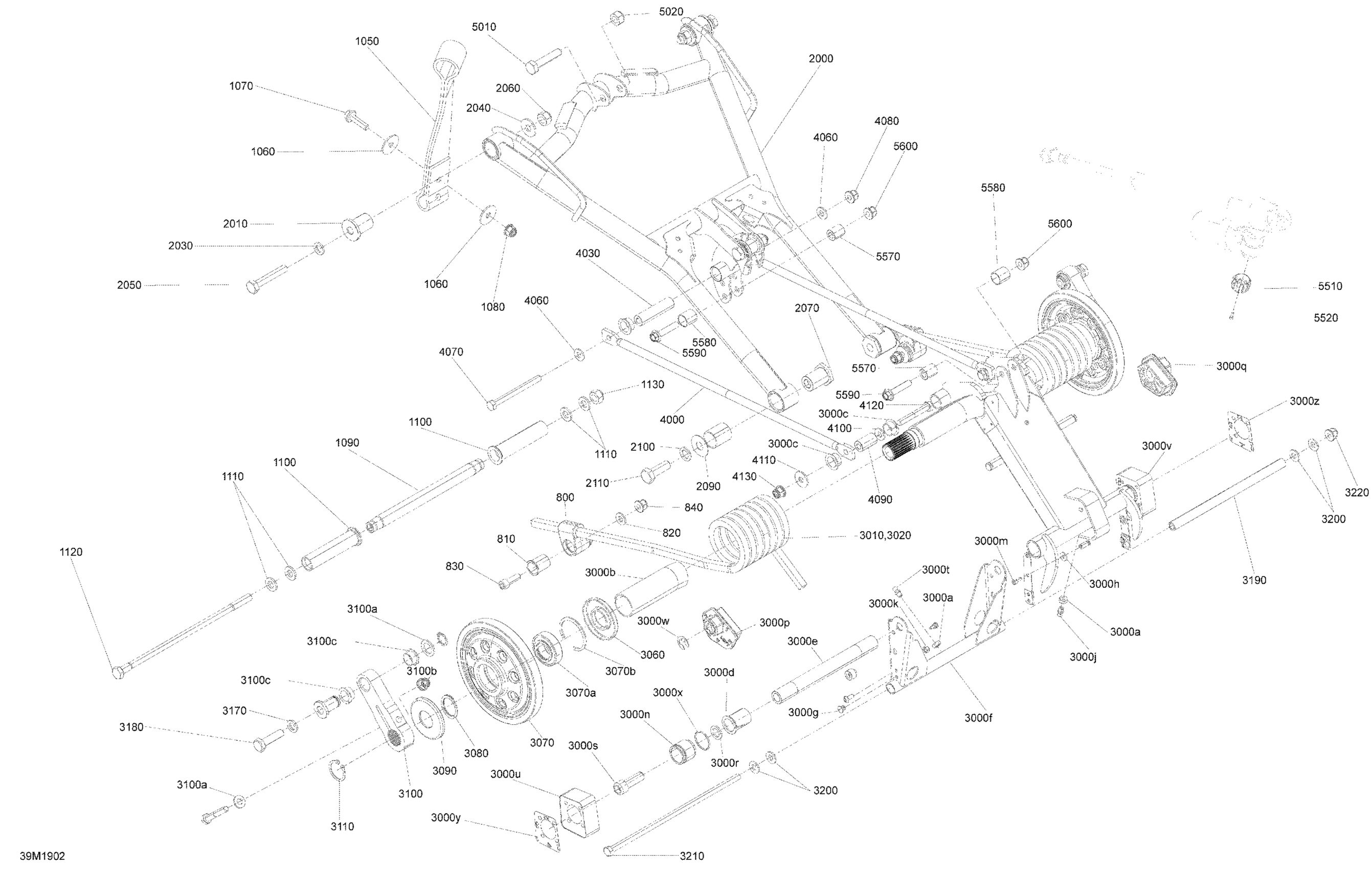

Ski-Doo 001 - FREERIDE 137 850 E-TEC, 2019 08- Rear Suspension - Upper Section Diagram

#

Description
Price

800

Spring Support Kit

861805547

$10.49

810

Spring Support Kit

861805547

$10.49

820

Flat Washer 8 mm

234082410

$1.47

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

1050

Stopper Strap

503192759

$25.99

1060

Flat Washer 8 mm

250200128

$4.44

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

1080

Elastic Flange Nut M8

233281466

$1.01

1090

Pivot Axle

503193435

$39.99

1100

Center Bushing

503191259

$11.49

1120

Bolt M10 X 251MM

503193227

$17.29

1130

Flange Elastic Nut M10

233201466

$3.17

1200

Black Reinforcement Runner

503193726

$53.99

1210

Washer

503192494

$3.17

1220

Hex. Cap Screw M8 X 30

207183054

$4.44

1230

Elastic Flange Nut M8

233281466

$1.01

2000

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

2010

Axle

503190698

$20.99

2030

Washer

503192496

$0.77

2040

Washer

503191926

$1.58

2050

Hex. Cap Screw M10 X 60

207006056

$7.51

2060

Elastic Locking Nut M10

233601466

$2.11

2070

Lower Axle

503191966

$15.89

2090

Washer

503190656

$2.96

2100

Washer

503192491

$4.54

2110

Hex. Cap Screw M12 X 35

250000537

$3.17

3000

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$285.99

3000a

Hexagonal Nut M6

232061404

$0.34

3000b

Bushing

503192767

$17.39

3000c

Swivel Bushing

503191555

$7.83

3000d

Cushion

503191640

$5.93

3000e

Lower Shaft

503192981

$20.99

3000f

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$124.99

3000g

Pop Rivet 3/16"

390402200

$0.35

3000h

Flat Washer

517225900

$0.18

3000j

Grease Fitting

408200700

$3.49

3000k

Elastic Stop Nut M5

232551414

$0.87

3000m

Socket Head Screw M4X 10

205041060

$2.11

3000n

Guide Block

503192749

$6.19

3000p

LH Cam Block

503192918

$14.99

3000q

RH Cam Block

503192919

$14.99

3000r

Washer

503192491

$4.54

3000s

Socket Head Screw M12 X 35

205523554

$4.44

3000t

Grease Fitting

408200700

$3.49

3000u

LH Cam Adjuster

503191565

$16.49

3000v

RH Cam Adjuster

503191566

$16.49

3000w

E-Circlip

293370013

$0.65

3000x

O-Ring

503192921

$2.32

3000y

LH Block Sticker Decal

516004900

$18.99

3000z

RH Block Sticker Decal

516004901

$18.99

3010

Black Lh Spring

503192105

$79.49

3020

Black, RH Spring Square

503192104

$79.49

3060

Labyrinth Seal

503190434

$6.09

3070

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$48.49

3070a

Ball Bearing

503193548

$17.99

3070b

Retaining Ring

415129780

$15.79

3080

Axle Spring

503189146

$9.59

3090

Labyrinth Ring

503192592

$4.99

3100

Link Ass'y | Includes 3100 to 3100f

503195985

$75.99

3100a

Washer

503192494

$3.17

3100b

Elastic Flange Nut M8

233281466

$1.01

3100c

Swivel Bushing

503191555

$7.83

3110

Retaining Ring

293370080

$2.29

3170

Washer

503192496

$0.77

3180

Cap Screw Hex. M10 X 40

207204056

$7.51

3190

Pivot Arm Axle

503189156

$21.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Link Rod

503193005

$28.49

4030

Axle Bar (Long)

503190643

$17.39

4090

Axle Bar

503192555

$14.15

4100

Washer

503192494

$3.17

4110

Flat Washer 8 mm

234082410

$1.47

4120

Hex. Screw M8 X 55

207085556

$1.69

4130

Elastic Flange Nut M8

233281466

$1.01

4060

Washer

503192494

$3.17

4070

Screw M8 X 90

503193372

$4.44

4080

Elastic Flange Nut M8

233281466

$1.01

4100

Washer

503192494

$3.17

5570

Axle Shock Absorber

503196509

$12.58

5580

Leg Cushion

505072663

$9.23

5590

Hex. Flange Screw M8 X 40

207684044

$1.48

5600

Elastic Flange Nut M8

233281466

$1.01
