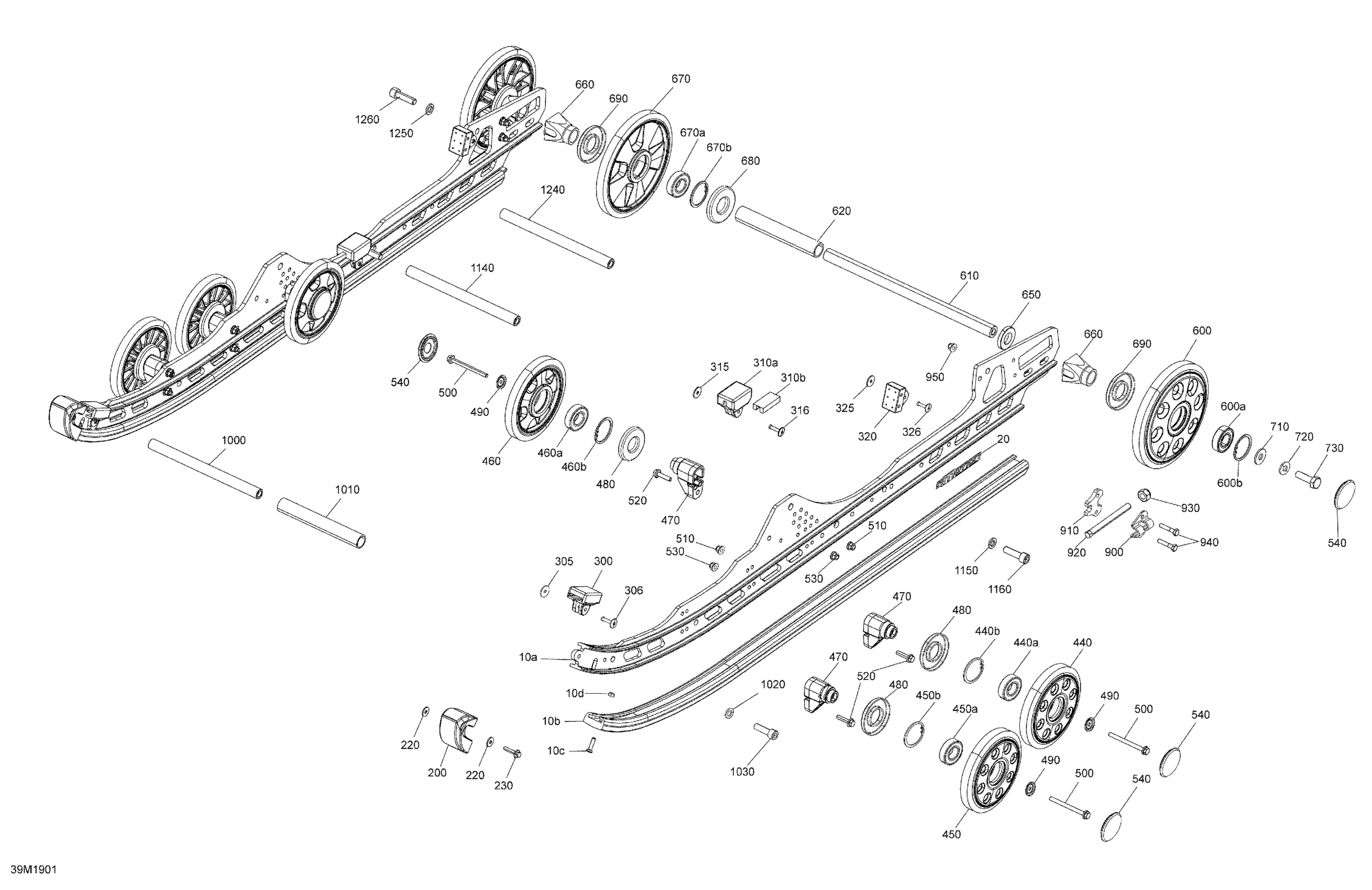

Ski-Doo 001 - FREERIDE 137 850 E-TEC, 2019 08- Rear Suspension - Lower Section Diagram

#

Description
Price

10a

Can-Am Red, Runner 137" | Includes 10a to 10a1

503193554

$309.99

10a1

Bare, Runner 137" | Not Shown

503193730

$244.99

10b

Black, Slider Shoe 137''

503191306

$29.49

10c

Phillips Screw M6 X 25

208562531

$2.11

10d

Elastic Stop Nut M6

232561414

$0.55

200

Slide Protector

503192530

$19.99

220

Washer

250200140

$1.01

230

Hex. Flange Screw M5 X 25

207652544

$0.50

300

Rubber Stopper

503190576

$12.99

305

Washer

503191273

$1.35

306

Pop Rivet 3/16

293150224

$1.01

310

Rubber Stopper Ass'y | Includes 310 to 310b

503193717

$19.49

310a

Reinforcement Stopper

572084800

$12.99

315

Washer

503191273

$1.35

316

Pop Rivet 3/16"

293150013

$1.37

320

Rubber Stopper

503192750

$14.99

325

Washer

503191273

$1.35

326

Pop Rivet 3/16

293150224

$1.01

440

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

440a

Ball Bearing | Package-STD

503190396

$14.30

440b

Retaining Ring

415129371

$12.01

450

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$48.49

450a

Ball Bearing | Package-STD

503190396

$14.30

450b

Retaining Ring

415129371

$12.01

460

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$48.49

460a

Ball Bearing | Package-STD

503190396

$14.30

460b

Retaining Ring

415129371

$12.01

470

Casted Support

503193894

$16.49

480

Labyrinth Seal

503190434

$6.09

490

Wheel Cup M6

503191820

$4.99

500

Hex. Flange Screw M6 X 70

250000944

$4.44

510

Hex. Flange Elastic Nut M6

233261466

$2.00

520

Hex. Flange Screw M6 X 25

250000945

$4.44

530

Hex. Flange Elastic Nut M6

233261466

$2.00

540

Black, Wheel Cap

503192771

$2.39

610

Rear Axle

503194200

$70.99

620

Rear Spacer

503191263

$18.49

630

Bushing

503193097

$18.49

660

Rear Wheel Spacer

503190428

$8.14

670

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$51.99

670a

Ball Bearing | Package-STD

503190396

$14.30

670b

Retaining Ring

415129371

$12.01

690

Labyrinth Seal

503190434

$6.09

700

Axle Slider

503194412

$14.49

730

Bolt

503194265

$27.49

735

Elastic Flange Nut M8

233281466

$1.01

900

Tensioner

503193808

$40.99

920

Hex Screw M10 x 100

230100054

$6.45

930

Elastic Locking Nut M10

233601466

$2.11

940

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1000

Axle Strap

503191260

$30.99

1010

Spacer

503196943

$10.99

1020

Flat Washer

250200143

$3.17

1030

Socket Head Screw M10 X 35

205503554

$7.51

1140

Axle Strap

503191260

$30.99

1150

Washer

503192496

$0.77

1160

Socket Head Screw M10 X 35

205503554

$7.51

1200

Black Reinforcement Runner

503193726

$53.99

1210

Washer

503192494

$3.17

1220

Hex. Cap Screw M8 X 30

207183054

$4.44

1230

Elastic Flange Nut M8

233281466

$1.01

1240

Axle Strap

503191260

$30.99

1250

Washer

503192496

$0.77

1260

Socket Head Screw M10 X 35

205503554

$7.51
