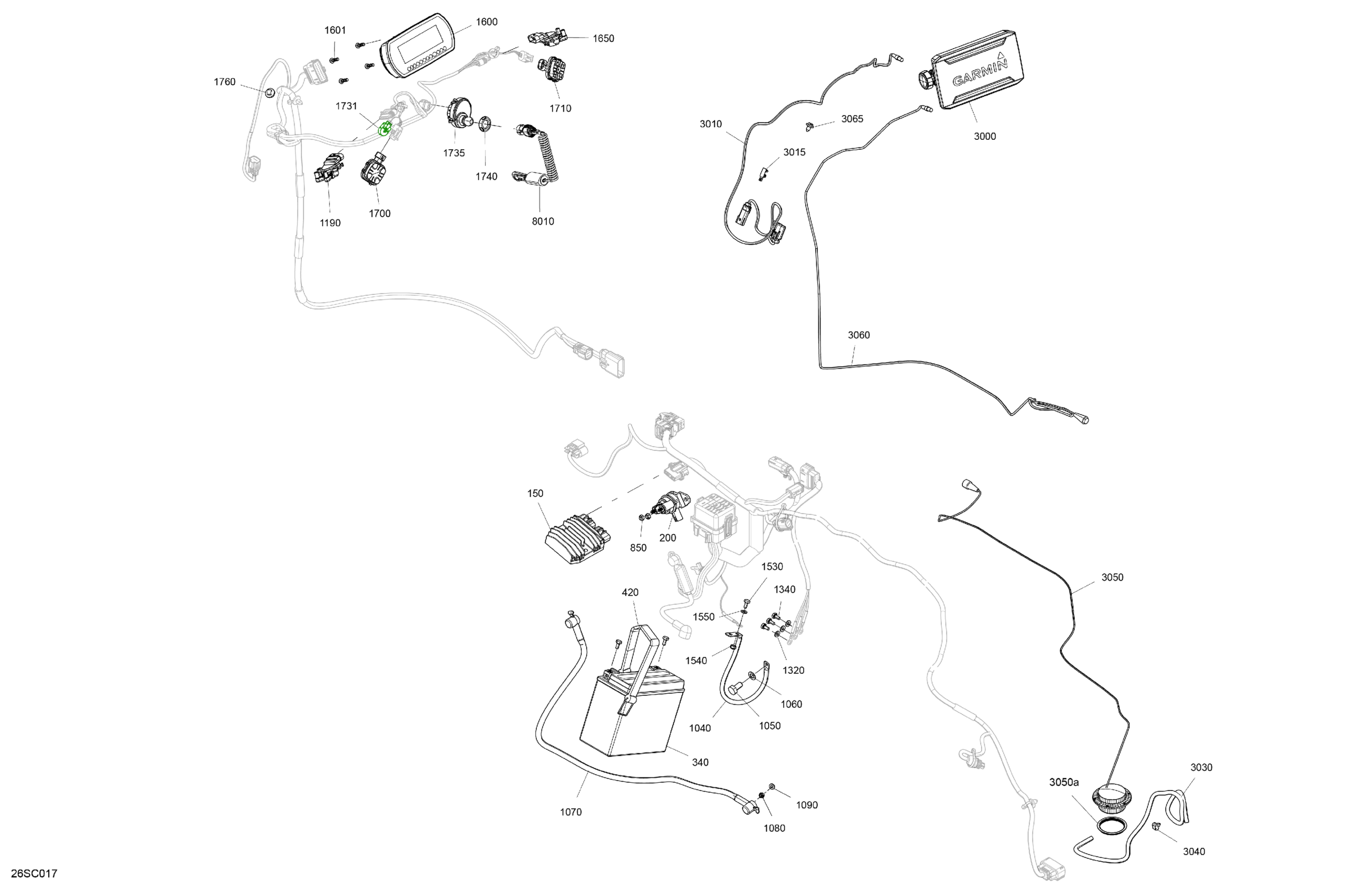

Sea-doo FISH PRO SCOUT 130, 2023 Electric - System Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

Starter Relay

278003012

$35.07

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Strap

293850141

$16.22

Elastic Stop Nut M6, Brass

232561200

$3.51

Ground Battery Cable

278003451

$31.17

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Stainless Flat Washer M6

234061600

$0.25

Starter Cable

278003369

$31.17

Elastic Stop Nut M6, Brass

232561200

$3.51

Stainless Flat Washer M6

234061600

$0.25

LH Throttle Sensor

278002284

$108.18

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Stainless Flat Washer M6

234061600

$0.25

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Elastic Stop Nut M6, Brass

232561200

$3.51

Stainless Flat Washer M6

234061600

$0.25

Multifunction Mono Compact Gauge

278003430

$532.06

Hex. Flange Screw K50 X 20

241152060

$1.57

Throttle Position Sensor

278002283

$94.22

Switch

278003821

$101.37

RH Switch Keypad

278003474

$101.37

Start/Stop Switch This part replaces 296000440.

296000440

$42.87

Terminal DESS One Wire

515179305

$60.42

Specialized Nut

278004274

$2.72

Mount Dart

710008294

$0.99

GPS Ass'y

278003998

$762.99

Echosounder Power Supply Harness

278003673

$74.07

Connector Support

515179692

$1.63

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

Mount Dart

710008294

$0.99

Transducer | Includes 3000 to 3000a

295100972

$341.22

Seal

292002447

$2.63

Transducer Harness

278003683

$86.42

Mount Dart

710008294

$0.99

Safety Lanyard Ass'y, RFID

278003400

$58.47
