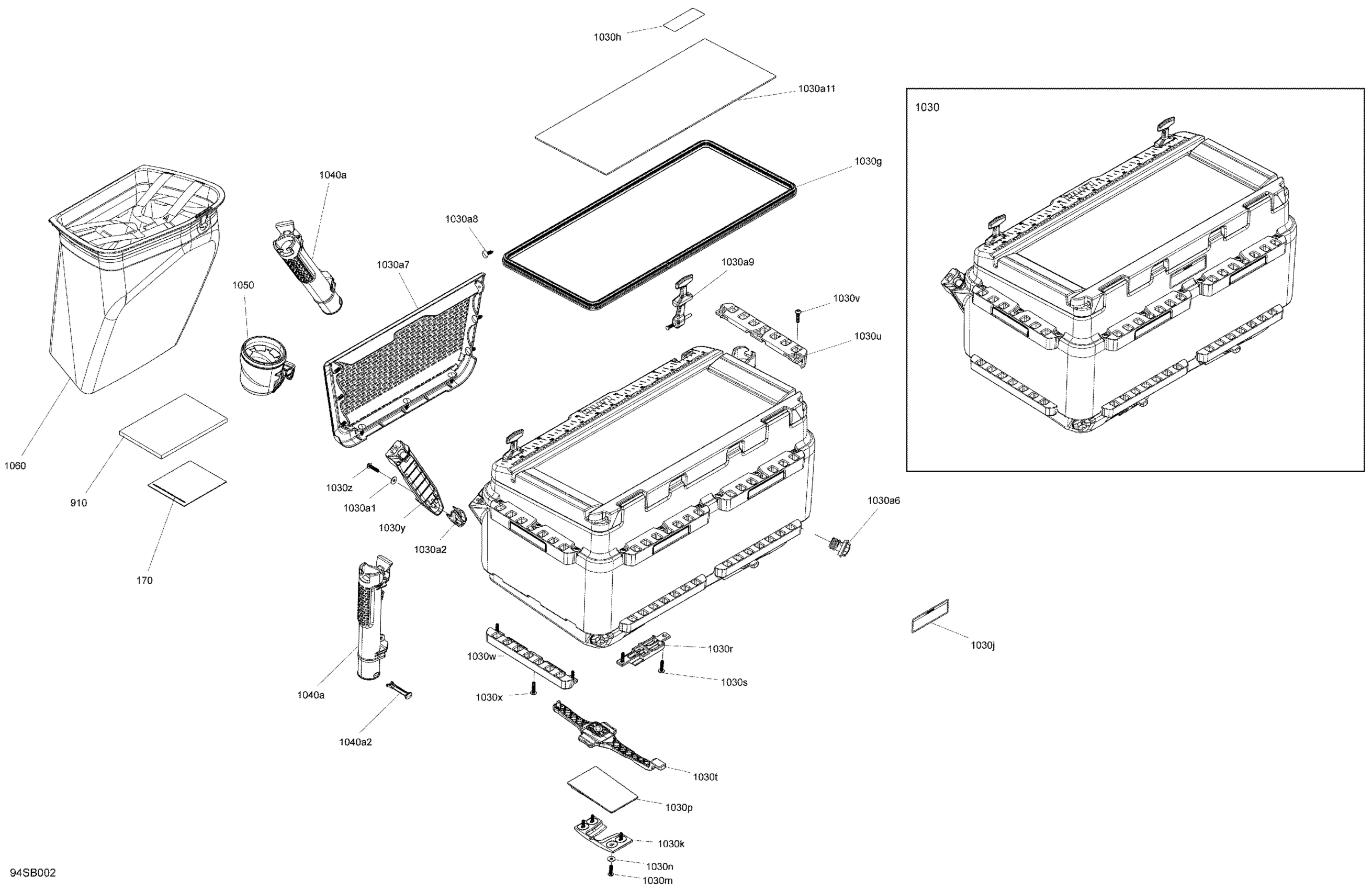

Sea-doo FISH PRO SCOUT 130, 2022 Miscellaneous - Utilities Diagram

Description

Price

170

Waranty Registration Form

219400038

Unavailable

910

English Operator Guide

219002225

Unavailable

1030

Cooler Ass'y | Includes 1030 to 1030am

269801151

$692.22

1030g

Cover Gasket

269801261

$43.25

1030h

Warning Decal

219905522

Unavailable

1030j

Warning Decal

219905521

Unavailable

1030k

Under Cargo Anchorage

269800824

$6.28

1030m

Torx Screw Plastite M6

250000466

$5.62

1030n

Flat Washer M6, Stainless

234062600

$0.64

1030p

Cooler Reinforcement

269800832

$9.91

1030r

Plate Stop

269800825

$15.57

1030s

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1030t

Lever Latch

269800826

$24.02

1030u

Upper Rail

269800827

$7.62

1030v

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1030w

Lower Rail

269800830

$7.62

1030x

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1030y

Front Upper Rail

269800831

$7.62

1030z

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1030a1

Stainless Steel Flat Washer

234062670

$1.74

1030a2

Front Lower Rail

269800848

$7.62

1030a6

Drain Plug Ass'y

269800833

$22.72

1030a7

Net Cargo

269800829

$79.07

1030a8

Black Dart

293730083

$4.28

1030a9

Lid Latch

520002067

$6.49

1030a11

Anti Slip Mat

269800828

$24.67

1040a

Rod Support Kit | Includes 1040a to 1040a2

295100795

$38.01

1040a2

Rod Stopper

269800838

$3.85

1050

Cup Holder Kit

295101230

$35.07

1060

Cargo Bag Storage Kit

295100814

$66.92
