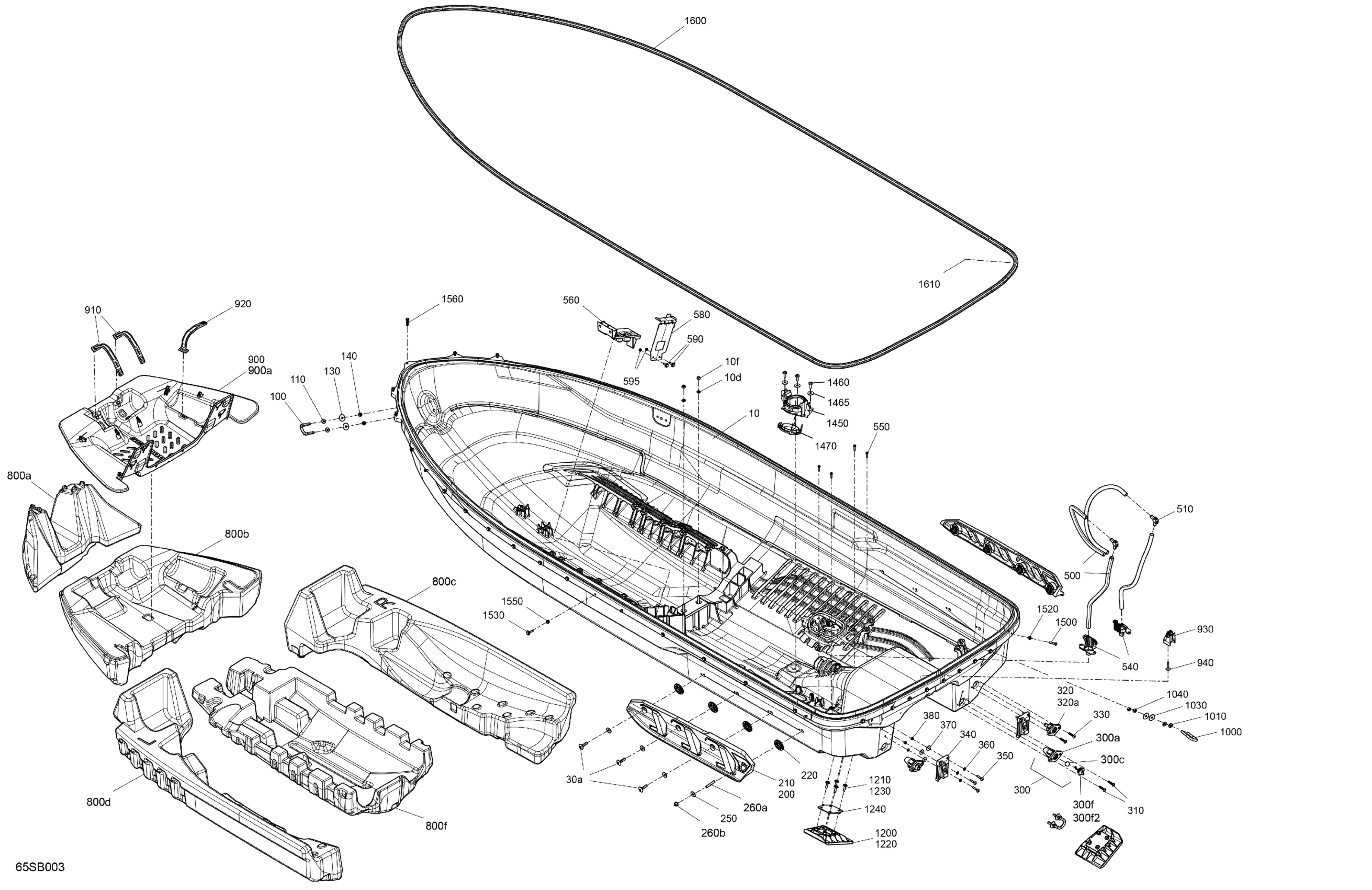

Sea-doo FISH PRO SCOUT 130, 2022 Body - Hull Diagram

Hull Ass'y | Includes 10 to 10f

292002587

$2.00

Flat Washer M8, Stainless

234080600

$1.48

Hex. Elastic Nut M8 Brass

232581200

$2.22

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$3.91

U-Clamp

292000933

$59.49

Flat Washer M8.5 x 18

293050001

$3.07

Flat Washer 8 mm, Stainless

250200175

$3.06

Hex. Elastic Nut M8 Brass

232581200

$2.22

RH Sponson

292001953

$54.99

LH Sponson

292001954

$65.99

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$7.09

Hex. Flange Nut M8

233181600

$1.05

Flat Washer 8 mm

234082410

$1.47

Socket Set Screw M8 x 50

206285044

$4.65

Hex. Flange Nut M8

233081416

$1.15

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

$15.49

Through Hull Fitting

292002765

$7.79

Floating Ball

293830080

$7.19

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

O-Ring

293300067

$1.04

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Through Hull Fitting Ass'y | Includes 320 to 320a

292002768

$14.49

Through Hull Fitting

292002765

$7.79

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.11

Ladder Attachment

292002113

$8.49

Truss Cone Torx Screw M6 X 30

250000924

$7.51

Stainless Flat Washer M6

234061600

$0.33

Flat Washer M6.6 X 22

250200022

$2.72

Elastic Stop Nut M6, Brass

232561200

$4.23

Polyurethane Hose 1000Mm Long | Not Shown

219704393

$7.20

Fitting Elbow 90°

293710152

$18.49

Pump Support

269800956

$3.39

Hex. Screw 10-14 X 7/8”

211000023

$3.59

Battery Support

292002395

$14.49

Battery Support

292002434

$14.49

Hex Screw M6 X 20

250000965

$2.11

Elastic Stop Nut M6, Brass

232561200

$4.23

Float Hull Front Upper

292002405

$36.99

Float Hull Front

292002399

$104.99

RH Center Float Hull

292002229

$104.99

LH Center Float Hull

292002230

$104.99

Float Hull Center

292002298

$104.99

Panel | Includes 900 to 900a

292002397

$54.99

Trunk Shield

292001868

$43.99

Strap

269502417

$17.69

Strap

269502417

$17.69

Strap Anchor

270000988

$10.28

Hexagonal Cap Screw M6 X35

250000399

$4.44

U-Clamp

292000933

$59.49

Flat Washer M8.5 x 18

293050001

$3.07

Flat Washer 8 mm, Stainless

250200175

$3.06

Hex. Elastic Nut M8 Brass

232581200

$2.22

LH Trim Tab

292002102

$18.49

Hexagonal Cap Screw M6 X 25

250000978

$4.44

RH Trim Tab

292002103

$18.49

Hexagonal Cap Screw M6 X 25

250000978

$4.44

Gasket

277002171

$4.33

Transducer Support

292002619

$9.79

Hexagonal Cap Screw M6 X 25

250000978

$4.44

Flat Washer

279000336

$11.57

Gasket

292002564

$20.49

Hex Sems Screw M6X30

250001183

$2.85

Nut Flange Elastic M6

233261200

$0.99

Hex Sems Screw M6X30

250001183

$2.85

Nut Flange Elastic M6

233261200

$0.99

Hex. Flange Screw M6.81 X 30

243163060

$2.32

Gasket

292002242

$54.99

Self Drilling Screw #8 X 3/4

250001132

$1.37
