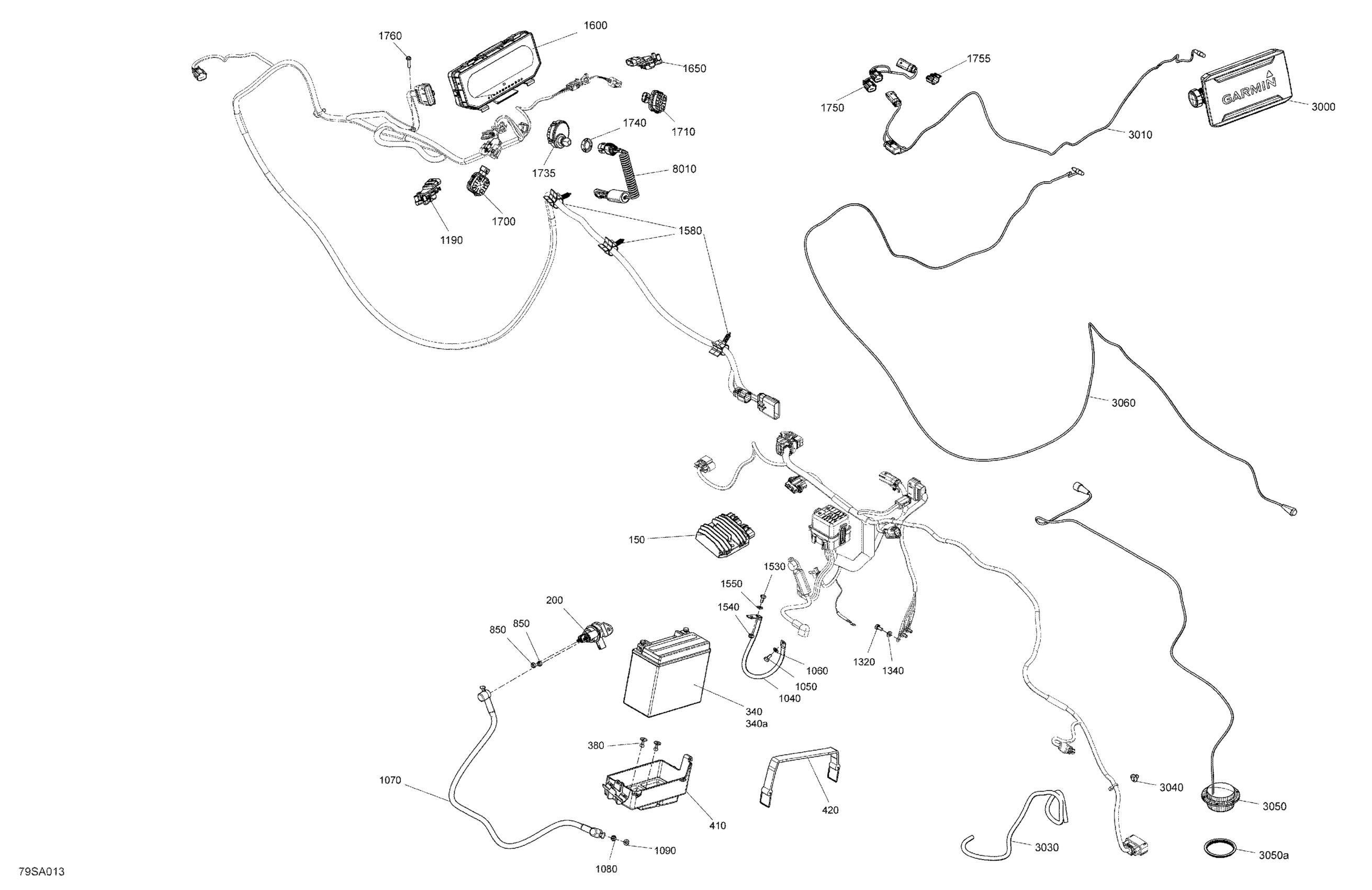

Sea-doo FISH PRO 170, 2021 Electric - System Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

Starter Relay

278003012

$35.07

Battery 12 Volt 18AH

296000449

$126.07

Battery Ass'y, 18 Amperes | Brazil

515179099

Unavailable

Battery Ass'y, 18 Amperes | Australia

830201279

Unavailable

Battery Ass'y, 18 Amperes | Australia

830201282

Unavailable

Battery Bolt Kit

250000282

$2.95

Pop Rivet 3/16"

293150123

$3.43

Battery Support

278003473

$22.72

Fuel Tank Strap

293850095

$14.27

Elastic Stop Nut M6, Brass

232561200

$3.51

Ground Battery Cable

278003451

$31.17

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Stainless Flat Washer M6

234061600

$0.25

Starter Cable

278003369

$31.17

Elastic Stop Nut M6, Brass

232561200

$3.51

Stainless Flat Washer M6

234061600

$0.25

LH Throttle Sensor

278002284

$108.18

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Stainless Flat Washer M6

234061600

$0.25

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Elastic Stop Nut M6, Brass

232561200

$3.51

Stainless Flat Washer M6

234061600

$0.25

Retainer

278003564

$6.57

Full Size Multifunction Mono Gauge

278003432

$729.07

Throttle Position Sensor

278002283

$94.22

Switch

278003821

$101.37

RH Switch Keypad

278003474

$101.37

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

Safety Nut (DESS Switch)

278002963

$2.72

Multiple Accessory Harness

278003684

$41.57

Connectors Support

278003734

$2.72

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Echosounder Kit

295100921

$1,239.99

Echosounder Power Supply Harness

278003673

$74.07

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

Mount Dart

293730040

$0.86

Transducer | Includes 103000 to 103000a

278003914

$349.99

Seal

292002447

$2.63

Transducer Harness

278003683

$86.42

Safety Lanyard Ass'y, RFID

278003400

$58.47
