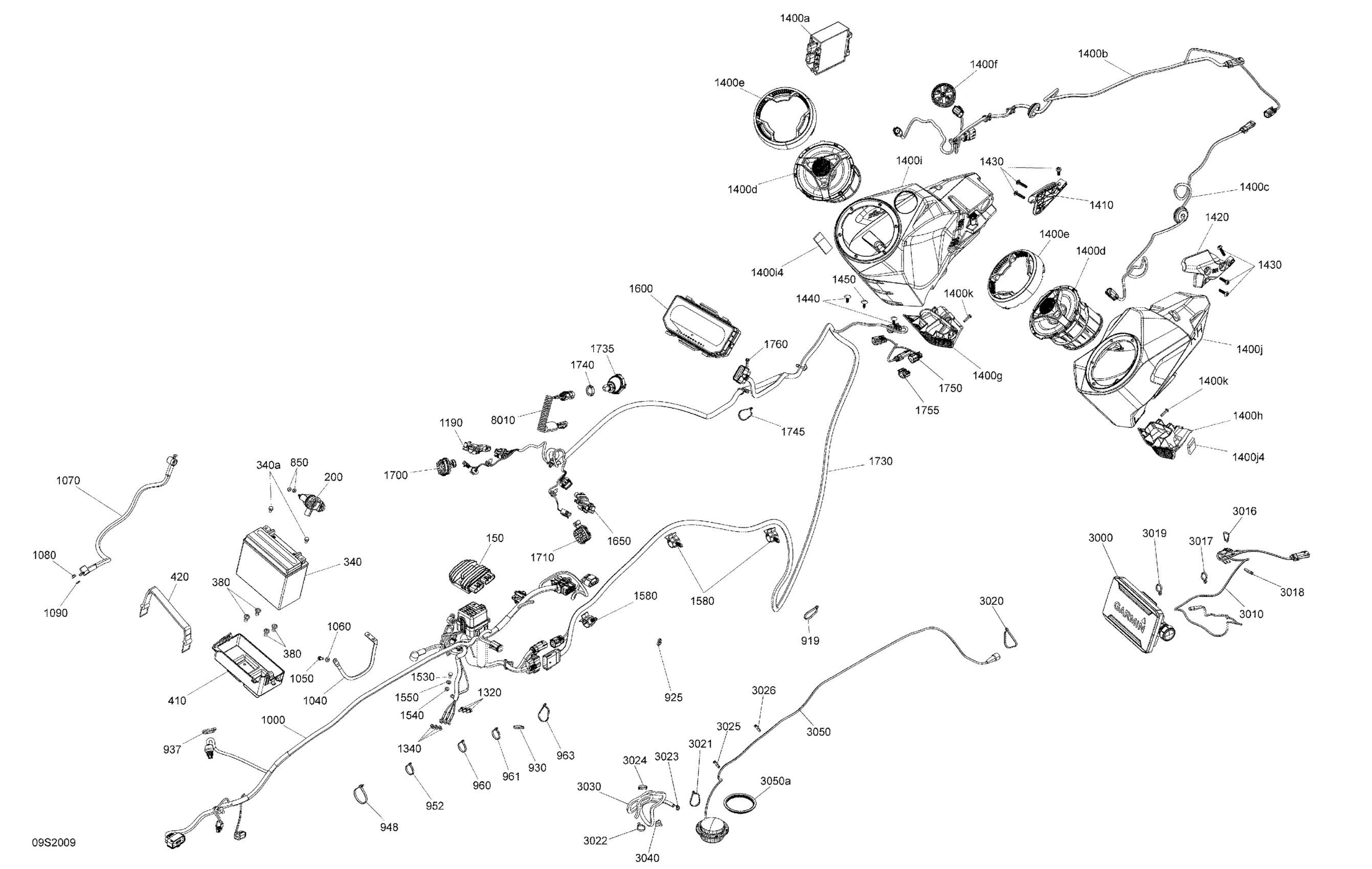

Sea-doo FISH PRO 170, 2020 Electrical System Diagram

#

Description
Price

150

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

200

Starter Relay

278003012

$35.07

340

Battery 12 Volt 18AH

296000449

$126.07

340

Battery Ass'y, 18 Amperes | Brazil

515179099

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201279

Unavailable

340

Battery Ass'y, 18 Amperes | Australia

830201282

Unavailable

340a

Battery Bolt Kit

250000282

$2.95

380

Pop Rivet 3/16"

293150123

$3.43

410

Battery Support

278003473

$22.72

420

Fuel Tank Strap

293850095

$14.27

850

Elastic Stop Nut M6, Brass

232561200

$3.51

919

Tie-Rap 180 mm

414115200

$0.09

925

Tie-Rap 180 mm

414115200

$0.09

930

Tie-Rap 180 mm

414115200

$0.09

937

Tie-Rap 180 mm

414115200

$0.09

948

Tie Wrap 368 mm

293750008

$0.85

952

Tie-Rap 180 mm

414115200

$0.09

960

Tie-Rap 180 mm

414115200

$0.09

961

Tie-Rap 180 mm

414115200

$0.09

963

Tie-Rap 180 mm

414115200

$0.09

1000

Main Wiring Harness

278003815

$248.92

1040

Ground Battery Cable

278003451

$31.17

1050

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1060

Stainless Flat Washer M6

234061600

$0.25

1070

Starter Cable

278003369

$31.17

1080

Elastic Stop Nut M6, Brass

232561200

$3.51

1090

Stainless Flat Washer M6

234061600

$0.25

1190

LH Throttle Sensor

278002284

$108.18

1320

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1340

Stainless Flat Washer M6

234061600

$0.25

1400a

Amplifier

278003464

$371.12

1400b

Amplifier Harness

278003497

$65.62

1400c

Speaker Harness

278003462

$16.22

1400d

Speaker

278003463

$124.12

1400e

Speaker Grille

278003466

$12.97

1400f

Audio Control

278003465

$308.07

1400g

Deep Black, LH Protective Grille

278003616

$7.29

1400h

Deep Black, RH Protective Grille

278003617

$7.29

1400i

LH Speaker Enclosure Ass'y | Includes 1400k to 1400k4

278003735

$261.92

1400i4

Stopper

278003860

$0.61

1400j

RH Speaker Enclosure Ass'y | Includes 1400m to 1400m4

278003736

$261.92

1400j4

Stopper

278003860

$0.61

1400k

Hex. Screw 10-14 X 7/8”

211000023

$2.91

1410

LH Bracket

278003489

$4.54

1420

RH Bracket

278003518

$4.54

1430

Screw Torx M6.81 X 30

250001007

$1.61

1440

Black, Dart

293730011

$0.79

1450

Black, Dart

293730011

$0.79

1530

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

1540

Elastic Stop Nut M6, Brass

232561200

$3.51

1550

Stainless Flat Washer M6

234061600

$0.25

1580

Retainer

278003564

$6.57

1600

Full Size Multifunction Mono Gauge

278003432

$729.07

1650

Throttle Position Sensor

278002283

$94.22

1700

LH Switch Keypad

278003726

$101.37

1710

RH Switch Keypad

278003474

$101.37

1730

Handlebar Wiring Harness

278003851

Unavailable

1735

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

1740

Safety Nut (DESS Switch)

278002963

$2.72

1745

Tie-Rap 180 mm

414115200

$0.09

1750

Multiple Accessory Harness

278003684

$41.57

1755

Connectors Support

278003734

$2.72

1760

Hex. Screw 10-14 X 7/8”

211000023

$2.91

3000<3050a

Echosounder Kit

295100921

$1,239.99

3010

Echosounder Power Supply Harness

278003673

$74.07

3016

Tie-Rap 180 mm

414115200

$0.09

3017

Tie-Rap 180 mm

414115200

$0.09

3018

Tie-Rap 180 mm

414115200

$0.09

3019

Tie-Rap 180 mm

414115200

$0.09

3020

Tie-Rap 180 mm

414115200

$0.09

3021

Tie-Rap 180 mm

414115200

$0.09

3022

Tie-Rap 180 mm

414115200

$0.09

3023

Tie-Rap 180 mm

414115200

$0.09

3024

Tie-Rap 180 mm

414115200

$0.09

3025

Tie-Rap 180 mm

414115200

$0.09

3026

Tie Wrap 368 mm

293750008

$0.85

3030

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

3040

Mount Dart

293730040

$0.86

3050<3050a

Transducer | Includes 103000 to 103000a

278003914

$349.99

3050a

Seal

292002447

$2.63

8010

Safety Lanyard Ass'y, RFID

278003400

$58.47
