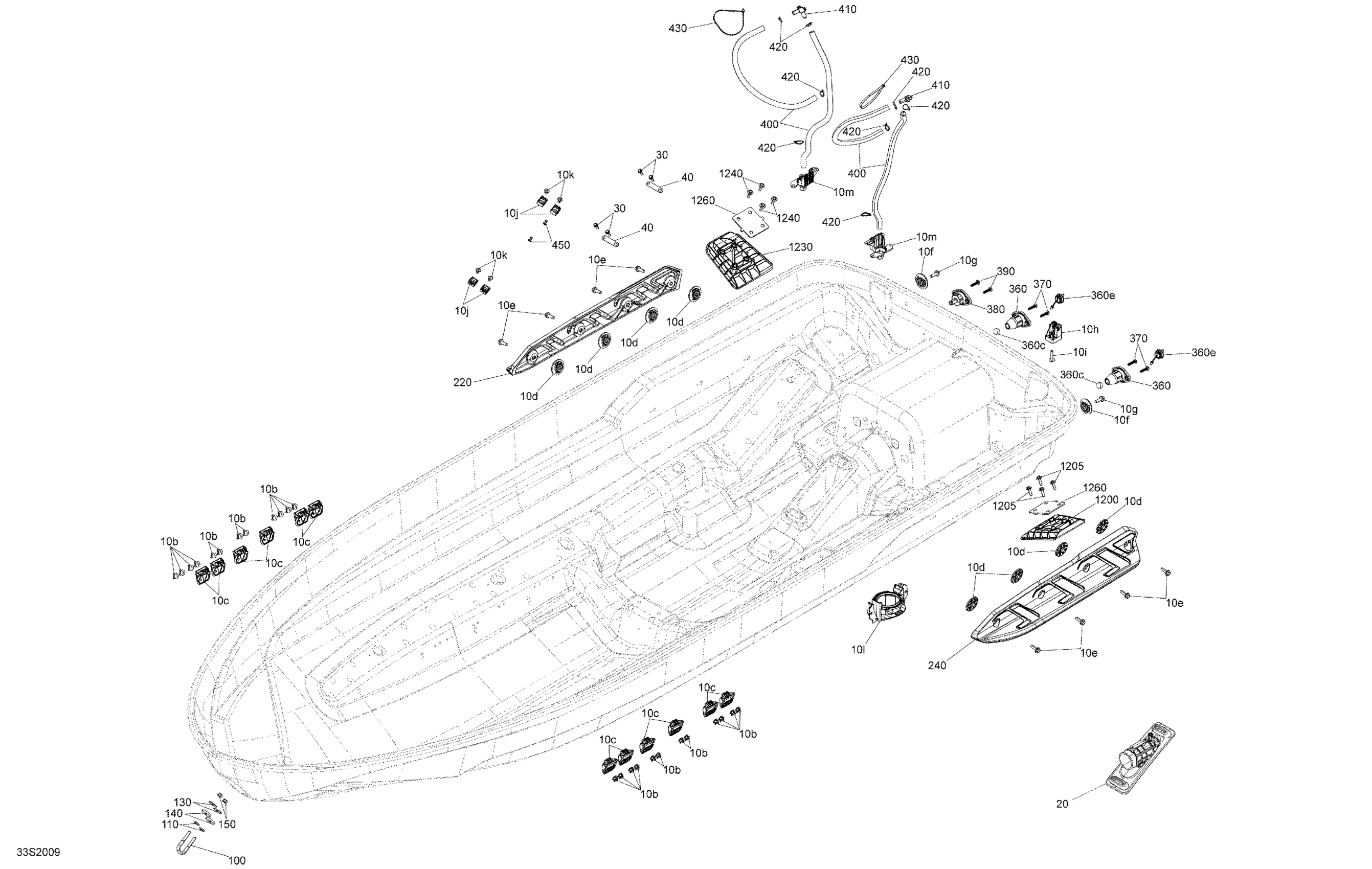

Sea-doo 001 - FISH PRO 170, 2020 09- Hull Diagram
#
Description
Price
10b
Rivet | Model-T3
293150067
$2.89
10c
Strap Retaining
270000933
$6.99
10d
Housing Nut M8 | Includes 400a1m to 400a1m1
293450387
$7.09
10e
Torx-Head Screw M8 X 35 This part replaces 250000572.
250000994
$3.91
10f
Housing Nut M8 | Includes 400a1m to 400a1m1
293450387
$7.09
10g
Hex. Flange Screw M8 X 25
207682534
$2.11
10h
Strap Anchor
270000988
$10.28
10i
Hexagonal Cap Screw M6 X35
250000399
$4.44
10j
Strap Anchor
270000854
$7.76
10k
Pop Rivet 3/16
293150186
$2.09
10l
Transducer Support
292002128
$9.79
10m
Pump Support
269800956
$3.39
20
Hull Insert
293450384
$36.99
30
Hex. Flange Screw M6.81 x 20
243162060
$3.72
40
Reinforcement
291004907
$2.89
100
U-Clamp
292000933
$59.49
110
Flat Washer M8.5 x 18
293050001
$3.07
130
Flat Washer 8 mm, Stainless
250200175
$3.06
140
Rubber Washer
293830037
$2.68
150
Hex. Elastic Nut M8 Brass
232581200
$2.22
220
RH Sponson
292001953
$54.99
240
LH Sponson
292001954
$65.99
360
Through Hull Fitting Ass'y | Includes 300 to 300f2
292002766
$15.49
360c
Floating Ball
293830080
$7.19
360e
Plug Ass'y | Includes 300f to 300f2
292002022
$14.49
370
Screw Torx M6.81 X 30
250001007
$2.54
380
Drain Neck Ass'y
292002153
$14.49
390
Screw Torx M6.81 X 30
250001007
$2.54
400
Polyurethane Hose 1000Mm Long | Not Shown
219704393
$7.20
410
Fitting Elbow 90°
293710152
$18.49
420
Tie Wrap 94 mm | 4X4
293750001
$1.03
430
Tie Wrap 368 mm
293750008
$1.04
450
Avdel Rivet 3/16"
293150037
$0.56
1200
LH Trim Tab
292002102
$18.49
1205
Hexagonal Cap Screw M6 X 25
250000978
$4.44
1230
RH Trim Tab
292002103
$18.49
1240
Hexagonal Cap Screw M6 X 25
250000978
$4.44
1260
Gasket
277002171
$4.33
