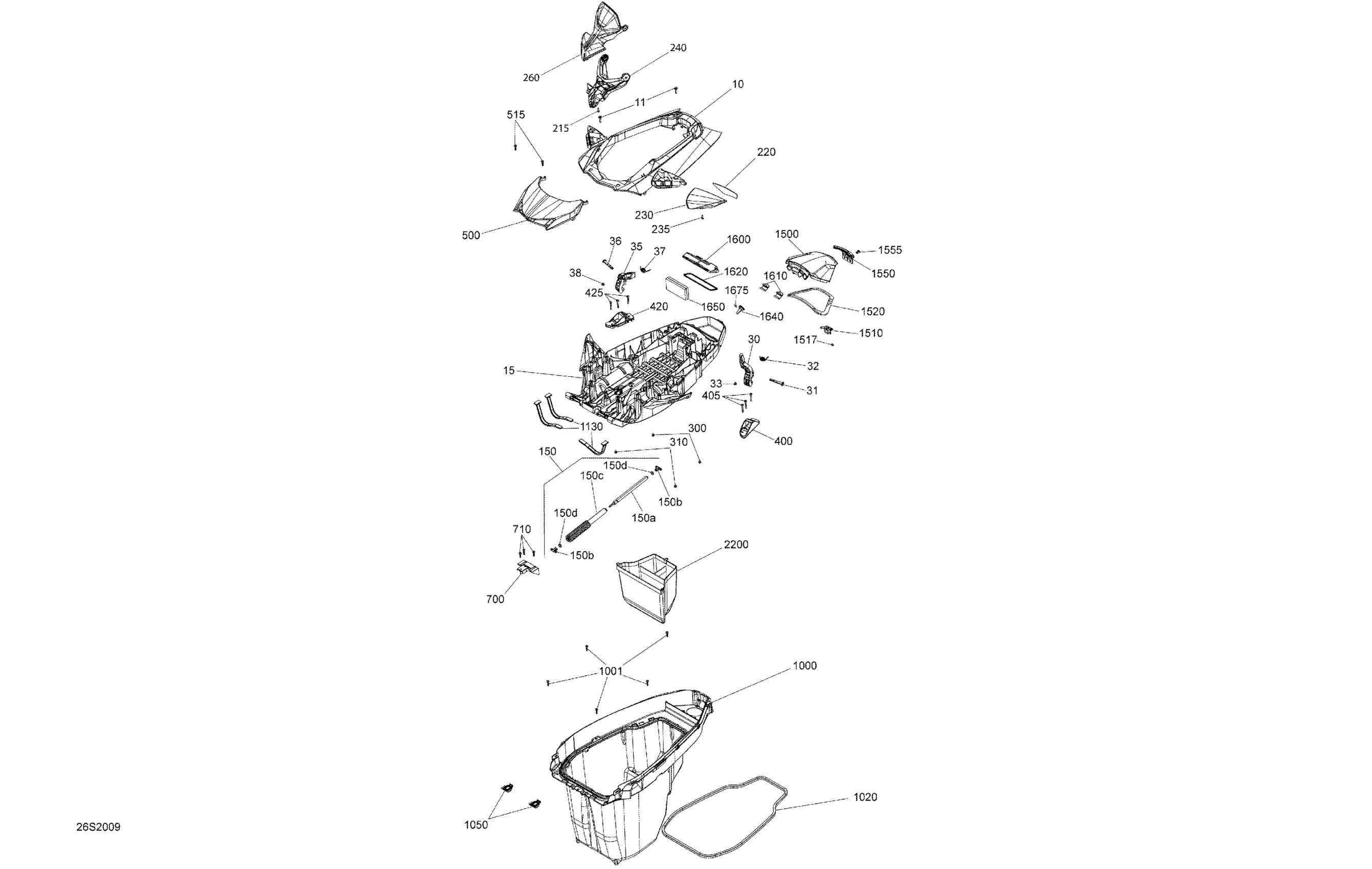

Sea-doo FISH PRO 170, 2020 Front Cover Diagram

#

Description
Price

10

Outer Skin

269502394

$204.99

11

Hexagonal Cap Screw M6 X35

250000399

$4.44

15

Inner Console Support

269502265

$159.99

30

LH Latch

269502267

$30.99

31

Latch Axis

269502326

$18.49

32

Latch Spring

269502268

$26.99

33

Rubber Bumper

293830005

$8.09

35

RH Latch

269502299

$30.99

36

Latch Axis

269502326

$18.49

37

Latch Spring

269502268

$26.99

38

Rubber Bumper

293830005

$8.09

150<150d

Shock Absorber Assembly | Includes 150 to 150b

269502426

$99.99

150a

Not Available As Spare Part - Friction Washer

Unavailable

150b

Not Available As Spare Part - Friction Washer

Unavailable

150c

Not Available As Spare Part - Friction Washer

Unavailable

150d

Tie Wrap 94 mm | 4X4

293750001

$1.03

215

Hex. Screw 10-14 X 7/8”

211000023

$3.59

220

LH Mirror Glass

269502274

$88.99

230

Deep Black, LH Mirror Cover

269502427

$55.99

235

Hex. Screw 10-14 X 7/8”

211000023

$3.59

240

Echosounder Support

269502461

$229.99

260

Deep Black, Echosounder Deflector

269502375

$110.99

300

Rubber Bumper

293830005

$8.09

310

Rubber Bumper

293830005

$8.09

400

LH Latch Base

269502385

$18.99

405

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

420

RH Latch Base

269502386

$18.99

425

Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270

250000827

$4.44

500

Olive Night, Top Cover | Model Olive Night

269502387

$119.99

515

Screw Torx M6.81 X 30

250001007

$2.54

700

Shock Base

269502282

$25.99

710

Screw Torx M6.81 X 30

250001007

$2.54

1000

Bin Compartment

264000144

$124.99

1001

Screw Torx M6.81 X 30

250001007

$2.54

1020

Gasket

293250478

$13.49

1050

Adjustment Hook

269502325

$10.99

1130

Strap

269502145

$14.30

1500

Glove Box Door

264000132

$65.99

1510

Glove Box Latch

264000133

$21.99

1517

Screw K40 X 10

250001119

$2.40

1520

Cover Gasket

293250717

$29.99

1550

Glove Box Trim

269502538

$19.49

1555

Tuflok Plastic Rivet

293150230

$1.47

1600

Watertight Door

264000134

$14.49

1610

Clip

269501718

$15.89

1620

Gasket

293250412

$17.99

1640

USB Plug

269502324

$3.09

1650

Sealed Compartment Foam

264000135

$12.99

1675

Vent Membrane

264000137

$12.99

2200

Rear Bin Organiser Ass'y | Includes 2200 to 2200d

295100836

$83.99
