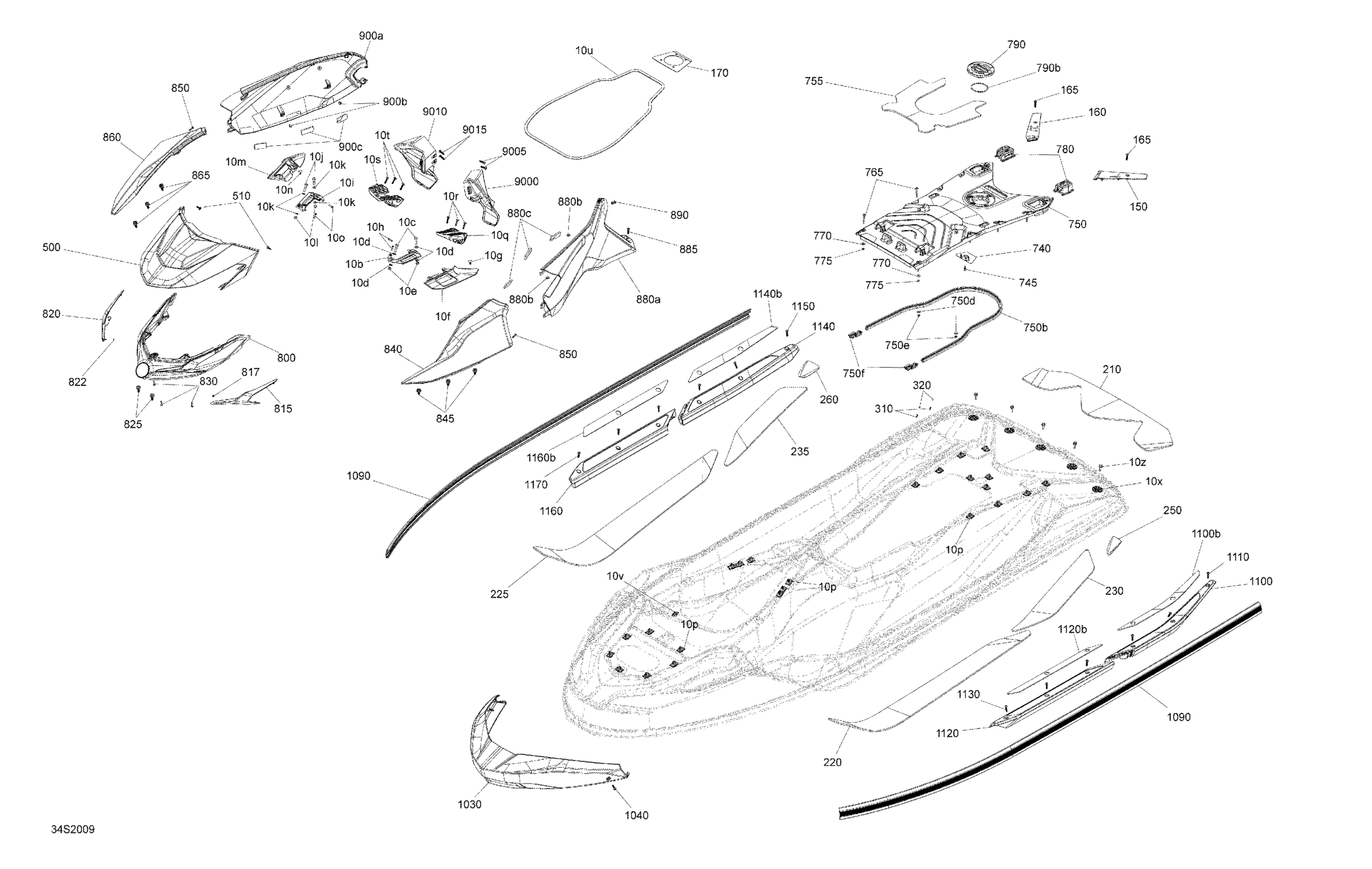

Sea-doo 001 - FISH PRO 170, 2020 09- Body Diagram
#
10b
LH Cleat
291004559
$9.79
10c
Hex. Screw M8 X 35
207083560
$1.47
10d
Stainless, Flat Washer 8 mm
234081600
$0.55
10e
Hex. Elastic Nut M8 Brass
232581200
$2.22
10f
LH Shell Cleat
291004661
$10.99
10g
Black, Dart
293730011
$0.99
10h
Hex. Screw 10-14 X 7/8”
211000023
$3.59
10i
RH Cleat
291004720
$9.79
10j
Hex. Screw M8 X 35
207083560
$1.47
10k
Stainless, Flat Washer 8 mm
234081600
$0.55
10l
Hex. Elastic Nut M8 Brass
232581200
$2.22
10m
RH Shell Cleat
291004719
$10.99
10n
Black, Dart
293730011
$0.99
10o
Hex. Screw 10-14 X 7/8”
211000023
$3.59
10p
Nut Housing M6 Ass'y | Includes 10b to 10b1a
291006093
$2.39
10q
LH Support
291004714
$10.99
10r
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
10s
RH Support
291004715
$12.49
10t
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
10u
Gasket
293250401
$12.11
10v
Tie-Rap Mount
293750025
$1.25
10x
Housing Nut M8 | Includes 400a1m to 400a1m1
293450387
$7.09
10z
Hex. Flange Screw M8 X 25
207682534
$2.11
150
LH Shim
291005176
$16.49
160
RH Shim
291005177
$16.49
165
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
170
Gasket
293250451
$23.99
210
Rear Plat-Form Carpet
291005019
$52.99
220
LH Front Anti Slip Mat
291005351
$33.99
225
RH Front Anti Slip Mat
291005350
$33.99
230
LH Rear Anti Slip Mat
291005353
$17.20
235
RH Rear Anti Slip Mat
291005352
$17.20
250
LH Anti-Skid Pad
291004516
$5.61
260
RH Anti-Skid Pad
291004517
$5.61
310
Rivet 1/8"
293150016
$0.40
320
Black, Snap Cap
293000014
$1.09
500
Olive Night, Hood | Model Olive Night
291005023
$104.99
510
Flange Screw Plastite #10, 14 X 7/8"
250001087
$3.49
740
Hose Protector
291004941
$4.69
745
Black, Dart
293730011
$0.99
750<750f
Access Cover Ass'y | Includes 750 to 750f
291005189
$234.99
750b
Was 293200062 Seal
219704366
$76.49
750d
Flat Washer M6, Stainless
234062600
$0.77
750e
Elastic Stop Nut M6, Brass
232561200
$4.23
750f
Seal
291004717
$12.99
755
Black, Mat Cover
291004668
$41.49
765
Screw-Torx Truss Cone HD.M6X50 | Includes 270 to 270
250000827
$4.44
770
Flat Washer M6, Stainless
234062600
$0.77
775
Elastic Stop Nut M6, Brass
232561200
$4.23
780
Linq Bases Kit
295100858
$13.30
790<790b
Access Cap Ass'y
291004481
$10.99
790b
Not Available As Spare Part - Friction Washer
Unavailable
800
Front Hood Grille
291005915
$35.99
815
Mango Orange, Trim LH | Model Olive Night
291005038
$28.99
817
Push Nut | Not shown
211100002
$2.19
820
Mango Orange, Trim RH | Model Olive Night
291005039
$28.99
822
Push Nut | Not shown
211100002
$2.19
825
Dard
293730071
$1.15
830
Hex. Screw 10-14 X 7/8”
211000023
$3.59
840
Flint Grey, Body Panel Front LH
291005041
$164.99
845
Dard
293730071
$1.15
850
Hex. Screw 10-14 X 7/8”
211000023
$3.59
860
Flint Grey, RH Front Body Panel
291005040
$164.99
865
Dard
293730071
$1.15
880a
Flint Frey, LH Central Body Panel
291005042
$164.99
880b
Rubber Bumper
293830005
$8.09
880c
Stopper
278003618
$0.74
885
Screw Torx M6.81 X 30
250001007
$2.54
890
Tuflok Plastic Rivet
293150230
$1.47
900a
Flint Frey, RH Central Body Panel
291005043
$164.99
900b
Rubber Bumper
293830005
$8.09
900c
Stopper
278003618
$0.74
1030
Front Bumper
291004452
$77.49
1040
Screw Torx M6.81 X 30
250001007
$2.54
1090
Bumper 2775±25mm
291004468
$134.99
1100<1100b
LH Rear Footrest Ass'y | Model Olive Night
291005123
$70.99
1100b
Not Available As Spare Part - Friction Washer
Unavailable
1110
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
1120<1120b
LH Front Footrest Ass'y | Model Olive Night
291005124
$62.99
1120b
Not Available As Spare Part - Friction Washer
Unavailable
1130
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
1140<1140b
RH Rear Footrest Ass'y | Model Olive Night
291005125
$62.99
1140b
Not Available As Spare Part - Friction Washer
Unavailable
1150
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
1160<1160b
RH Front Footrest Ass'y | Model Olive Night
291005126
$62.99
1160b
Not Available As Spare Part - Friction Washer
Unavailable
1170
Plastite Screw Torx Cone HD.M6.81X3
250001194
$4.66
9000
LH Side Grille
291004455
$11.49
9005
Screw Torx M6.81 X 30
250001007
$2.54
9010
RH Side Grille
291004456
$11.49
9015
Screw Torx M6.81 X 30
250001007
$2.54
