Description

Price

10

Steering Column

277002134

$209.99

10

Steering Column

277002134

$209.99

20

Wear Ring

277001874

$12.17

20

Wear Ring

277001874

$12.17

70

Cluster Support | Built Before Oct 2020

277001980

$61.99

70

Cluster Support | Built Before Oct 2020

277001980

$61.99

80

Deep Black, Cluster Support Cover | Built Before Oct 2020

277001981

$26.99

80

Deep Black, Cluster Support Cover | Built Before Oct 2020

277001981

$26.99

90

Speed Indicator Bezel | Built Before Oct 2020

705011286

$9.59

90

Speed Indicator Bezel | Built Before Oct 2020

705011286

$9.59

91

Deep Black, LH Trim Gauge

705012349

$5.59

91

Deep Black, LH Trim Gauge

705012349

$5.59

92

Deep Black, RH Trim Gauge

705012351

$5.59

92

Deep Black, RH Trim Gauge

705012351

$5.59

110

Deep Black, Steering Pad

277001988

$57.99

110

Deep Black, Steering Pad

277001988

$57.99

180

LH Cover

277002233

$18.99

180

LH Cover

277002233

$18.99

181

Hex. Screw 10-14 X 7/8”

211000023

$3.59

181

Hex. Screw 10-14 X 7/8”

211000023

$3.59

190

Red Button Switch

277002327

$9.21

190

Red Button Switch

277002327

$9.21

200

Hand Lever Accelerator

277002138

$38.99

200

Hand Lever Accelerator

277002138

$38.99

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

220

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

235

Hex. Flange Screw K40 X 25

241142560

$2.64

235

Hex. Flange Screw K40 X 25

241142560

$2.64

236

Flat Washer 4 mm, Stainless

234042600

$1.15

236

Flat Washer 4 mm, Stainless

234042600

$1.15

240

Reverse Handle

277001945

$43.99

240

Reverse Handle

277001945

$43.99

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

260

Flange Screw Plastite #10, 14 X 7/8"

250001087

$3.49

275

Hex. Flange Screw K40 X 25

241142560

$2.64

275

Hex. Flange Screw K40 X 25

241142560

$2.64

276

Flat Washer 4 mm, Stainless

234042600

$1.15

276

Flat Washer 4 mm, Stainless

234042600

$1.15

330

RH Cover

277002235

$16.49

330

RH Cover

277002235

$16.49

331

Hex. Screw 10-14 X 7/8”

211000023

$3.59

331

Hex. Screw 10-14 X 7/8”

211000023

$3.59

355a

Deep Black, LH Handle Grip

277001958

$20.99

355a

Deep Black, LH Handle Grip

277001958

$20.99

355b

Deep Black, RH Handle Grip

277001946

$20.99

355b

Deep Black, RH Handle Grip

277001946

$20.99

400

Steering Cover

277001985

$68.99

400

Steering Cover

277001985

$68.99

440<450

Steering Arm Kit

295501183

$10.99

440<450

Steering Arm Kit

295501183

$10.99

450

Not Available As Spare Part - Friction Washer

Unavailable

450

Not Available As Spare Part - Friction Washer

Unavailable

460

Not Available As Spare Part - Friction Washer

Unavailable

460

Not Available As Spare Part - Friction Washer

Unavailable

470

Spacer

277001654

$15.99

470

Spacer

277001654

$15.99

480

Hexagonal Cap Screw M6 X35

250000399

$4.44

480

Hexagonal Cap Screw M6 X35

250000399

$4.44

500

C Clamp

277002085

$9.19

500

C Clamp

277002085

$9.19

530

End Fitting Cable

277002119

$20.99

530

End Fitting Cable

277002119

$20.99

540<540b

Steering Cable | Includes 540 to 540b

277002448

$275.49

540<540b

Steering Cable | Includes 540 to 540b

277002448

$275.49

540a

Hex. Nut 1/4"-28

211100056

$0.69

540a

Hex. Nut 1/4"-28

211100056

$0.69

540b

Wiper Rod

277001582

$11.11

540b

Wiper Rod

277001582

$11.11

545

Hex. Nut 1/4"-28

211100056

$0.69

545

Hex. Nut 1/4"-28

211100056

$0.69

550

Wiper Rod

277001582

$11.11

550

Wiper Rod

277001582

$11.11

555

End Piece

277001583

$14.49

555

End Piece

277001583

$14.49

560

Rubber Washer

293830063

$1.90

560

Rubber Washer

293830063

$1.90

570

Ring Halves

277001856

$12.99

570

Ring Halves

277001856

$12.99

580

Hexagonal Cap Screw M6 X35

250000399

$4.44

580

Hexagonal Cap Screw M6 X35

250000399

$4.44

630

Ball Joint

277000775

$51.99

630

Ball Joint

277000775

$51.99

640

Hex Sems Screw M6X35

250000970

$2.11

640

Hex Sems Screw M6X35

250000970

$2.11

690

Hexagonal Cap Screw M6 X35

250000399

$4.44

690

Hexagonal Cap Screw M6 X35

250000399

$4.44

710<710b

Steering Support Ass'y | Built Before Oct 2020

277001993

$114.99

710<710b

Steering Support Ass'y | Built Before Oct 2020

277001993

$114.99

710b

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

710b

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

720

Wear Ring

277002318

$15.99

720

Wear Ring

277002318

$15.99

750

Steering Support Pivot

277001605

$20.99

750

Steering Support Pivot

277001605

$20.99

760

Hex Screw M6 X 80

207168060

$6.77

760

Hex Screw M6 X 80

207168060

$6.77

770

Flat Washer M6, Stainless

234062600

$0.77

770

Flat Washer M6, Stainless

234062600

$0.77

780

Adjustment Handle

277001996

$10.38

780

Adjustment Handle

277001996

$10.38

781

Rubber Bumper

293830005

$8.09

781

Rubber Bumper

293830005

$8.09

785

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

785

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

790

Lock

277002010

$6.49

790

Lock

277002010

$6.49

800

Pivot

277001652

$15.99

800

Pivot

277001652

$15.99

810

Hex. Screw M6 X 40

207064060

$1.69

810

Hex. Screw M6 X 40

207064060

$1.69

820

Flat Washer M6, Stainless

234062600

$0.77

820

Flat Washer M6, Stainless

234062600

$0.77

880

Tie-Rap 180 mm

414115200

$0.11

880

Tie-Rap 180 mm

414115200

$0.11

895

Corrugated Sheath 22MM - 1250MM

276000520

$26.49

895

Corrugated Sheath 22MM - 1250MM

276000520

$26.49

905

Rope Guide

277002150

$0.93

905

Rope Guide

277002150

$0.93

3920

Black, Cap

277000203

$9.39

3920

Black, Cap

277000203

$9.39

3930

Flat Washer M6, Stainless

234062600

$0.77

3930

Flat Washer M6, Stainless

234062600

$0.77

3940

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.89

3940

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.89

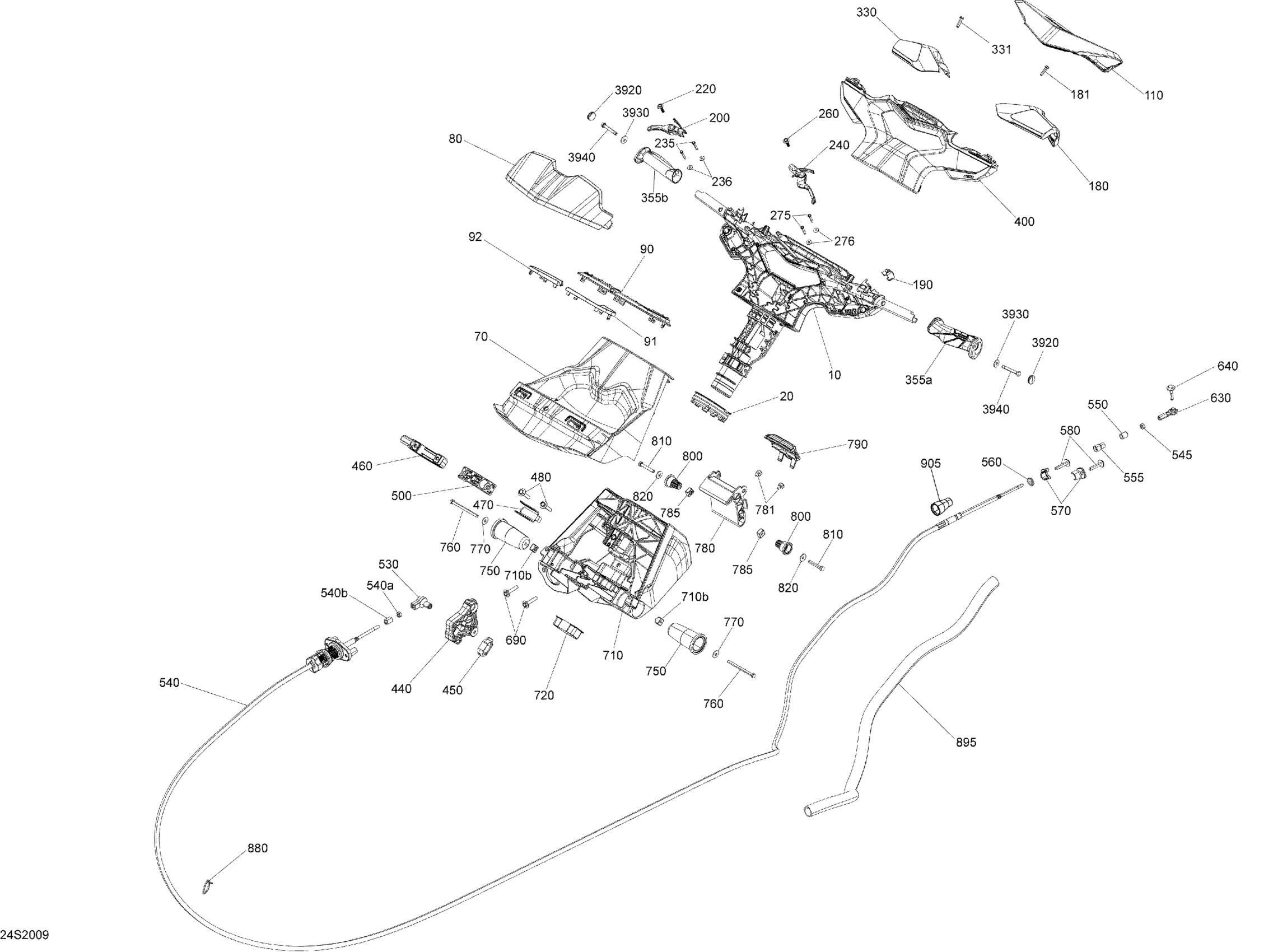

Sea-doo FISH PRO 170, 2020 Steering Diagram

Steering Column

Steering Column

Wear Ring

Wear Ring

Cluster Support | Built Before Oct 2020

Cluster Support | Built Before Oct 2020

Deep Black, Cluster Support Cover | Built Before Oct 2020

Deep Black, Cluster Support Cover | Built Before Oct 2020

Speed Indicator Bezel | Built Before Oct 2020

Speed Indicator Bezel | Built Before Oct 2020

Deep Black, LH Trim Gauge

Deep Black, LH Trim Gauge

Deep Black, RH Trim Gauge

Deep Black, RH Trim Gauge

Deep Black, Steering Pad

Deep Black, Steering Pad

LH Cover

LH Cover

Hex. Screw 10-14 X 7/8”

Hex. Screw 10-14 X 7/8”

Red Button Switch

Red Button Switch

Hand Lever Accelerator

Hand Lever Accelerator

Flange Screw Plastite #10, 14 X 7/8"

Flange Screw Plastite #10, 14 X 7/8"

Hex. Flange Screw K40 X 25

Hex. Flange Screw K40 X 25

Flat Washer 4 mm, Stainless

Flat Washer 4 mm, Stainless

Reverse Handle

Reverse Handle

Flange Screw Plastite #10, 14 X 7/8"

Flange Screw Plastite #10, 14 X 7/8"

Hex. Flange Screw K40 X 25

Hex. Flange Screw K40 X 25

Flat Washer 4 mm, Stainless

Flat Washer 4 mm, Stainless

RH Cover

RH Cover

Hex. Screw 10-14 X 7/8”

Hex. Screw 10-14 X 7/8”

Deep Black, LH Handle Grip

Deep Black, LH Handle Grip

Deep Black, RH Handle Grip

Deep Black, RH Handle Grip

Steering Cover

Steering Cover

Steering Arm Kit

Steering Arm Kit

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Spacer

Spacer

Hexagonal Cap Screw M6 X35

Hexagonal Cap Screw M6 X35

C Clamp

C Clamp

End Fitting Cable

End Fitting Cable

Steering Cable | Includes 540 to 540b

Steering Cable | Includes 540 to 540b

Hex. Nut 1/4"-28

Hex. Nut 1/4"-28

Wiper Rod

Wiper Rod

Hex. Nut 1/4"-28

Hex. Nut 1/4"-28

Wiper Rod

Wiper Rod

End Piece

End Piece

Rubber Washer

Rubber Washer

Ring Halves

Ring Halves

Hexagonal Cap Screw M6 X35
