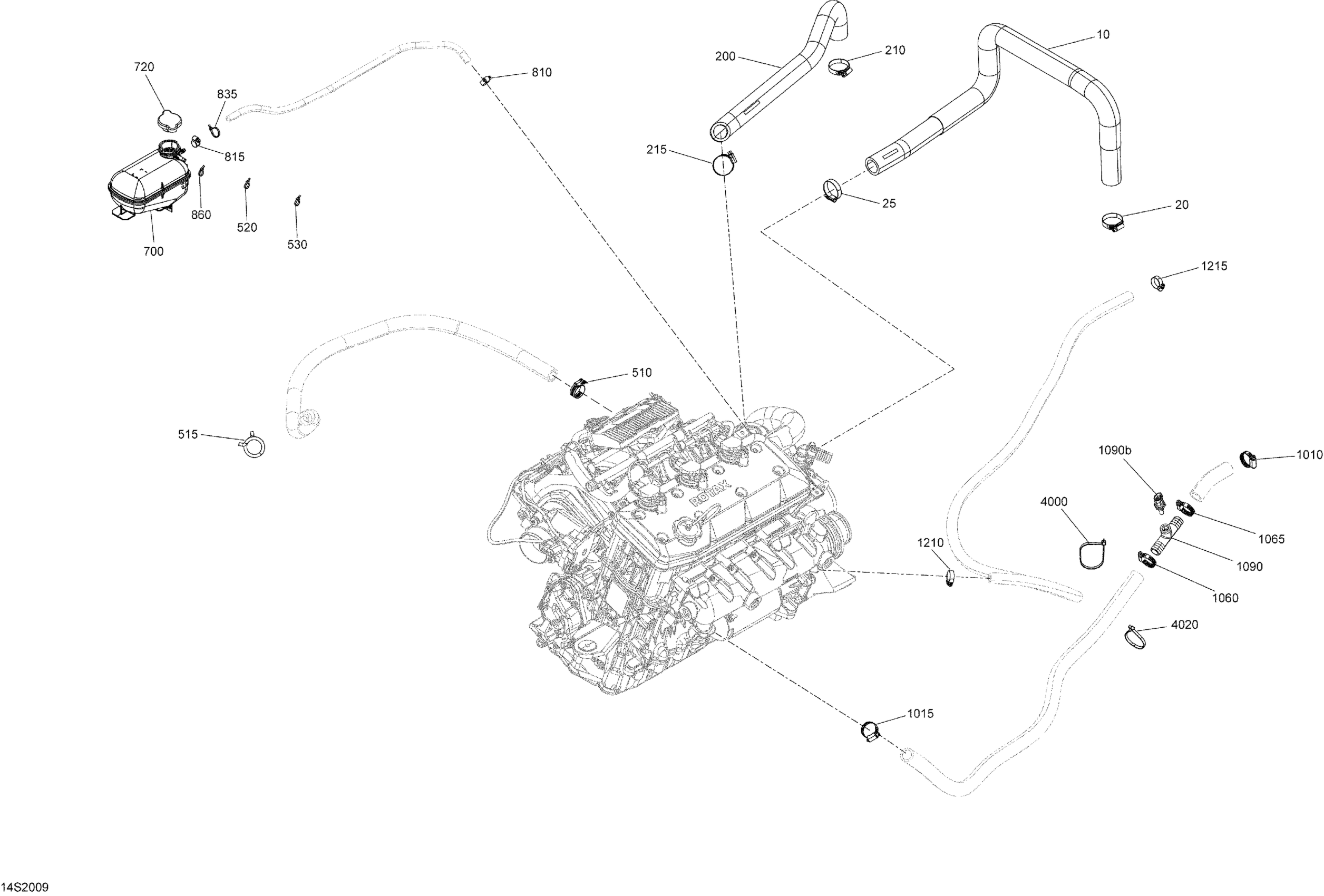

Sea-doo FISH PRO 170, 2020 Cooling System Diagram

#

Description
Price

10

Hose Riding Plate LH

276000462

$59.67

20

Norma Clamp

293650245

$11.77

25

Norma Clamp

293650245

$11.77

200

Hose Riding Plate RH

276000487

$52.21

210

Norma Clamp

293650245

$11.77

215

Norma Clamp

293650245

$11.77

510

Tridon Gear Clamp

293650019

$4.81

515

Spring Clamp

293650115

$2.46

520

Tie Wrap 94 mm | 4X4

293750001

$0.83

530

Tie Wrap 94 mm | 4X4

293750001

$0.83

700

Coolant Tank

276000419

$94.22

720

Pressure Cap | Includes 720 to 720a

276000100

$20.77

810

Tridon Gear Clamp

293650170

$1.74

815

Tridon Gear Clamp

293650170

$1.74

835

Tie-Rap 180 mm

414115200

$0.09

860

Tie Wrap 94 mm | 4X4

293750001

$0.83

1010

Tridon Gear Clamp

293650051

$3.61

1015

Tridon Gear Clamp

293650051

$3.61

1060

Tridon Gear Clamp

293650051

$3.61

1065

Tridon Gear Clamp

293650051

$3.61

1090<1090b

Sensor Ass'y | Includes 1090 to 1090b

293710143

$50.02

1090b

Temperature Sensor

278002895

$31.82

1210

Tridon Gear Clamp

293650172

$2.68

1215

Tridon Gear Clamp

293650172

$2.68

4000

Tie Wrap 368 mm

293750008

$0.85

4020

Tie-Rap 180 mm

414115200

$0.09
