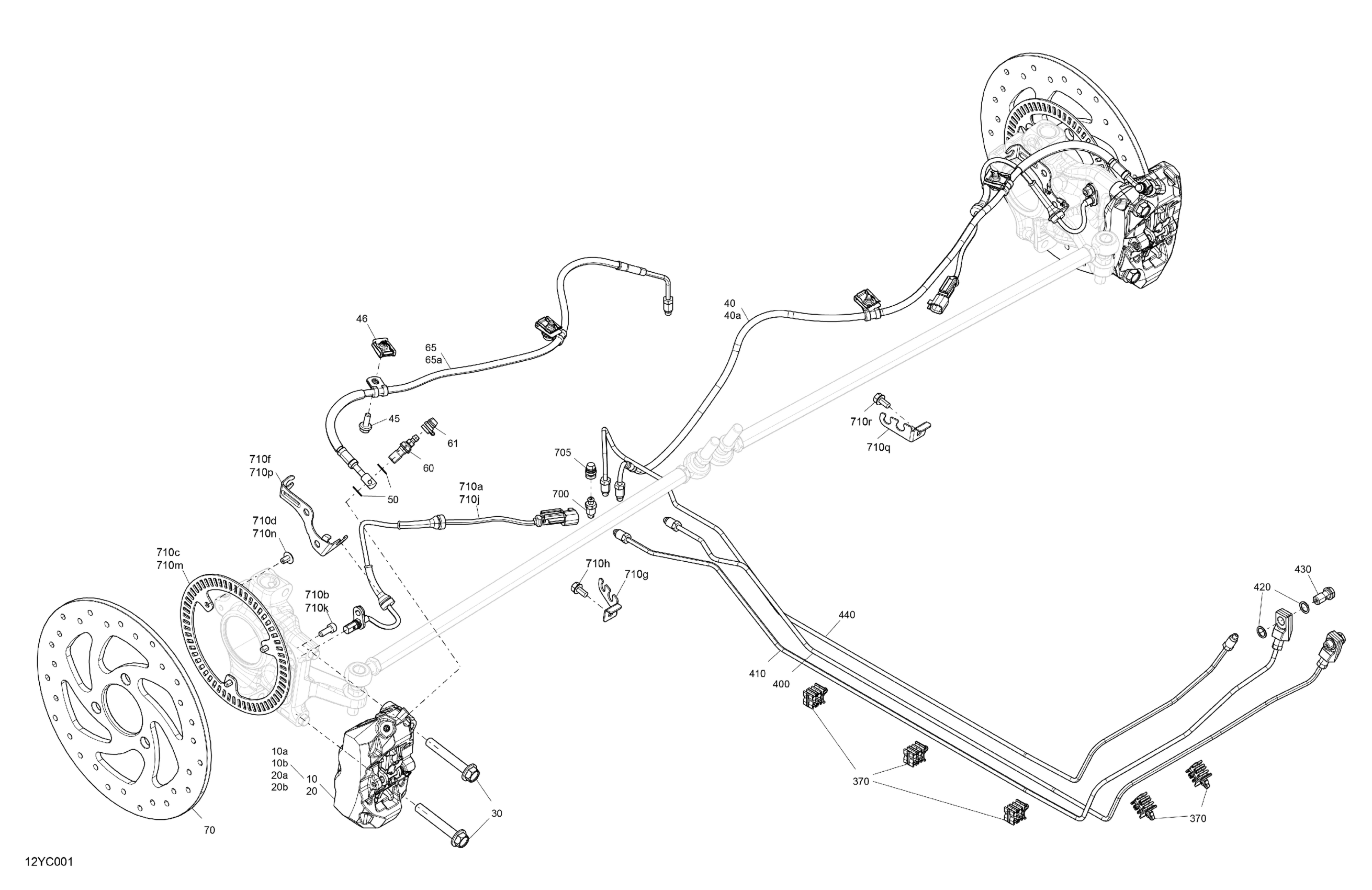

Can-Am F3 - Steel Black Metallic, 2023 Mechanic - Front Brakes Diagram

#

Description
Price

10

LH Front Caliper | Includes 10 to 10b

705600987

$381.00

10a

Brake Pad Kit

219800237

$79.00

10b

Spring/Pin/Clip Kit

219800238

$27.00

20

RH Front Caliper | Includes 20 to 20b

705600988

$381.00

20a

Brake Pad Kit

219800237

$79.00

20b

Spring/Pin/Clip Kit

219800238

$27.00

30

Hex Flange Screw M10 X 65

207506556

$7.00

40

RH Front Brake Hose Flexible | Includes 40 to 40a

705601672

$61.00

40a

Clamp

293650256

$4.36

45

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

46

Panel Nut M6 X 1.0

250100208

$1.07

50

Washer

414920600

$1.52

60

Banjo Bolt/ Bleeder

705601201

$17.66

61

Bleeder Bolt Cap

705601190

$4.28

65

LH Front Brake Hose Flexible | Includes 65 to 65a

705601673

$61.00

65a

Clamp

293650256

$4.36

70

Front Brake Disk

705601631

$154.00

370

Anchorage Tube

705601987

$5.00

400

Tandem Rigid Tube | Includes 400 to 400a

705601157

$32.00

410

Tandem Rigid Tube | Includes 410 to 410a

705601158

$32.00

420

Washer

414920600

$1.52

430

Banjo Bolt

507032551

$5.52

440

Rear Brake Rigid Tube

705601159

$32.00

700

Bleeder Screw

705600502

$11.06

705

Bleeder Bolt Cap

705601190

$4.28

710a

Speed Sensor

710006981

$78.43

710b

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

710c

Front Sensor Wheel

705601512

$44.00

710d

Torx-truss M/s M6 X 10

250000995

$3.61

710f

LH Support Wire

710004860

$2.00

710g

Speed Sensor Holder

710003156

$11.00

710h

Hex. Flange Screw M6 X 12

210261250

$1.56

710j

Speed Sensor

710006981

$78.43

710k

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

710m

Front Sensor Wheel

705601512

$44.00

710n

Torx-truss M/s M6 X 10

250000995

$3.61

710p

RH Support Wire

710004861

$2.00

710q

Speed Sensor Holder

710003157

$11.00

710r

Hex. Flange Screw M6 X 12

210261250

$1.56
