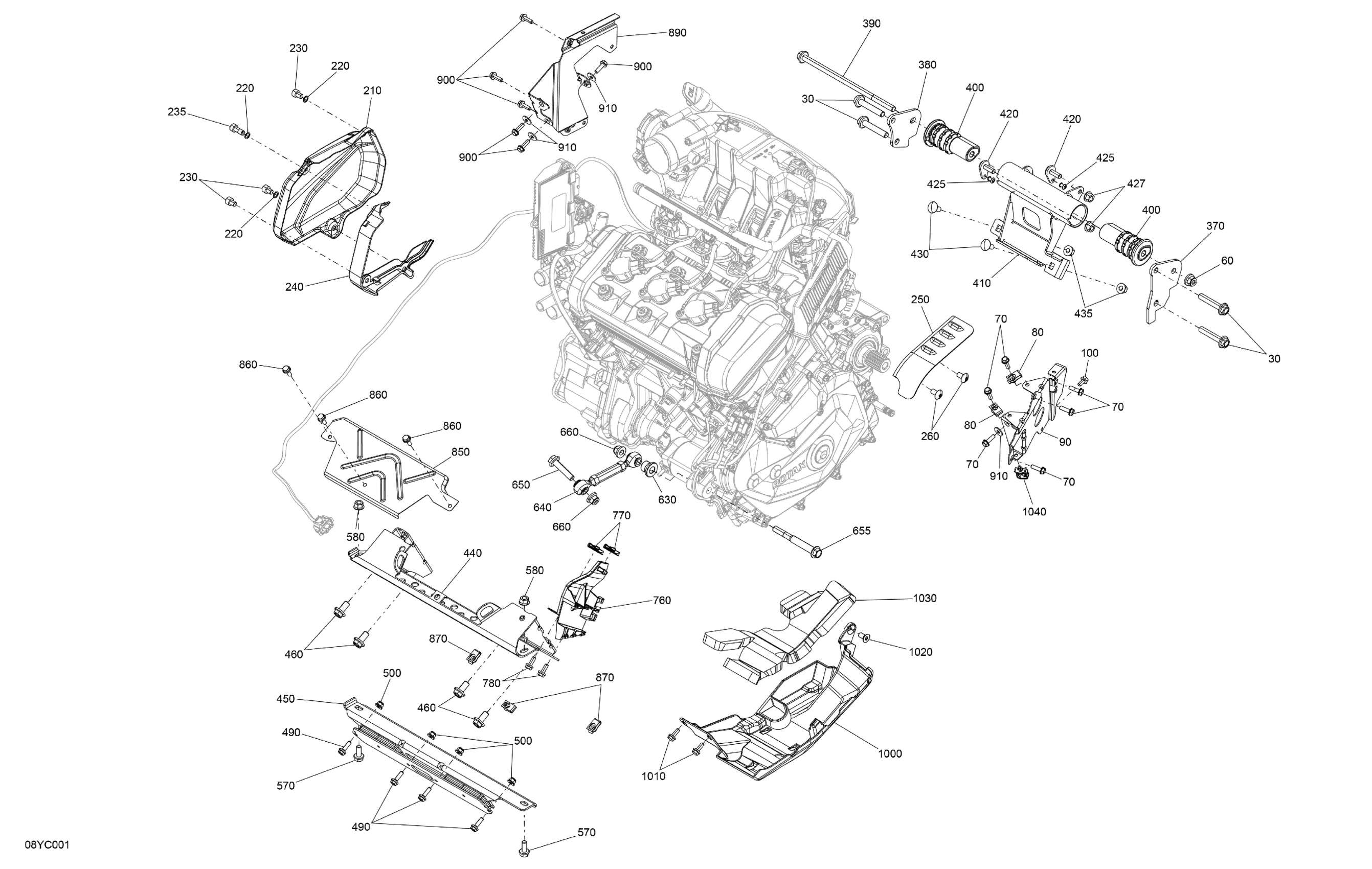

Can-Am F3 - Steel Black Metallic, 2023 Engine - System Diagram

#

Description
Price

30

Hex. Flange Screw M10 X 55, Scotch Grip

207505544

$3.91

60

Hex. Flange Elastic Nut M10

233201436

$2.11

70

Hex. Flange Screw M6 X 20

250000917

$2.11

80

Panel Nut M6 X 1.0

250100198

$2.11

90

ECM Support

707001529

$37.99

100

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

210

Cover

707601741

$105.99

220

Flate Washer M8, Aluminum

250200160

$2.32

230

Socket Head Screw M8 X 10, Scotch Grip

211000127

$3.99

235

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.44

240

Wire Cover

707001628

$14.49

250

Pulley Cover

707003651

$25.99

260

Torx Truss Screw M8 X 16

250000746

$3.38

370

LH Engine Support

707001293

$22.49

380

RH Engine Support

707001294

$22.49

390

Hex. Flange Screw M10 X 220

250000507

$7.59

400

Vibration Damper

707003044

$89.99

410

Frame Extension

707000877

$94.99

420

Attach

707001292

$19.49

425

Pop Rivet 3/16"

390402300

$0.75

427

Hex. Flange Nut

233081436

$2.00

430

Carriage Bolt M8 X 20

207782046

$1.90

435

Hex. Flange Nut

233081436

$2.00

440

Front Engine Support

707001561

$104.99

450

Rubber Mount

707000876

$134.99

460

Hex Flange Screw M10 X 20

207502044

$4.44

490

Hex. Flange Screw M6 X 20

207662044

$2.00

500

Hex. Flange Elastic Nut M6

233261466

$2.00

570

Hex. Flange Screw M8 X 20

207682046

$1.90

580

Hex. Flange Nut

233081436

$2.00

630

Spacer

707001736

$27.49

640

Connecting Rod

707001918

$63.99

650

Hex. Flange Screw M10 X 45 Scotch Grip

207504546

$6.77

655

Hex. Flange Screw M10 X 100

250001099

$11.64

660

Hex. Flange Elastic Nut M10

233201436

$2.11

760

Connector Suppor

707001627

$14.67

770

Panel Nut M6 X 1.0

250100208

$1.46

780

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

850

Upper Heat Deflector

707601057

$24.49

860

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

870

Panel Nut M6 X 1.0

250100198

$2.11

890

TCM Support

707001530

$27.99

900

Hex. Flange Screw M6 X 20

250000917

$2.11

910

Flat Washer M6, Stainless

234062600

$0.77

1000

Skid Plate

707001930

$30.49

1010

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

1020

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

1030

Acoustic Insulation

707003260

$16.99

1040

Harness Support

709000633

$7.19
