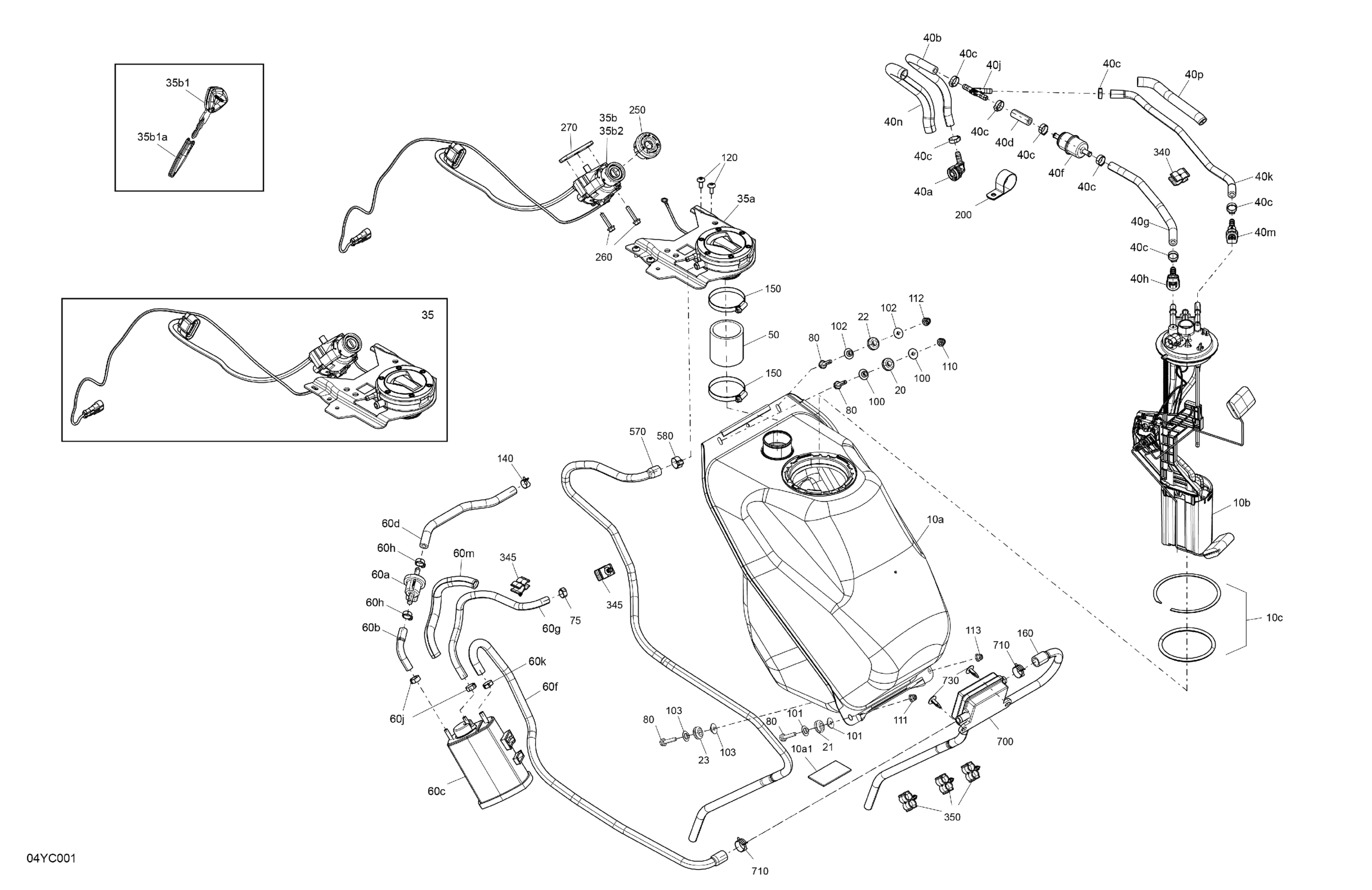

Can-Am F3 - Steel Black Metallic, 2023 Engine - Fuel Diagram

#

Description
Price

10a

Fuel Tank | Includes 10a to 10a1

219800366

$600.00

10a1

CARPET - Call your local BRP dealership

709000553

Unavailable

10b

Fuel Pump Module

709000779

$625.00

10c

Seal Kit

219800248

$39.00

10d

Seal Kit

219800248

$39.00

20

Grommet

709000582

$4.38

21

Grommet

709000582

$4.38

22

Grommet

709000582

$4.38

23

Grommet

709000582

$4.38

35

Lock Kit | Includes 35 to 35b

709000818

$265.00

35a

Fuel Cap kit with Key

219800405

$175.00

35b

Ignition Switch | Includes 35b to 35b2

710007316

$296.00

35b1

Ignition Key Kit | Includes 35b1 to 35b1a

710004408

$63.00

35b1a

Key Sleeve

710003597

$26.00

35b2

DESS Antenna

219800373

$60.00

40a

Elbow Fitting 90°

293710105

$10.58

40b

Fuel Line 7.9 mm, Meter

709000264

$16.00

40c

Oetiker Clamp

293650140

$2.15

40d

Fuel Line 7.9 mm, Meter

709000265

$13.00

40f

Fuel Filter

513034047

$23.05

40g

Hose 7,94 Mm Id X 3000 Mm

219800602

$49.00

40h

Female Quick Fitting Ass'y

709000684

$15.00

40j

Y Fitting

513034117

$6.02

40k

Formed Hose

709001201

$23.00

40m

Quick Connect Pipe Fitting

293710192

$12.00

40n

Tubing 16 Mm 1000Mm Long

219704408

$6.23

40p

Tubing 16 Mm 1000Mm Long

219704408

$6.23

50

Filler Neck Hose

275501196

$26.00

60a

Bleed Valve

709000443

$69.20

60b

Formed Hose

709000566

$13.00

60c

Vapor Canister

709000090

$87.66

60d

Hose 3000Mm Long

219704612

$79.97

60f

Formed Hose

709000567

$29.00

60g

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

60h

Crimp Clamp, 15.3-706R

293650047

$2.64

60j

Oetiker Gear Clamp

293650025

$2.46

60k

Oetiker Clamp

293650140

$2.15

60m

Was 409901800 Tubing (13 mm)

219704400

$9.40

75

Oetiker Clamp

293650046

$2.33

80

Hex. Flange Screw M6 X 25

207662544

$0.53

100

Bushing

709001287

$3.00

101

Bushing

709001287

$3.00

102

Bushing

709001287

$3.00

103

Bushing

709001287

$3.00

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

111

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

112

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

113

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

120

Tork Screw M6 X 16

250000534

$1.74

140

Universal Spring Clamp

513033029

$5.11

150

Norma Clamp

293650081

$9.87

160

Formed Hose

709000570

$32.00

200

Open Clamp

513033047

$4.88

250

Ignition Switch Cap

710004182

$13.00

260

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

270

Switch Support

710001365

$21.00

340

Hose Support

709000571

$4.60

345

Hose Support

709000571

$4.60

350

Hose Support

709000571

$4.60

570

Formed Hose

709000813

$35.00

580

Oetiker Clamp

293650011

$2.46

700

Air Filter

709000524

$46.12

710

Spring Clamp

513033865

$4.00

730

Tuflock Phillips Plastic Screw

414745900

$1.30
