Partiron

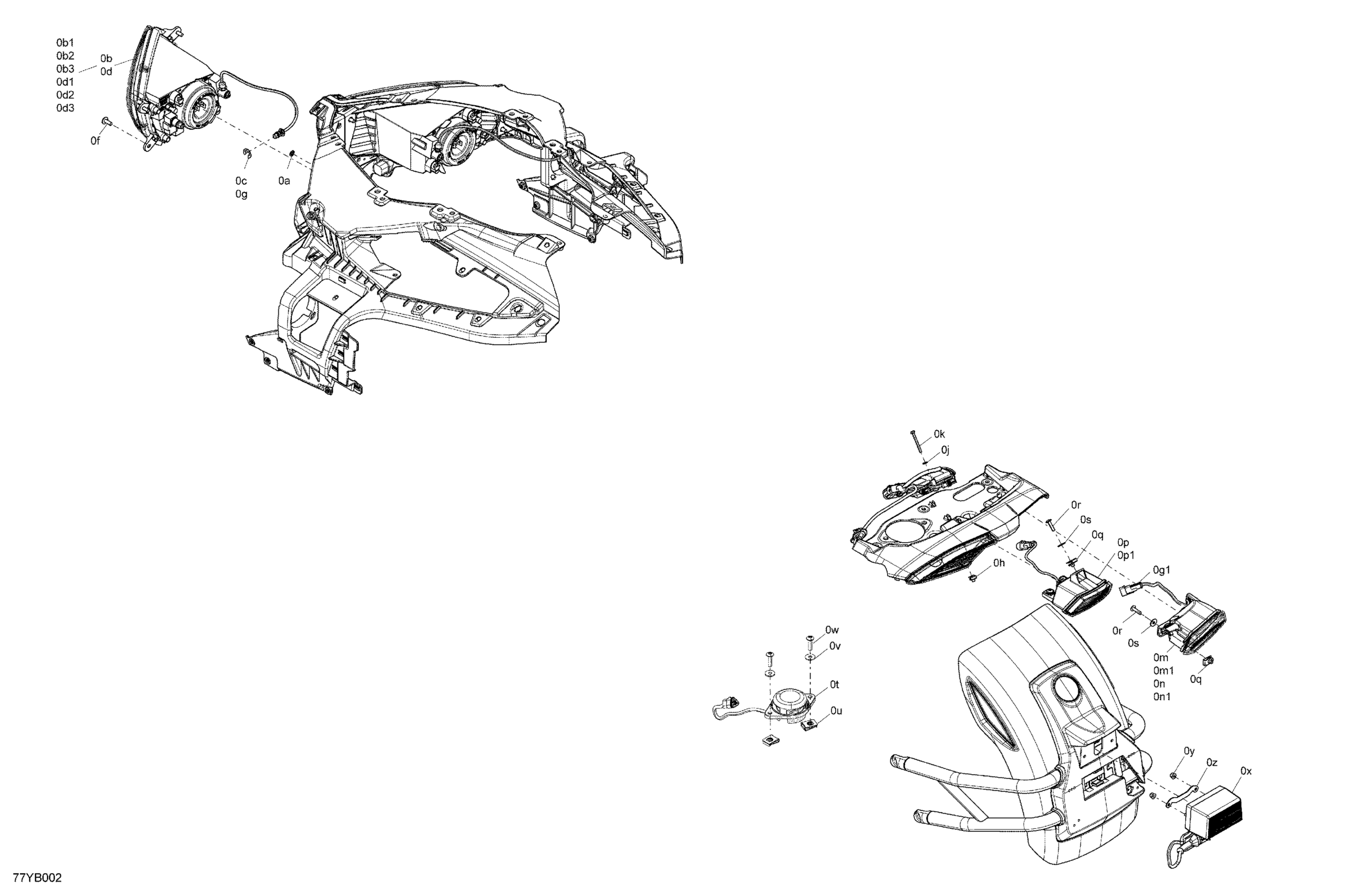

Can-Am F3 - Steel Black Metallic, 2022 Electric - Vehicle Lighting Diagram

#

Description
Price

0a

Push Nut

250001189

$1.37

0b

LH Headlight | Includes 0b to 0b3

710006997

$239.99

0b1

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

0b2

Rubber Cap Protector

219800280

$19.49

0b3

Spring

219800281

$3.49

0c

E-Circlip

293370013

$0.65

0d

RH Headlight | Includes 0d to 0d3

710006998

$239.99

0d1

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

0d2

Rubber Cap Protector

219800280

$19.49

0d3

Spring

219800281

$3.49

0f

Torx Truss Screw M6 X 16

250000721

$1.69

0g

E-Circlip

293370013

$0.65

0g1

MODULE_TURN SIGNAL - Call your local BRP dealership

710007701

Unavailable

0h

Extruded Panel Nut M4 X 0.7

250100143

$8.49

0j

Flat Washer 4 mm, Stainless

234041600

$1.15

0k

Hex. Screw M4 X 40

207144060

$4.44

0m

LH Tail Light | Includes 0h to 0h1

710007001

$58.49

0m1

Flasher Bulb

219800304

$6.66

0n

RH Tail Light | Includes 0j to 0j1

710007003

$61.49

0n1

Flasher Bulb

219800304

$6.66

0p

Back-Up Light | Includes 0k to 0k1

710007005

$70.99

0p1

Bulb 12V 10W

219800322

$8.68

0q

Panel Nut M5 X 0.8

250000958

$4.23

0r

Torx Truss Screw M5 X 20

250000715

$2.11

0s

Stainless Steel Flat Washer M5

234052670

$1.01

0t

Passenger Detection Switch

710008103

$76.99

0u

Panel Nut M6 X 1.0

250100208

$1.46

0v

Stainless Steel Flat Washer

234062670

$2.11

0w

Torx Truss Screw M6 X 25

250000807

$2.11

0x

License Plate Light

710003348

$70.99

0y

Elastic Flange Nut M5

233251494

$2.11

0z

Plate

710004815

$18.49
