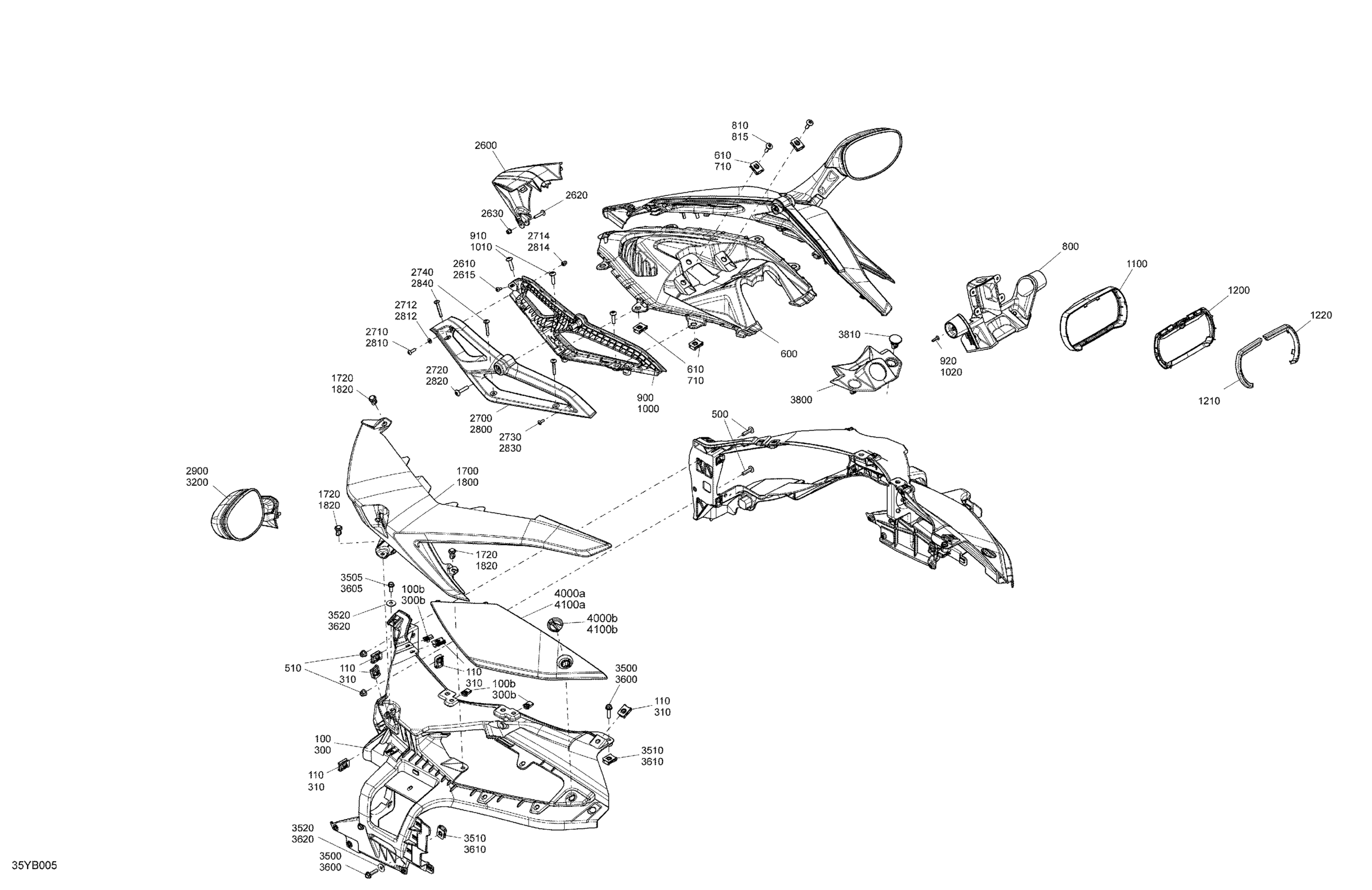

Can-Am F3 - Steel Black Metallic, 2022 Body - Console Diagram

#

Description
Price

100

LH Console Support | Included 100 to 100b

708400170

$100.00

100b

Panel Nut M5 X 0.8

250000958

$3.48

110

Panel Nut M6 X 1.0

250100208

$1.07

300

RH Console Support | Included 300 to 300b

708400171

$105.00

300b

Panel Nut M5 X 0.8

250000958

$3.48

310

Panel Nut M6 X 1.0

250100208

$1.07

500

Torx Screw M6 X 25

250000758

$1.74

510

Hex. Flange Elastic Nut M6

233261494

$1.26

600

Upper Fairing

708400208

$37.00

610

Panel Nut M6 X 1.0

250100208

$1.07

710

Panel Nut M6 X 1.0

250100208

$1.07

800

Speedometer Support

705013090

$15.00

810

Torx Screw M6 X 20

250000722

$1.34

815

Torx Screw M6 X 20

250000722

$1.34

900

LH Slider Support

708400053

$35.00

910

Torx Truss Screw M6 X 25

250000807

$1.74

920

Torx-Truss Pt K40 X 16

250000759

$1.74

1000

RH Slider Support

708400054

$38.00

1010

Torx Truss Screw M6 X 25

250000807

$1.74

1020

Torx-Truss Pt K40 X 16

250000759

$1.74

1100

Rear Cluster Cap

709402092

$13.83

1200

Gauge Trim

709402742

$12.68

1210

Deep Black, LH Trim Gauge

709402210

$27.66

1220

Deep Black, RH Trim Gauge

709402211

$27.66

1700

Deep Black, LH Consol Fairing

708400341

$230.00

1720

Tuflok Plastic Rivet

293150230

$1.21

1800

Deep Black, RH Consol Fairing

708400339

$230.00

1820

Tuflok Plastic Rivet

293150230

$1.21

2600

Black Deep Nose Fairing

708400011

$38.00

2610

Torx Truss PT K40 x 12

250001131

$1.74

2615

Torx Truss PT K40 x 12

250001131

$1.74

2620

Torx Screw M5 X 25

250000762

$1.74

2630

Elastic Flange Nut M5

233251494

$1.74

2700

LH Upper Console Header

708400016

$28.00

2710

Torx Truss Screw M5 X 16, T25

250000578

$1.74

2712

Flat Washer M5

234051670

$1.74

2714

Cap Nut M5

250100152

$2.00

2720

Stainless, Torx Screw M6 X 30

250000842

$1.74

2730

Torx Truss PT K40 x 12

250001131

$1.74

2740

Torx Screw Nylon

250000732

$1.74

2800

RH Upper Console Header

708400017

$28.00

2810

Torx Truss Screw M5 X 16, T25

250000578

$1.74

2812

Flat Washer M5

234051670

$1.74

2814

Cap Nut M5

250100152

$2.00

2820

Stainless, Torx Screw M6 X 30

250000842

$1.74

2830

Torx Truss PT K40 x 12

250001131

$1.74

2840

Torx Screw Nylon

250000732

$1.74

2900

LH Housing Rear View Mirror Ass'y

705015049

$275.00

3200

RH Housing Rear View Mirror Ass'y

705015050

$275.00

3500

Hex. Flange Screw M6 X 25

250000793

$1.74

3505

Hex. Flange Screw M6 X 16

210261650

$1.22

3510

Panel Nut M6 X 1.0

250100208

$1.07

3520

Flat washer M6

250200164

$0.83

3600

Hex. Flange Screw M6 X 25

250000793

$1.74

3605

Hex. Flange Screw M6 X 16

210261650

$1.22

3610

Panel Nut M6 X 1.0

250100208

$1.07

3620

Flat washer M6

250200164

$0.83

3800

Switch Bezel

708400205

$15.00

3810

Cap

708400046

$4.00

4000a

Black Polycarbonate, LH Acces Panel

708400238

$23.00

4000b

Cover Latch Quarter Turn

708400065

$2.99

4100a

Black Polycarbonate, RH Acces Panel

708400239

$23.00

4100b

Cover Latch Quarter Turn

708400065

$2.99
