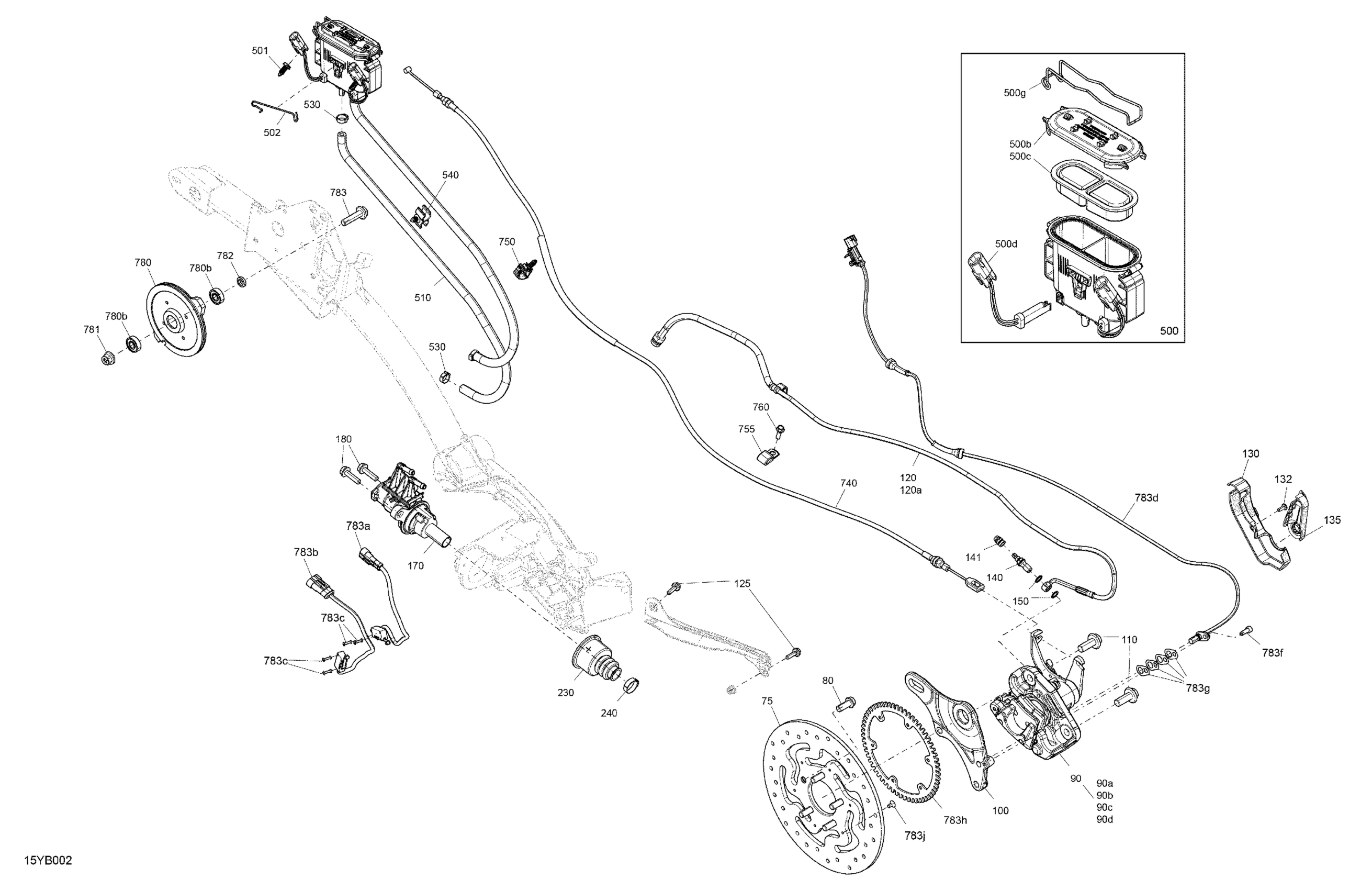

Can-Am F3 - Steel Black Metallic, 2022 Mechanic - Rear Brake Diagram

#

Description
Price

75

Rear Brake Disk

705601632

$244.99

80

Hex. Flange Screw M10 X 25

250001054

$12.10

90

Rear Caliper | Includes 90 to 90d

705600989

$497.99

90a

Brake Pad Kit

219800239

$79.49

90b

Spring/Pin/Clip Kit

219800240

$35.99

90c

Rear Cable Support Kit

219800241

$41.49

90d

Rear Dust Cover

219800242

$32.99

100

Support Brake Caliper Rear

705601747

$56.99

110

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.82

120

Flexible Brake Line Rear | Includes 120 to 120a

705601674

$74.99

120a

Clamp

293650256

$5.00

125

Hex. Flange Screw M6 X 20

207662054

$0.96

130

Caliper Trim Cap

705601400

$10.43

132

Torx Screw 24 X 0.5

250000821

$1.90

135

Caliper Trim Cap

705601406

$10.43

140

Banjo Bolt/ Bleeder

705601201

$17.13

141

Bleeder Bolt Cap

705601190

$4.15

150

Washer

414920600

$1.75

170

Tandem Cylinder Master

705600722

$369.99

180

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

230

Bellow

705600716

$12.10

240

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

500

Master Cylinder Reservoir Ass'y | Includes 500 to 500h

705601526

$105.19

500b

Diaphragm Cover Ass'y

219800350

$16.39

500c

Diaphragm Cover Ass'y

219800350

$16.39

500d

Oil Level Sensor

705601073

$49.22

500g

Spindle Lock

705601294

$13.51

500h

Push Nut | Not shown

211100002

$1.67

501

Connector Holder

710002033

$3.12

502

Stopper Spring

705209087

$6.03

510

Formed Hose

705601236

$17.49

530

Crimp Clamp, 15.3-706R

293650047

$3.03

540

Hose Support

709000571

$4.30

740

Parking Brake Cable

707001375

$66.99

750

Harness Support

709000633

$7.19

755

Open Clamp

515175507

$1.69

760

Hexagonal Head Screw

210262050

$2.00

780

Pulley Cable Ass'y | Includes 780 to 780b

705601973

$80.57

780b

Ball Bearing

705601974

$6.82

781

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

782

Bushing

293900087

$6.73

783

Hex. Flange Screw M10 X 40 | Includes 783 to 783j

207604054

$7.27

783a

Brake Light Switch Ass'y

710003412

$46.49

783b

Brake Pressure Switch Ass'y

710001379

$40.27

783c

Pop Rivet

293150150

$1.85

783d

Speed Sensor

710006982

$83.99

783f

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.57

783g

Shim

710002023

$2.85

783h

Sensor Wheel

705601372

$46.99

783j

Socket Head Screw M5 X 10

205851036

$6.77
