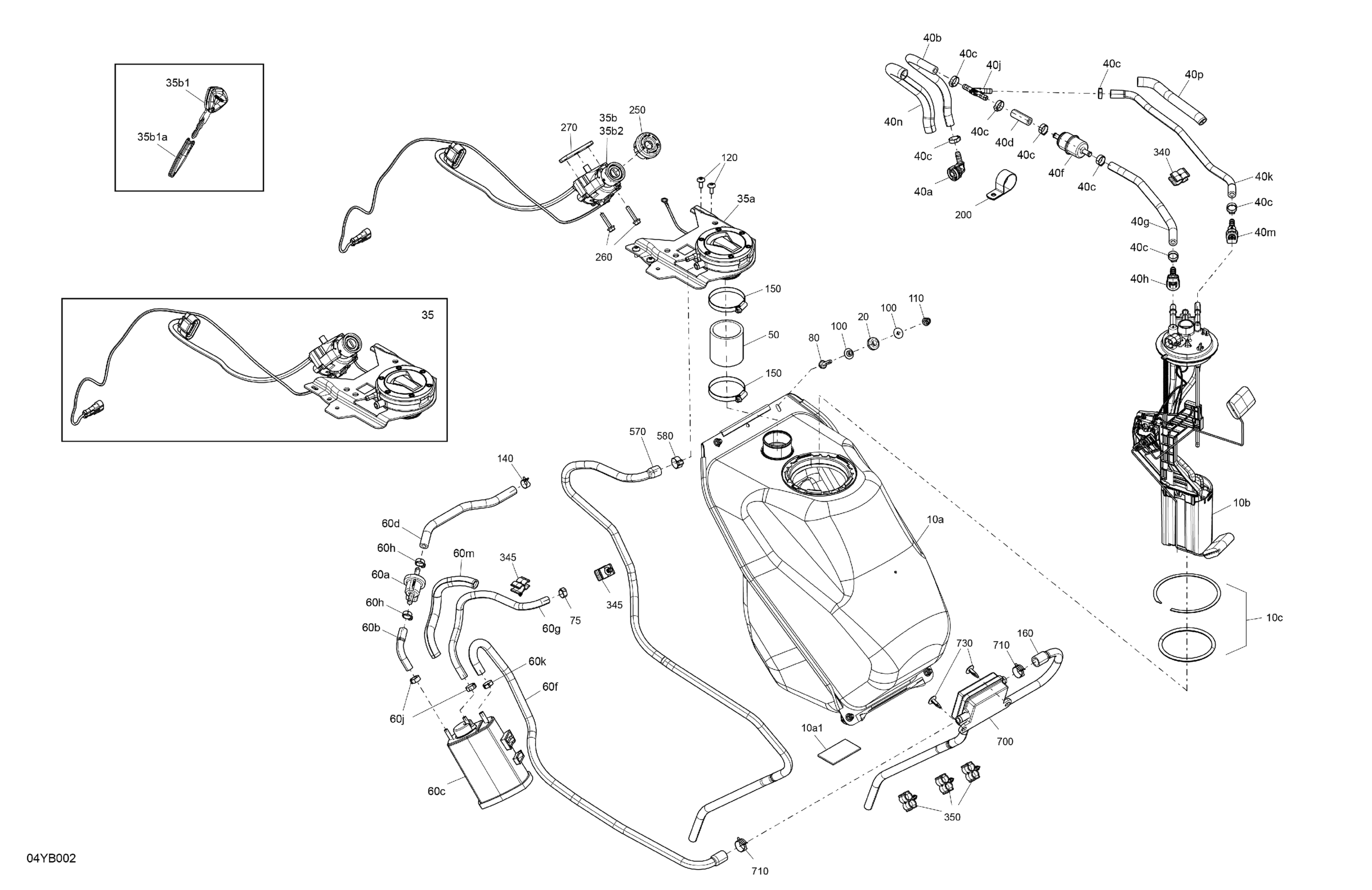

Can-Am F3 - Steel Black Metallic, 2022 Engine - Fuel Diagram

#

Description
Price

10a

Fuel Tank | Includes 10a to 10a1

219800366

$599.99

10a1

CARPET - Call your local BRP dealership

709000553

Unavailable

10b

Fuel Pump Module

709000779

$625.49

10c

Seal Kit

219800248

$38.99

20

Grommet

709000582

$4.69

35

Lock Kit | Includes 35 to 35b

709000818

$264.99

35a

Fuel Cap kit with Key

219800405

$174.99

35b

Ignition Switch | Includes 35b to 35b2

710007316

$296.49

35b1

Ignition Key Kit | Includes 35b1 to 35b1a

710004408

$63.49

35b1a

Key Sleeve

710003597

$26.49

35b2

DESS Antenna

219800373

$60.49

40a

Elbow Fitting 90°

293710105

$14.22

40b

Fuel Line 7.9 mm, Meter

709000264

$15.99

40c

Oetiker Clamp

293650140

$2.69

40d

Fuel Line 7.9 mm, Meter

709000265

$12.99

40f

Fuel Filter

513034047

$21.99

40g

Hose 7,94 Mm Id X 3000 Mm

219800602

$48.99

40h

Female Quick Fitting Ass'y

709000684

$15.49

40j

Y Fitting

513034117

$6.14

40k

Formed Hose

709001201

$23.49

40m

Quick Connect Pipe Fitting

293710192

$12.49

40n

Tubing 16 Mm 1000Mm Long

219704408

$7.49

40p

Tubing 16 Mm 1000Mm Long

219704408

$7.49

50

Filler Neck Hose

275501196

$25.99

60a

Bleed Valve

709000443

$73.99

60b

Formed Hose

709000566

$12.99

60c

Vapor Canister

709000090

$90.99

60d

Hose 3000Mm Long

219704612

$84.99

60f

Formed Hose

709000567

$28.99

60g

Hose 6.35Mm 5000Mm Long

219704611

$194.99

60h

Crimp Clamp, 15.3-706R

293650047

$3.29

60j

Oetiker Gear Clamp

293650025

$3.09

60k

Oetiker Clamp

293650140

$2.69

60m

Was 409901800 Tubing (13 mm)

219704400

$14.49

75

Oetiker Clamp

293650046

$2.89

80

Hex. Flange Screw M6 X 25

207662544

$0.64

100

Bushing

709001287

$2.89

110

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

120

Tork Screw M6 X 16

250000534

$2.11

140

Universal Spring Clamp

513033029

$5.39

150

Norma Clamp

293650081

$12.18

160

Formed Hose

709000570

$31.99

200

Open Clamp

513033047

$5.19

250

Ignition Switch Cap

710004182

$12.63

260

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

270

Switch Support

710001365

$20.99

340

Hose Support

709000571

$4.65

345

Hose Support

709000571

$4.65

350

Hose Support

709000571

$4.65

570

Formed Hose

709000813

$34.99

580

Oetiker Clamp

293650011

$3.09

700

Air Filter

709000524

$45.99

710

Spring Clamp

513033865

$4.49

730

Tuflock Phillips Plastic Screw

414745900

$1.69
