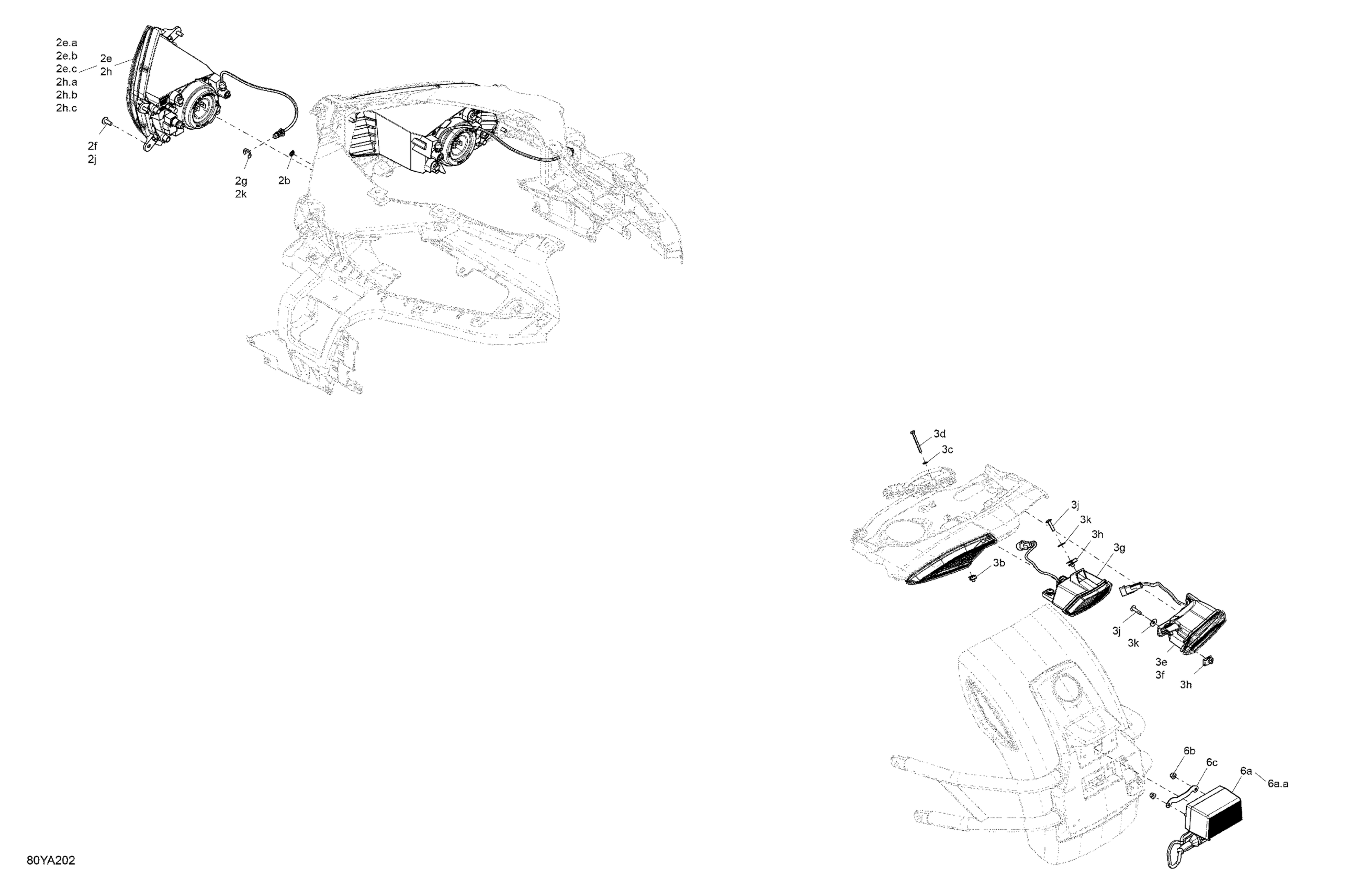

Can-Am F3 - Steel Black Metallic, 2021 Electric - Vehicle Lighting - North America Diagram

#

Description
Price

2b

Push Nut

250100034

$1.11

2e

LH Headlight | Includes 0b to 0b3

710006997

$239.99

2e.a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

2e.b

Rubber Cap Protector

219800280

$17.13

2e.c

Spring

219800281

$3.13

2f

Torx Truss Screw M6 X 16

250000721

$1.39

2g

E-Circlip

293370013

$0.60

2h

RH Headlight | Includes 0d to 0d3

710006998

$239.99

2h.a

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

2h.b

Rubber Cap Protector

219800280

$17.13

2h.c

Spring

219800281

$3.13

2j

Torx Truss Screw M6 X 16

250000721

$1.39

2k

E-Circlip

293370013

$0.60

3b

Extruded Panel Nut M4 X 0.7

250100143

$6.77

3c

Flat Washer 4 mm, Stainless

234041600

$0.91

3d

Hex. Screw M4 X 40

207144060

$4.15

3e

LH Tail Light | Includes 0h to 0h1

710007001

$58.49

3f

RH Tail Light | Includes 0j to 0j1

710007003

$61.49

3g

Back-Up Light | Includes 0k to 0k1

710007005

Unavailable

3h

Panel Nut M5 X 0.8

250000958

$3.48

3j

Torx Truss Screw M5 X 20

250000715

$2.00

3k

Stainless Steel Flat Washer M5

234052670

$0.83

6a

License Plate Light

710003348

$70.99

6a.a

Bulb 12V 10W | Not Shown

415129261

$2.46

6b

Elastic Flange Nut M5

233251494

$1.74

6c

Plate

710004815

$18.49
