Description

Price

6y

Cable Support

710004279

$4.19

8a

Battery, 12 Volts, 21 Amperes

410922962

$194.99

8a1

Battery Bolt Kit

250000282

$7.29

8b

Latch

520000528

$7.69

8c

Battery Holder

710002893

$17.49

8d

Starter Relay

710007777

$48.49

8e

Hex. Flange Screw M6 X 12

210261250

$1.90

8f

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

219800502

$1,209.99

8f1

Shock Damper

710003279

$10.49

8h

VCM Harness Protector

710003996

$2.79

8j

PBM Module Ass'y

710005887

$479.99

8k

Torx Screw M4 X 16

250000750

$1.68

8m

Elastic Stop Nut M4

232541484

$0.74

8n

Flat Washer 4 mm

234041480

$0.74

8p

Horn

710004940

$29.49

8q

Horn Support

710005769

$15.99

8r

Torx Truss M8 X 25

250000874

$2.11

8s

Hex. Flange Elastic Nut M8

233281414

$1.47

8t

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

8u1

Reverse Cable

710002889

$31.99

8u2

Actuator

710011269

$64.99

8u3

Elastic Stop Nut M4

232541414

$0.58

8u4

Socket Head Screw M4 X 40

205444056

$2.11

8u5

Pop Rivet 5/32

390403000

$0.40

8u6

Reverse Actuator Support

710005642

$30.99

8u7

Clip

270000141

$11.49

8u8

Pop Rivet 3/16"

390402400

$0.35

8v

Hex. Flange Screw M6 X 12

210261250

$1.90

8w

Actuator Motor

710007256

$227.99

8x

Hex. Flange Screw M6 X 20

207662054

$1.01

8y

Elastic Stop Nut M6

232561434

$1.99

8z

Brake Pressure Switch Ass'y

710001379

$43.49

8aa

Pop Rivet

293150150

$2.40

8ab

Yaw Rate Sensor

710005658

$179.99

8ac

Hex. Flange Screw M6 X 16

210261650

$1.67

1150

Dess Module

710004916

$179.99

1153

Wire Support

710004308

$13.49

1154

Hex. Forming Screw M6 X 10

210261050

$1.69

1155

Hexagonal Head Screw

210262050

$2.11

1156

Flat Washer 6 mm

234062410

$0.77

1160

Rubber Bumper

293830091

$8.29

2000

Starter Cable Ass'y

710006399

$84.99

2005

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

2020

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

2021

Serrated Lock Washer 8 mm

234481608

$1.15

2160

Stainless Flat Washer M6

234061600

$0.33

2161

Elastic Stop Nut M6

232561434

$1.99

2170

Lock Washer Helical M6

234161601

$1.15

2171

Hex. Nut M6

232061600

$1.15

2250

Pos Cable

710005026

$84.99

2260

Hex. Nut M6

232061600

$1.15

2261

Lock Washer Helical M6

234161601

$1.15

2270

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2271

Hex. Nut M6

232061600

$1.15

2272

Lock Washer Helical M6

234161601

$1.15

2280

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

2281

Hex. Nut M6

232061600

$1.15

2282

Lock Washer Helical M6

234161601

$1.15

4010

Diagnostic Harness

710006986

$25.99

4042

Lock

710001222

$2.09

4044

Pop Rivet 3/16"

390402400

$0.35

4045

Clip

270000141

$11.49

4052

Tuflok Plastic Rivet

293150230

$1.47

4065

Support Cable

293750083

$2.29

4070

Rubber Pad

709000401

$9.79

4074

Support

710004613

$8.29

4075

Connector Plug

710004901

$13.22

4076

Connector Plug

710004901

$13.22

4077

Wire Support

710004669

$6.79

4090

Harness Holder

710004794

$3.39

4095

Tuflok Plastic Rivet

293150230

$1.47

4200

Harness Holder

710004931

$1.59

4210

Tuflock Phillips Plastic Screw

414745900

$1.69

4220

Tie Rap

710004424

$6.29

4225

Tuflock Phillips Plastic Screw

414745900

$1.69

4230

Tie Rap

710004424

$6.29

4235

Tuflock Phillips Plastic Screw

414745900

$1.69

4360

Fuse Holder Support

710004472

$10.01

4361

Hex. Flange Screw M6 X 12

210261250

$1.90

4380

Cable Support

710004299

$4.19

4800

Tail Harness

710006428

$18.49

4810

Connector With Cap

710004456

$12.49

5001

Lock Washer 8 mm, Stainless

234181601

$0.55

5002

Hex. Nut M8

232081414

$0.72

5400

Fuel Tank Cable

710006436

$19.49

5405

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

5410

Lock Washer Serrated M6

250200041

$1.15

5415

Serrated Lock Washer 8 mm

234481608

$1.15

5420

Washer

250200111

$2.11

6001

Wiring Harness Adaptor

710007190

$20.99

8604

Connector Holder

710002033

$3.39

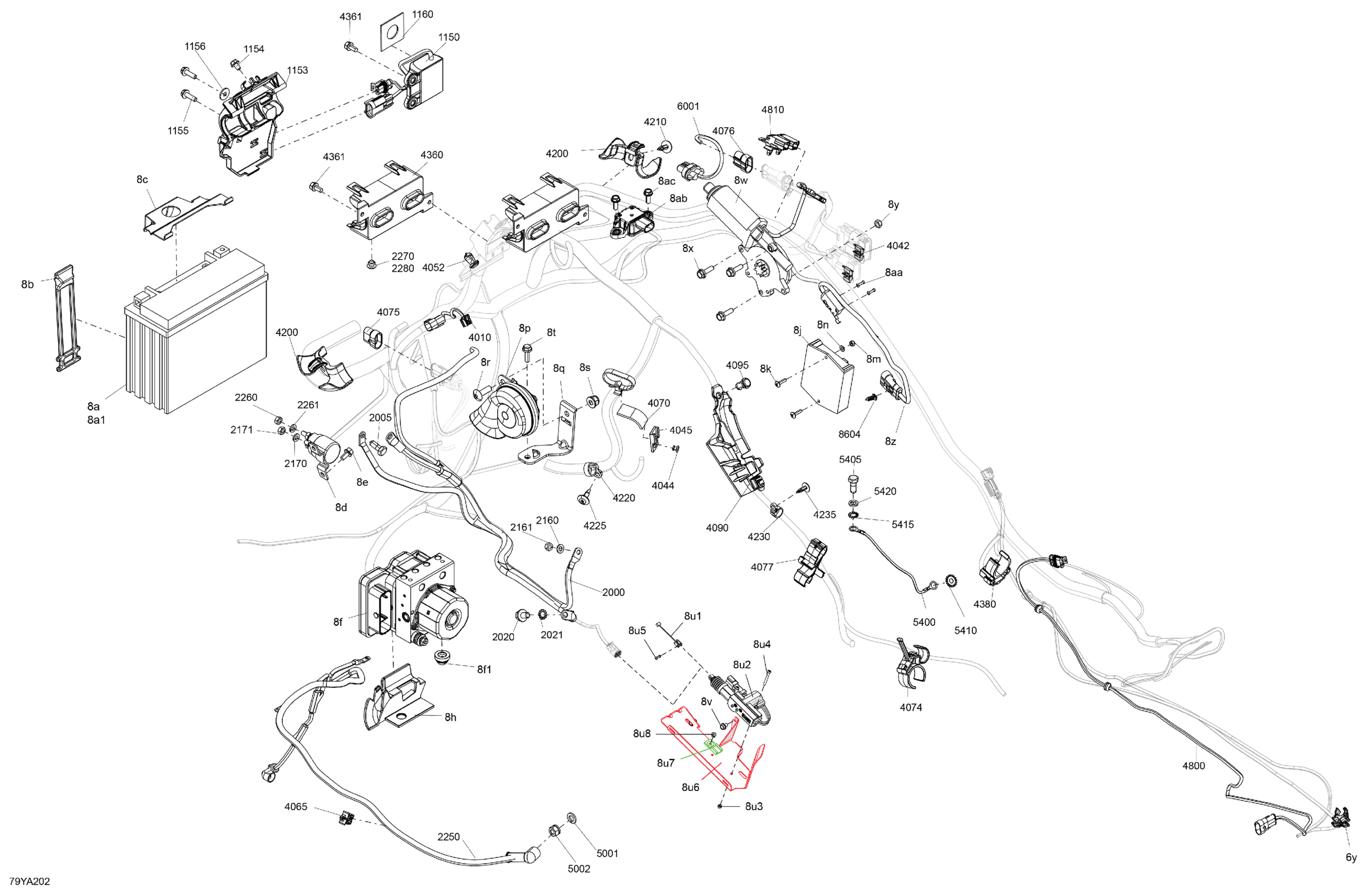

Can-Am On-Road 001 - F3 - Steel Black Metallic, 2021 08- Electric - System Diagram

Cable Support

Battery, 12 Volts, 21 Amperes

Battery Bolt Kit

Latch

Battery Holder

Starter Relay

Hex. Flange Screw M6 X 12

VCM Wet Prog & Grommet Module Kit | Includes 8h to 8h2

Shock Damper

VCM Harness Protector

PBM Module Ass'y

Torx Screw M4 X 16

Elastic Stop Nut M4

Flat Washer 4 mm

Horn

Horn Support

Torx Truss M8 X 25

Hex. Flange Elastic Nut M8

Hex. Flange Screw M6 X 20, Scotch Grip

Reverse Cable

Actuator

Elastic Stop Nut M4

Socket Head Screw M4 X 40

Pop Rivet 5/32

Reverse Actuator Support

Clip

Pop Rivet 3/16"

Hex. Flange Screw M6 X 12

Actuator Motor

Hex. Flange Screw M6 X 20

Elastic Stop Nut M6

Brake Pressure Switch Ass'y

Pop Rivet

Yaw Rate Sensor

Hex. Flange Screw M6 X 16

Dess Module

Wire Support

Hex. Forming Screw M6 X 10

Hexagonal Head Screw

Flat Washer 6 mm

Rubber Bumper

Starter Cable Ass'y

Hex. Flange Screw M8 X 20, Scotch Grip

Hex. Flange Screw M8 X 12, Scotch Grip

Serrated Lock Washer 8 mm

Stainless Flat Washer M6

Elastic Stop Nut M6

Lock Washer Helical M6

Hex. Nut M6

Pos Cable

Hex. Nut M6

Lock Washer Helical M6

Socket Head Screw M6 X 10, Scotch Grip

Hex. Nut M6

Lock Washer Helical M6

Socket Head Screw M6 X 10, Scotch Grip

Hex. Nut M6

Lock Washer Helical M6

Diagnostic Harness

Lock

Pop Rivet 3/16"

Clip

Tuflok Plastic Rivet

Support Cable

Rubber Pad

Support

Connector Plug

Connector Plug

Wire Support

Harness Holder

Tuflok Plastic Rivet

Harness Holder

Tuflock Phillips Plastic Screw

Tie Rap

Tuflock Phillips Plastic Screw

Tie Rap

Tuflock Phillips Plastic Screw

Fuse Holder Support

Hex. Flange Screw M6 X 12
