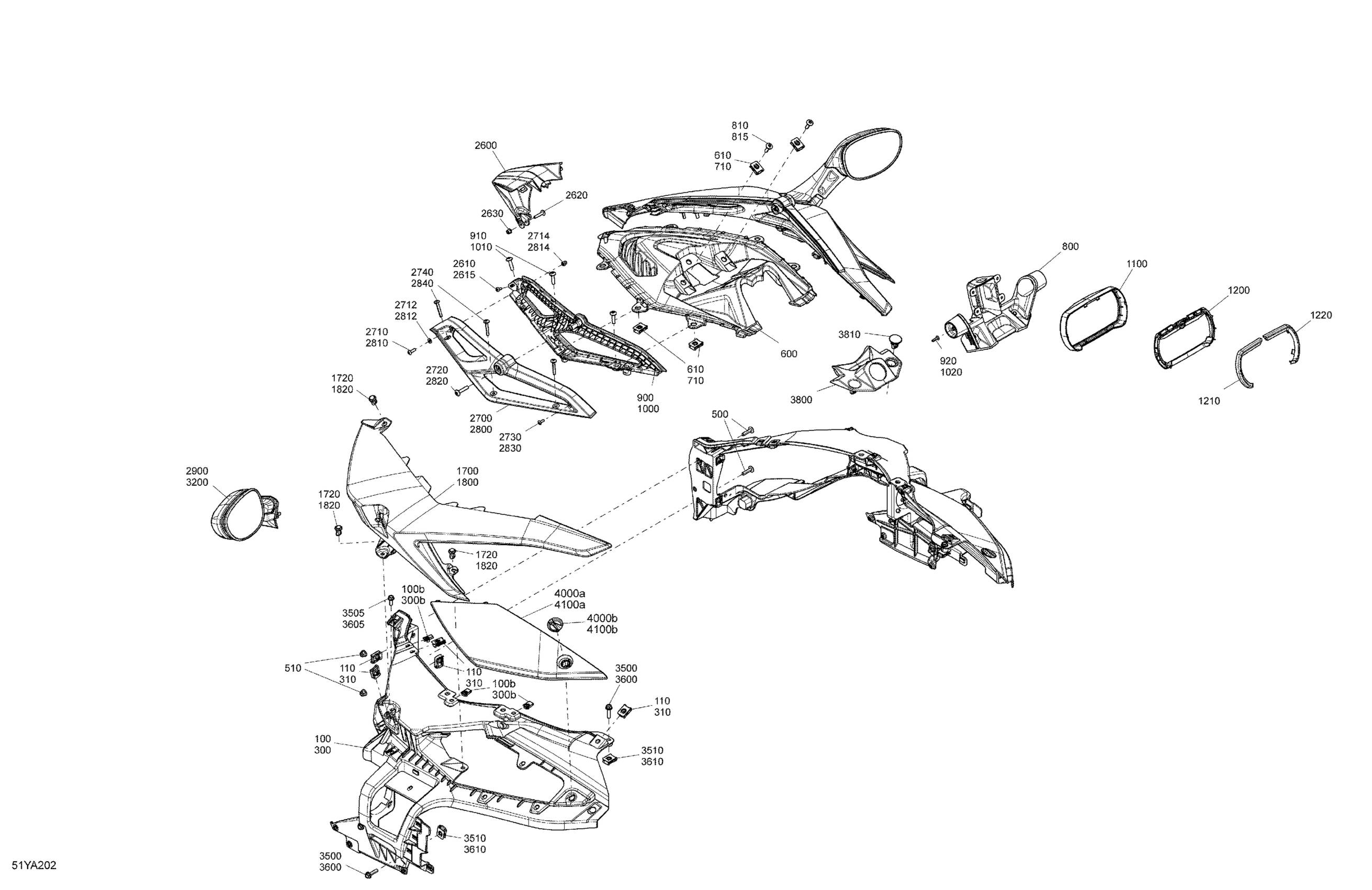

Can-Am F3 - Steel Black Metallic, 2021 Body - Console Diagram

#

Description
Price

100

LH Console Support | Included 100 to 100b

708400170

$99.99

100b

Panel Nut M5 X 0.8

250000958

$4.23

110

Panel Nut M6 X 1.0

250100208

$1.46

300

RH Console Support | Included 300 to 300b

708400171

$104.99

300b

Panel Nut M5 X 0.8

250000958

$4.23

310

Panel Nut M6 X 1.0

250100208

$1.46

500

Torx Screw M6 X 25

250000758

$2.11

510

Hex. Flange Elastic Nut M6

233261494

$1.58

600

Upper Fairing

708400208

$36.99

610

Panel Nut M6 X 1.0

250100208

$1.46

710

Panel Nut M6 X 1.0

250100208

$1.46

800

Speedometer Support

705013090

$14.99

810

Torx Screw M6 X 20

250000722

$1.68

815

Torx Screw M6 X 20

250000722

$1.68

900

LH Slider Support

708400053

$34.99

910

Torx Truss Screw M6 X 25

250000807

$2.11

920

Torx-Truss Pt K40 X 16

250000759

$2.11

1000

RH Slider Support

708400054

$37.99

1010

Torx Truss Screw M6 X 25

250000807

$2.11

1020

Torx-Truss Pt K40 X 16

250000759

$2.11

1100

Rear Cluster Cap

709402092

$13.99

1200

Gauge Trim

709402742

$13.99

1210

Deep Black, LH Trim Gauge

709402210

$28.99

1220

Deep Black, RH Trim Gauge

709402211

$28.99

1700

Deep Black, LH Consol Fairing

708400341

$229.99

1720

Tuflok Plastic Rivet

293150230

$1.47

1800

Deep Black, RH Consol Fairing

708400339

$229.99

1820

Tuflok Plastic Rivet

293150230

$1.47

2600

Black Deep Nose Fairing

708400011

$37.99

2610

Torx Truss PT K40 x 12

250001131

$2.11

2615

Torx Truss PT K40 x 12

250001131

$2.11

2620

Torx Screw M5 X 25

250000762

$2.11

2630

Elastic Flange Nut M5

233251494

$2.11

2700

LH Upper Console Header

708400016

$27.99

2710

Torx Truss Screw M5 X 16, T25

250000578

$2.11

2712

Flat Washer M5

234051670

$2.11

2714

Cap Nut M5

250100152

$2.00

2720

Stainless, Torx Screw M6 X 30

250000842

$2.11

2730

Torx Truss PT K40 x 12

250001131

$2.11

2740

Torx Screw Nylon

250000732

$2.11

2800

RH Upper Console Header

708400017

$27.99

2810

Torx Truss Screw M5 X 16, T25

250000578

$2.11

2812

Flat Washer M5

234051670

$2.11

2814

Cap Nut M5

250100152

$2.00

2820

Stainless, Torx Screw M6 X 30

250000842

$2.11

2830

Torx Truss PT K40 x 12

250001131

$2.11

2840

Torx Screw Nylon

250000732

$2.11

2900

LH Housing Rear View Mirror Ass'y

705015049

$274.99

3200

RH Housing Rear View Mirror Ass'y

705015050

$274.99

3500

Hex. Flange Screw M6 X 25

250000793

$2.11

3505

Hex. Flange Screw M6 X 16

210261650

$1.67

3510

Panel Nut M6 X 1.0

250100208

$1.46

3600

Hex. Flange Screw M6 X 25

250000793

$2.11

3605

Hex. Flange Screw M6 X 16

210261650

$1.67

3610

Panel Nut M6 X 1.0

250100208

$1.46

3800

Switch Bezel

708400205

$14.67

3810

Cap

708400046

$3.89

4000a

Black Polycarbonate, LH Acces Panel

708400238

$22.99

4000b

Cover Latch Quarter Turn

708400065

$2.79

4100a

Black Polycarbonate, RH Acces Panel

708400239

$22.99

4100b

Cover Latch Quarter Turn

708400065

$2.79
