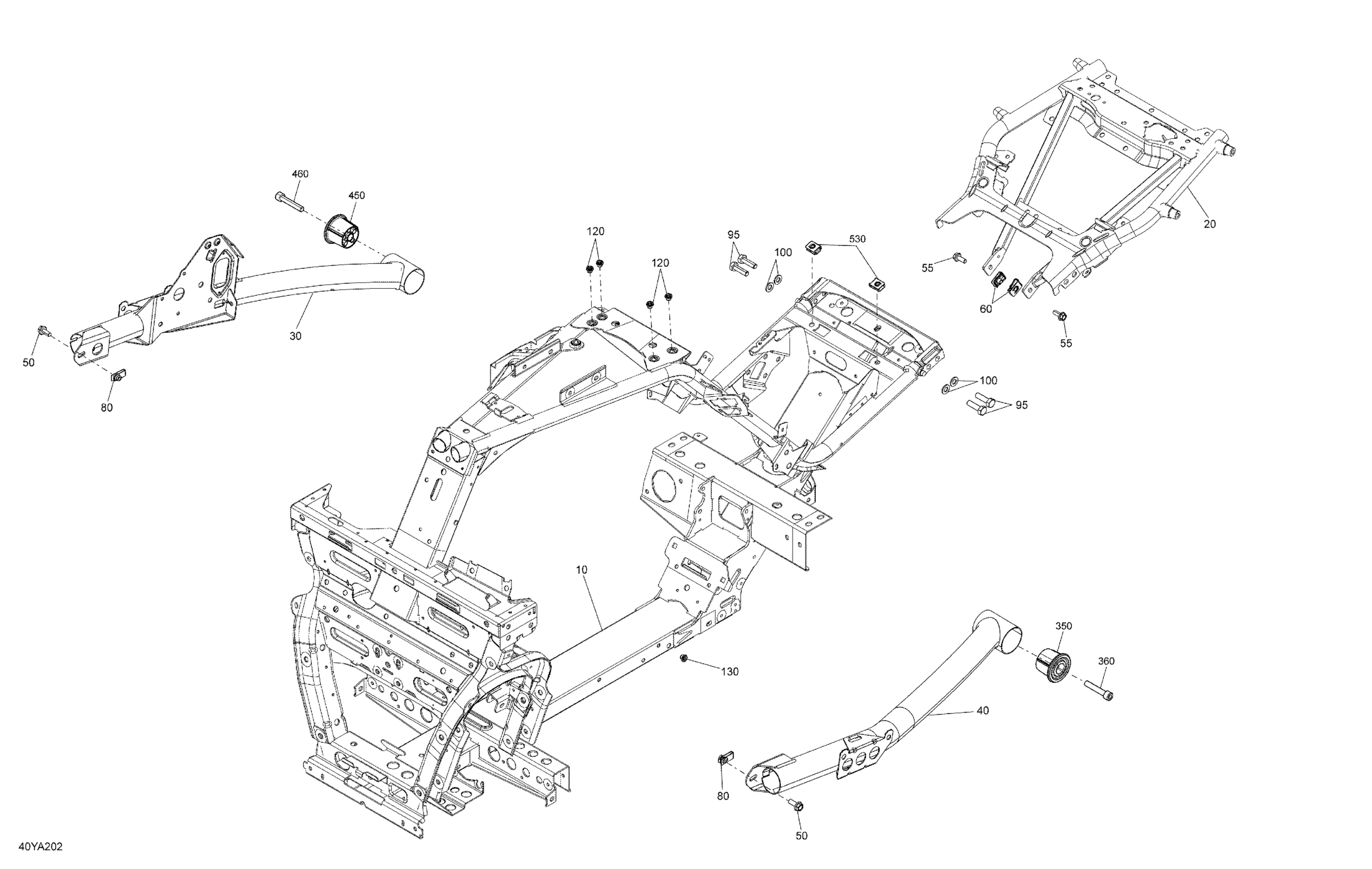

Can-Am F3 - Steel Black Metallic, 2021 Frame - System Diagram

Chassis | Included 10 to 10ag

705210350

Unavailable

Pop Rivet 3/16"

390402200

$0.35

Frame Extension Kit

219800410

$559.99

Deep Black, RH Upper Lateral Support

705204611

$349.99

Deep Black, LH Upper Lateral Support

705204616

$209.99

Hex Screw Washer Head M8 X 20

207582054

$3.17

Hex Screw Washer Head M8 X 20

207582054

$3.17

Panel Nut M8 X 1.25

250100069

$4.29

Panel Nut M8 X 1.25

250100118

$2.09

Hex. Screw M10 x 35 (Scotch Grip)

207303544

$1.69

Lock Washer Helical M10

234101411

$0.23

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Pivot Cap

705010202

$22.99

Socket Head Screw

205505560

$6.77

Pivot Cap

705010202

$22.99

Socket Head Screw

205505560

$6.77

Panel Nut M6 X 1.0

250100208

$1.46
